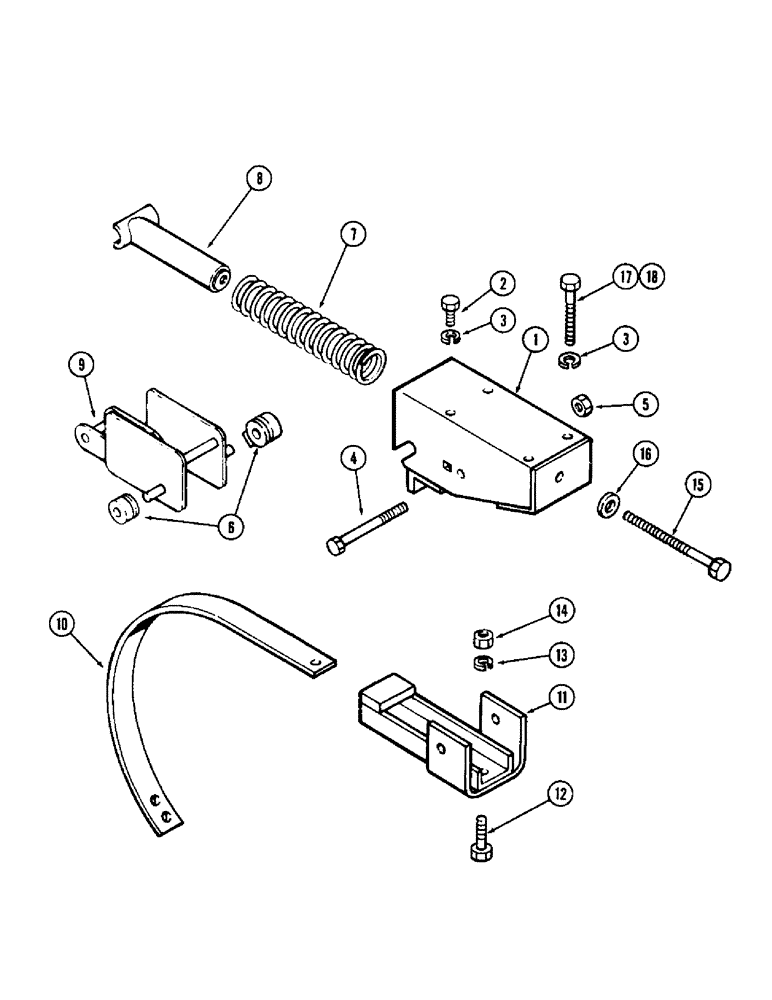

Запчасти Case IH 1900 (14) - TRIP ASSEMBLY

1

T57092

HOUSING - trip

1шт.

2

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

1шт.

5

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

6

T57326

BUSHING

- trip slot

2шт.

7

T57098

SPRING - trip

1шт.

8

T57095

PIPE

- spring

1шт.

9

T57325

LINK

TRIP LINK AND CAM ASSEMBLY

1шт.

10

T57097

SHANK

- 1 x 2 x 21" (25.4 x 50.8 x 533.4 mm)

1шт.

11

T57324

HOLDER

- shank

1шт.

12

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex (Grade 5)

1шт.

13

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

14

129-108

NUT,3/4"-10, G5

1шт.

15

T57202

BOLT

- 3/4 x 8 NC hex (Grade 5) to disassemble trip assembly

1шт.

16

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

1шт.

17

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

18

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

1шт.
