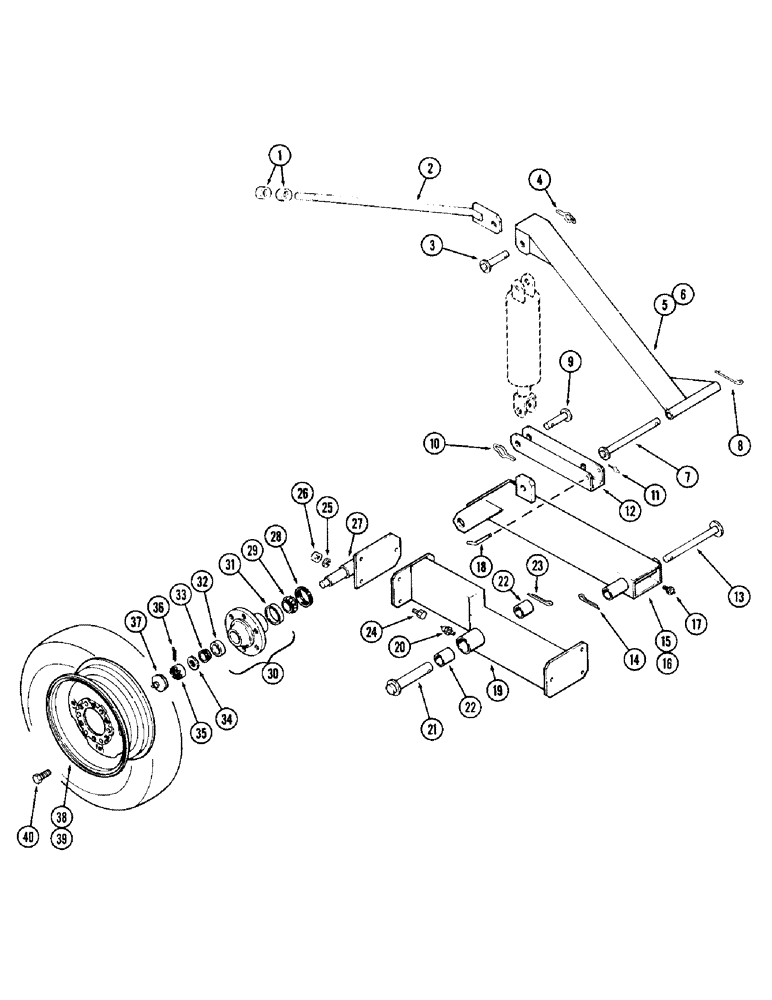

Запчасти Case IH 1900 (12) - TANDEM AXLE AND WHEELS

1

129-110

NUT,1"-8, G5

4шт.

2

T57105

ROD

2шт.

3

T57109

PIN - cylinder 1 x 4-7/8" (25.4 x 123.8 mm)

2шт.

4

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

2шт.

5

T57381

MEMBER

ARM - RH

1шт.

6

T57380

MEMBER

ARM - LH

1шт.

7

T57382

PIN

- arm 7/8 x 11-7/8 (22.2 x 301.6 mm)

2шт.

8

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

9

T57109

PIN - cylinder 1 x 4-7/8" (25.4 x 123.8 mm)

2шт.

10

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

2шт.

11

T28981

COTTER

2шт.

12

T57203

LOCK - transport

2шт.

13

T57099

PIN - arm 1-1/2 x 11-7/8" (38.1 x 301.6 mm)

2шт.

14

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

15

T57110

ARM - RH

1шт.

16

T57111

ARM - LH

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

2шт.

18

T57101

PIN - transport lock

2шт.

19

T57113

AXLE

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

2шт.

21

T57115

PIN

- axle 1-1/2 x 8-3/8" (38.1 x 212.7 mm)

2шт.

22

T57112

BUSHING

- axle pin

4шт.

23

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

24

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

26

129-107

NUT,5/8"-11, G5

12шт.

27

T57104

PLATE

- axle

4шт.

28

T39278

SEAL

- grease

4шт.

29

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing inner 1-1/2" ID (38.1 mm)

4шт.

30

T53229

HUB

ASSEMBLY - with cups

4шт.

31

H751370

BEARING CUP

CUP - bearing inner 2-9/16" OD (65.1 mm)

1шт.

32

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 mm)

1шт.

33

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 mm)

4шт.

34

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 10 gauge

4шт.

35

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

36

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

4шт.

37

T23707

CAP

- hub

4шт.

38

G57007

WHEEL

- 15 x 6" (381.0 x 152.4 mm)

4шт.

39

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 mm)

4шт.

40

T40045

WHEEL BOLT

BOLT - wheel

24шт.
