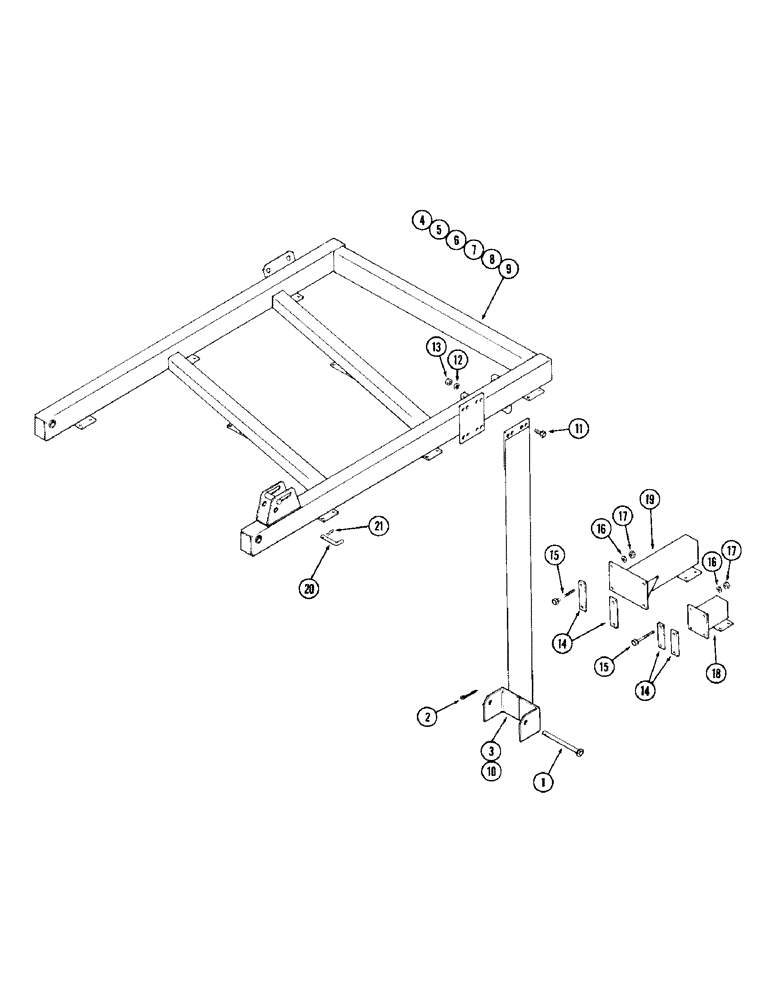

Запчасти Case IH 1900 (08) - WINGS AND EXTENSIONS

1

T57085

PIN - hinge hitch

2шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

3

T57084

DRAFT ARM - right wing 29-39 foot (8.8-11.9 m)

1шт.

4

T57072

FRAME - wing 4 foot (1.2 m) RH

1шт.

5

T57074

FRAME - wing 7 foot (2.1 m) RH

1шт.

6

T57076

FRAME - wing 10 foot (3.1 m) RH

1шт.

7

T57071

FRAME - wing 4 foot (1.2 m) LH

1шт.

8

T57073

FRAME - wing 7 foot (2.1 m) LH

1шт.

9

T57075

FRAME - wing 10 foot (3.1 m ) LH

1шт.

10

T57083

DRAFT ARM - left wing 29-39 foot (8.8-11.9 m)

1шт.

11

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

16шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

13

129-108

NUT,3/4"-10, G5

16шт.

14

T57228

PLATE - extension

1шт.

15

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8 x 6" NC hex (Grade 5)

1шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

129-107

NUT,5/8"-11, G5

1шт.

18

T57079

EXTENSION - 12" (304.8 mm)

1шт.

19

T57081

EXTENSION - 24" (609.6 mm)

1шт.

20

T57193

PIN - wing lock

2шт.

21

136-165

COTTER

2шт.
