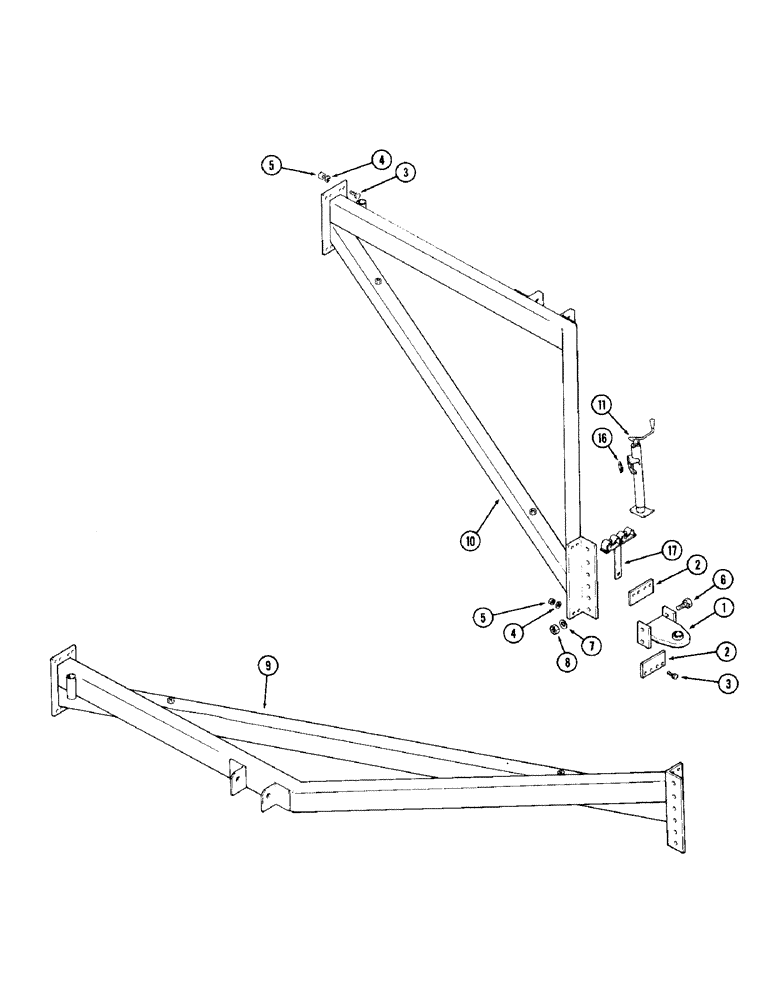

Запчасти Case IH 1900 (04) - HITCH, 29 TO 39 FOOT (8.8 TO 11.9 M)

1

T57089

CLEVIS - hitch

1шт.

2

T57088

PLATE - back

2шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

24шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

5

129-108

NUT,3/4"-10, G5

24шт.

6

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

7

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

8

129-110

NUT,1"-8, G5

4шт.

9

T57090

HITCH - RH

1шт.

10

T57091

HITCH - LH

1шт.

11

T57198

JACK - hitch

1шт.

T63259

KIT - jack crank (Not illustrated)

1шт.

T63260

KIT - jack plunger (Not illustrated)

1шт.

T63311

KIT - jack screw (Not illustrated)

1шт.

T63312

KIT - jack inner ram (Not illustrated)

1шт.

16

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

17

T57188

SUPPORT ASSEMBLY - hose

1шт.
