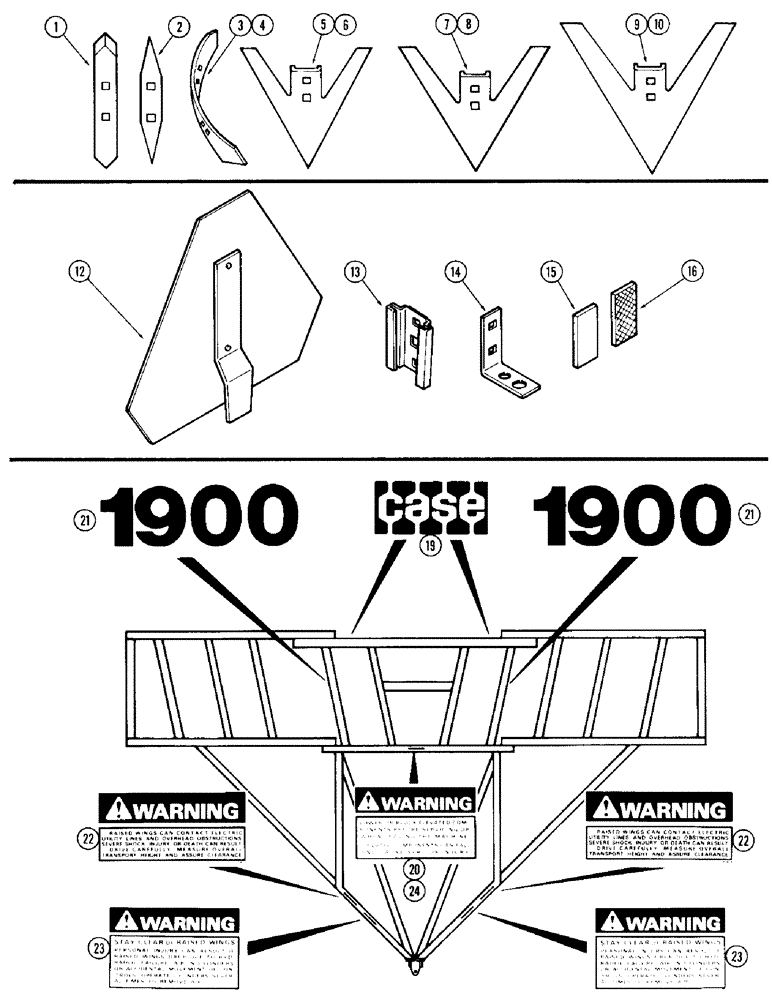

Запчасти Case IH 1900 (44) - SWEEPS AND SHOVELS

1

T54710

INSTRUCTION

CHISEL TOOTH - 2 x 5/8 x 16" (50.8 x 15.9 x 406.4 mm)

1шт.

2

T52121

TOOTH

- 2 x 3/4 x 15" (50.8 x 19.1 x 381.0 mm)

1шт.

3

T52122

SHOVEL

- twisted RH 3 x 3/8 x 19-1/2" (76.2 x 9.5 x 495.3 mm)

1шт.

4

T52123

SHOVEL

- twisted LH 3 x 3/8 x 19-1/2" (76.2 x 9.5 x 495.3 mm)

1шт.

5

T52055

SHOVEL

SWEEP - 12 x 1/4" (304.8 x 6.4 mm)

1шт.

6

T52154

SHOVEL

SWEEP - 12 x 5/16" (304.8 x 8.0 mm)

1шт.

7

T52054

SHOVEL

SWEEP - 14 x 5/16" (355.6 x 8.0 mm)

1шт.

8

T52056

SHOVEL

SWEEP - 14 x 1/4" (355.6 x 6.4 mm)

1шт.

9

T52129

SWEEP - 16 x 1/4" (406.4 x 6.4 mm)

1шт.

10

T52053

SHOVEL

SWEEP - 16 x 5/16" (406.4 x 8.0 mm)

1шт.

B90656

BOLT - plow 1/2 x 2-1/4" with NC hex nut (Box of 25) Not illustrated

1шт.

12

A59450

WARNING SIGN

SYMBOL - SMV, reflectors

1шт.

13

A8179

SOCKET

- SMV, reflectors and symbol

1шт.

14

T51749

BRACKET

- SMV, reflectors and symbol

1шт.

15

321-5814

DECAL

TAPE - reflective, amber, smv symbol

1шт.

16

321-5813

TAPE - reflective, red, smv symbol

2шт.

19

321-2576

DECAL

- Case

2шт.

20

321-3890

DECAL

- warning

1шт.

21

321-5646

DECAL - model 1900

2шт.

22

321-3851

DECAL - warning, raised wings

2шт.

23

321-5687

DECAL - warning, wing drop

2шт.

24

321-5629

DECAL - warning (French) Not illustrated

1шт.
