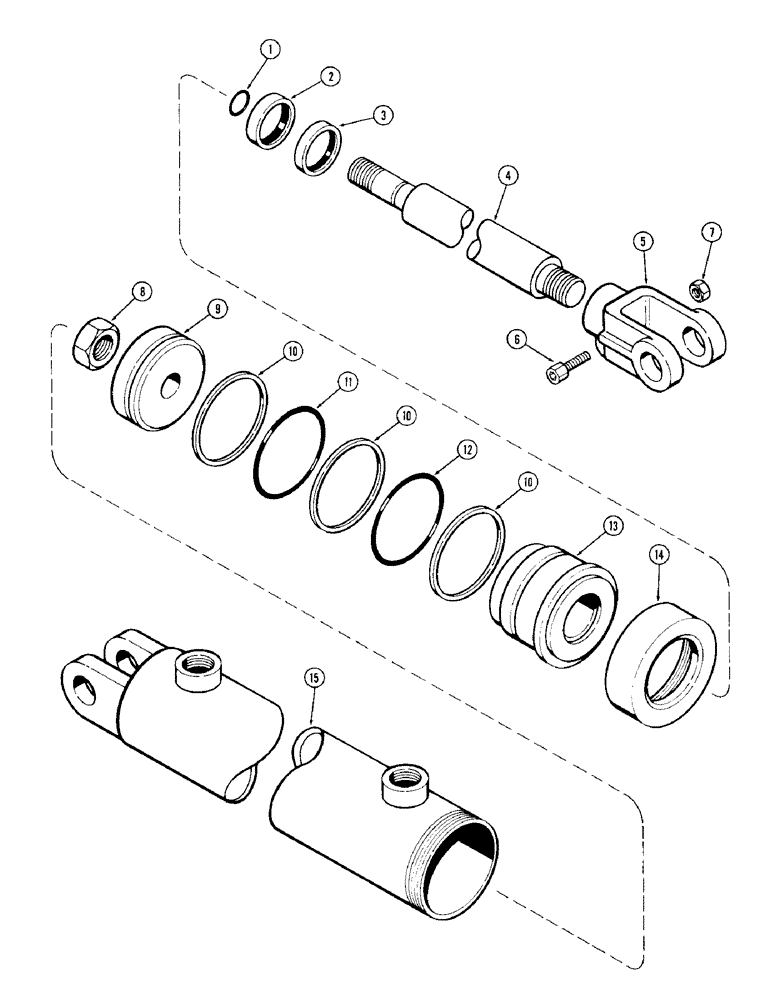

Запчасти Case IH 1900 (40) - T57329 CYLINDER RAM, 5 X 20 INCH (127.0 X 508.0 MM)

T57329

CYLINDER - hydraulic complete

2шт.

1

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N T63327

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Seal Kit, P/N T63327

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63327

1шт.

4

T57321

ROD - piston

1шт.

5

T57142

CLEVIS

1шт.

6

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

131-21

LOCK NUT,1 1/8"-12, GB

NUT - piston rod 1-1/8" NF

1шт.

9

T57320

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - backup

3шт.

Part of Seal Kit, P/N T63327

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 5 x 4-1/2 x 1/4" (127.0 x 114.3 x 6.4 mm)

1шт.

Part of Seal Kit, P/N T63327

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 5 x 4-1/2 x 1/4" (127.0 x 114.3 x 6.4 mm)

1шт.

Part of Seal Kit, P/N T63327

1шт.

13

T57323

HEAD - cylinder

1шт.

14

T57319

END - cylinder

1шт.

15

T57322

TUBE - cylinder

1шт.

T63327

KIT - seal, Includes: ref. nos. 1, 2, 3, 10, 11, 12

1шт.
