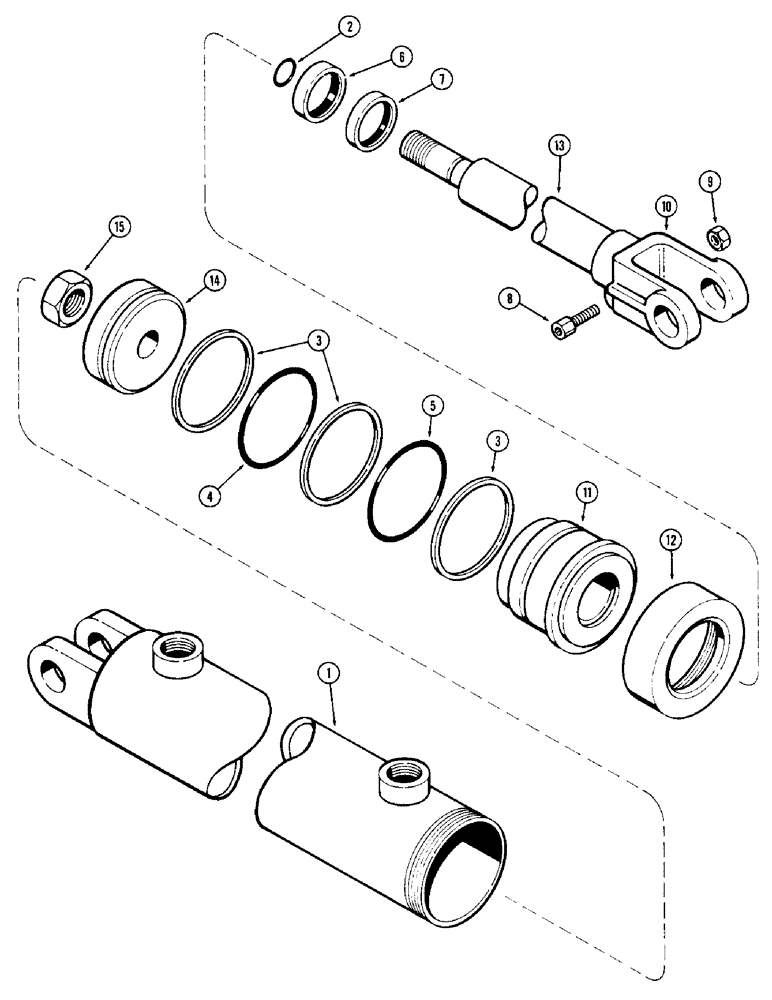

Запчасти Case IH 1900 (38) - T57118 CYLINDER RAM, 4-1/2 X 20 INCH (114.3 X 508.0 MM)

T57118

CYLINDER - hydraulic complete

2шт.

1

T57196

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 x 1-3/8 x 1/8" (28.6 x 34.9 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T63304

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - backup

3шт.

Part of Seal Kit, P/N T63304

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N T63304

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

Part of Seal Kit, P/N T63304

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-7/8 x 5/16" (38.1 x 47.6 x 7.9 mm)

1шт.

Part of Seal Kit, P/N T63304

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63304

1шт.

8

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

T57142

CLEVIS

1шт.

11

T57197

HEAD - cylinder

1шт.

12

T57161

END - cylinder

1шт.

13

T57195

ROD - piston

1шт.

14

T57194

PISTON

1шт.

15

131-1240

NUT - piston rod 1-1/8" NF 1 1/8"-12, GC

1шт.

T63304

KIT - seal, Includes: ref. nos. 2, 3, 4, 5, 6, 7

1шт.
