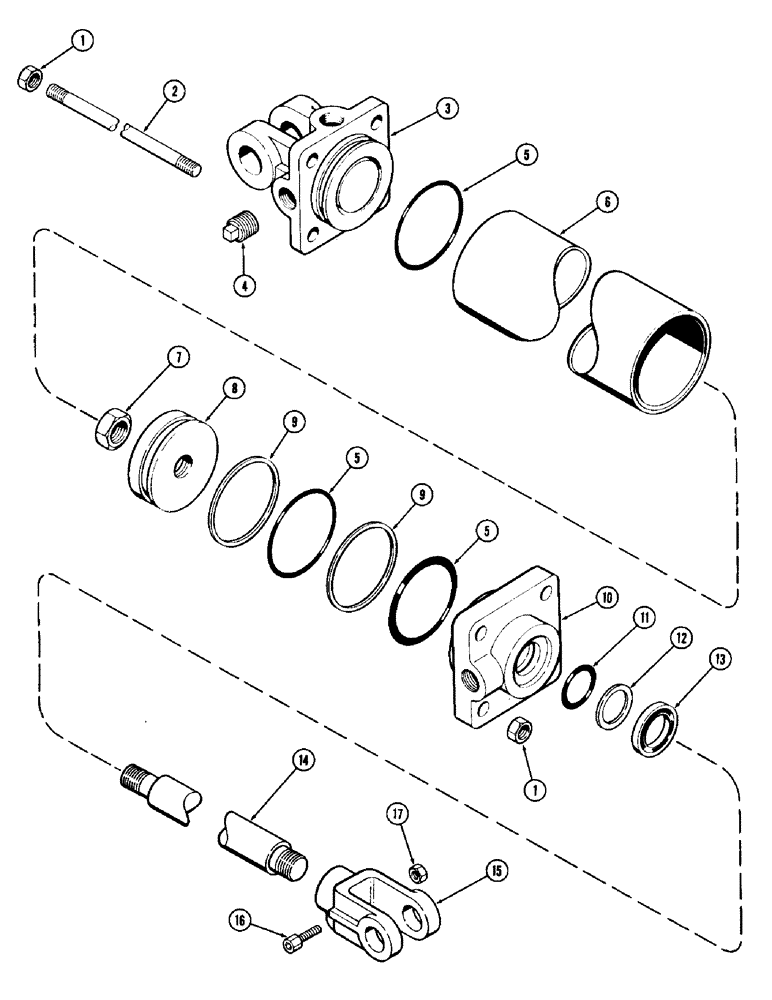

Запчасти Case IH 1900 (36) - CYLINDER CROSS, 4 X 20 INCH (101.6 X 508.0 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete

2шт.

1

25-110

POSTER

NUT - tie rod

8шт.

2

T57222

ROD - tie

4шт.

3

B17282

BASE

- cylinder

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- pipe Hex Soc, 1/2"-14

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 mm)

3шт.

Part of Seal Kit, P/N T63309

1шт.

6

T57225

TUBE - cylinder

1шт.

7

131-914

NUT,1"-14

NUT - piston rod 1" NF

1шт.

8

B17276

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - backup

2шт.

Part of Seal Kit, P/N T63309

1шт.

10

B17270

HEAD

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 x 1-1/4 x 1/8" (38.1 x 31.8 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T63309

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63309

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63309

1шт.

14

T57224

ROD - piston

1шт.

15

T55022

CLEVIS

1шт.

16

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC socket head

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

T63309

SEAL

KIT - seal, Includes: ref. nos. 5, 9, 11, 12, 13

1шт.
