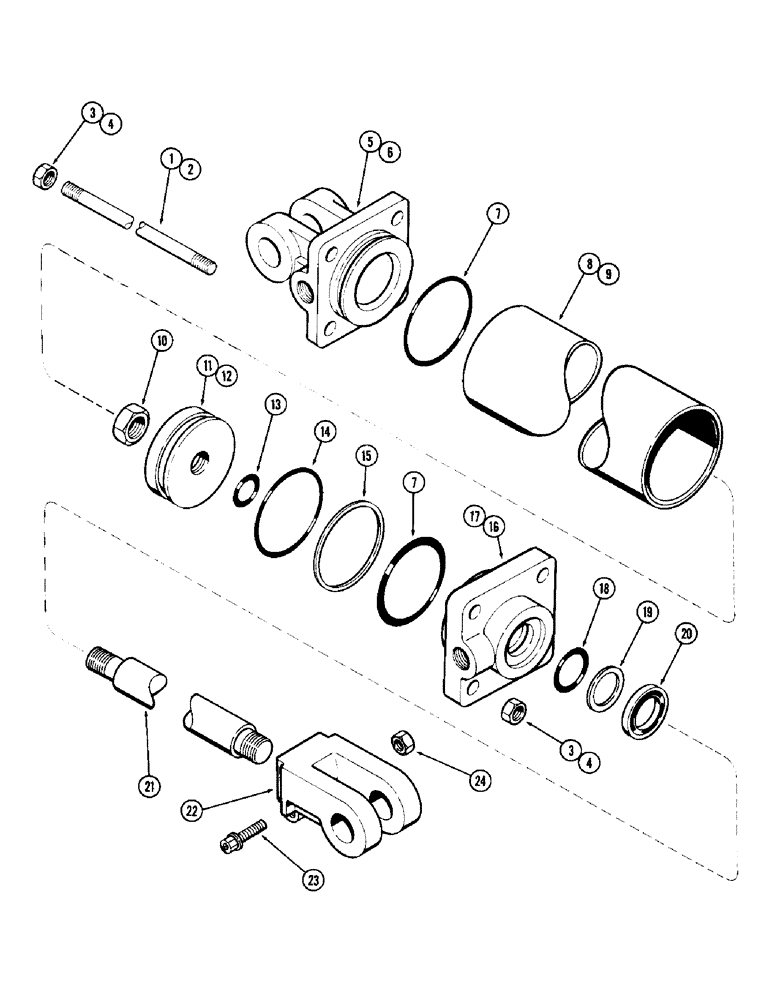

Запчасти Case IH 1900 (34) - T57116 CYLINDER RAM, 3-1/2 X 20 INCH (88.9 X 508.0 MM)

T57116

CYLINDER - hydraulic complete

2шт.

1

T57183

ROD - tie

4шт.

3

129-126

NUT,9/16"-18, G8

- tie rod 9/16" NF hex

8шт.

5

T57184

BASE - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 x 3-1/2 x 3/16" (79.4 x 88.9 x 4.8 mm)

2шт.

Part of Seal Kit, P/N T63302

1шт.

8

T57181

TUBE - cylinder

1шт.

10

129-130

NUT,1"-14, G5

- piston rod 1"-14

1шт.

11

T57186

PISTON

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/4 x 1/8" (25.4 x 31.8 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T63302

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 x 3-1/2 x 3/16" (79.4 x 88.9 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63302

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63302

1шт.

16

T57185

HEAD - cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63302

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-1/2 x 1/8" (31.8 x 38.1 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T63302

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63302

1шт.

21

T57182

ROD - piston

1шт.

22

T57142

CLEVIS

1шт.

23

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

T63302

KIT - seal, Includes: ref. nos. 7, 13, 14, 15, 18, 19, 20

1шт.

T57117

CYLINDER - hydraulic complete, T57117 ram 4 x 20" (101.6 x 508.0 mm)

2шт.

2

T57192

ROD - tie, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

4шт.

4

129-127

NUT,5/8"-18, G5

Tie rod, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm) 5/8"-18, G5

8шт.

6

T57189

BASE - cylinder, T57117 ram 4 x 20" (101.6 x 508.0 mm)

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 x 4 x 3/16" (92.1 x 101.6 x 4.8 mm), T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

2шт.

Part of Seal Kit, P/N T63303

1шт.

9

T57187

TUBE - cylinder, T57117 ram 4 x 20" (101.6 x 508.0 mm)

1шт.

11

T57186

PISTON, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

10

129-130

NUT,1"-14, G5

- piston rod 1"-14, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm), T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

12

T57191

PISTON, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/4 x 1/8" (25.4 x 31.8 x 3.2 mm), T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 x 4 x 3/16" (92.1 x 101.6 x 4.8 mm), T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - backup, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

17

T57190

HEAD - cylinder, T57117 ram 4 x 20" (101.6 x 508.0 mm)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - backup, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-1/2 x 1/8" (31.8 x 38.1 x 3.2 mm), T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

Part of Seal Kit, P/N T63303

1шт.

21

T57182

ROD - piston, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

22

T57142

CLEVIS, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

23

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-23/4" NC socket head, T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm)

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

T57117 cylinder ram 4 x 20" (101.6 x 508.0 mm) 5/16"-18, G5

1шт.

T63303

KIT - seal, Includes: ref. nos. 7, 13, 14, 15, 18, 19, 20, T57117 ram 4 x 20" (101.6 x 508.0 mm)

1шт.
