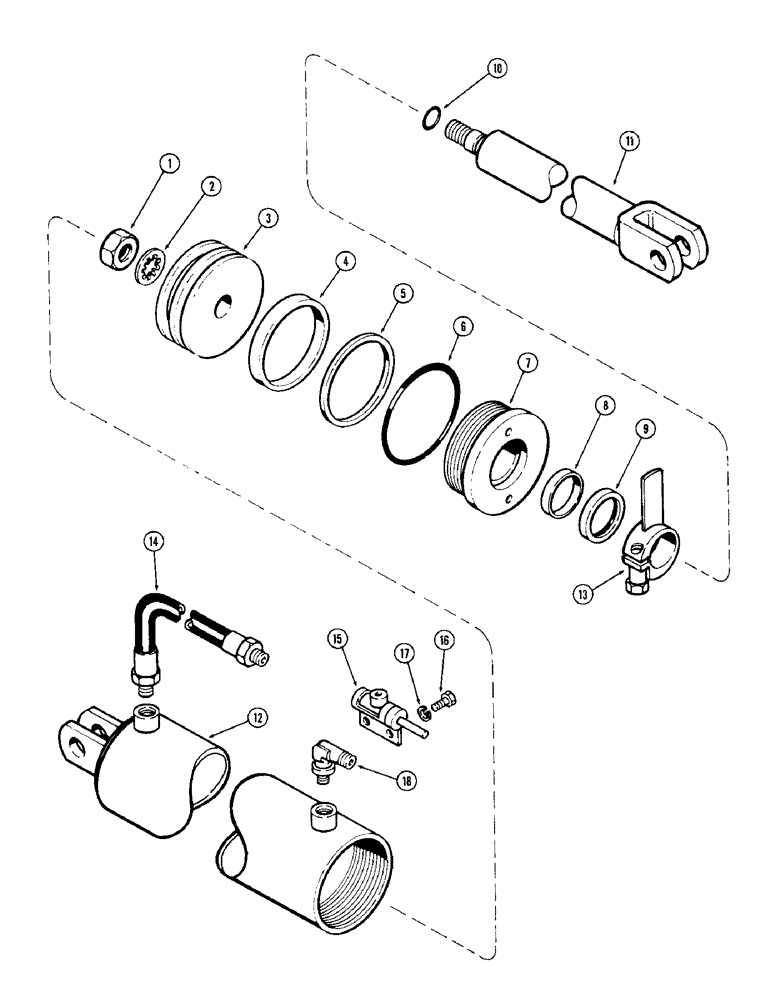

Запчасти Case IH 1900 (32) - CYLINDER C.T.D., 4-1/2 X 12 INCH (114.3 X 304.8 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete

1шт.

1

129-130

NUT,1"-14, G5

- piston rod 1"-14

1шт.

2

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - lock 1" internal tooth

1шт.

3

T57215

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

Part of Seal Kit, P/N T63308

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N T63308

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1/8 ID x 4-1/2" OD (3.2 x 114.3 mm)

1шт.

Part of Seal Kit, P/N T63308

1шт.

7

T57214

PLATE - head

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod 2 x 2-3/8 x 3/8" (50.8 x 60.3 x 9.5 mm)

1шт.

Part of Seal Kit, P/N T63308

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

Part of Seal Kit, P/N T63308

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 1" OD (22.2 x 25.4 mm)

1шт.

Part of Seal Kit, P/N T63308

1шт.

11

T57216

ROD - piston

1шт.

12

T57379

TUBE - cylinder

1шт.

13

T57218

CLAMP ASSEMBLY - piston rod

1шт.

14

T57135

HOSE ASSY.

HOSE - hydraulic 1/2 x 18" (12.7 x 457.2 mm)

1шт.

15

T57137

VALVE - depth cntrol (See page 38)

1шт.

16

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- pipe 1/2"

1шт.

T63308

KIT - seal, Includes: ref. nos. 4, 5, 6, 8, 9, 10

1шт.
