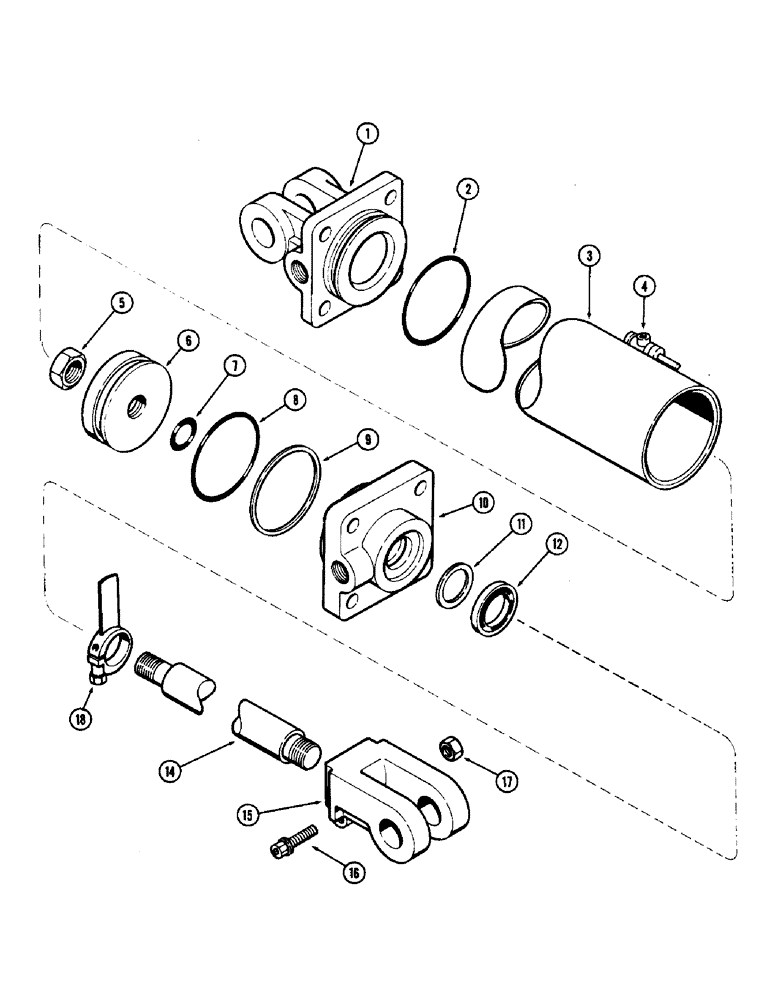

Запчасти Case IH 1900 (30) - T75129 CYLINDER RAM, 4-1/2 X 12 INCH (114.3 X 304.8 MM)

T57129

CYLINDER - hydraulic complete

1шт.

1

T57160

HEAD - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 4-1/8 x 4-1/2 x 3/16" (104.8 x 114.3 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63301

1шт.

3

T57157

TUBE - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - depth control (See page 38)

1шт.

5

131-1173

NUT,7/8"-14, GA

- piston rod 7/8" NF

1шт.

6

T57159

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 3/4 x 7/8 x 1/16" (19.1 x 22.2 x 1.6 mm)

1шт.

Part of Seal Kit, P/N T63301

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 4-1/8 x 4-1/2 x 3/16" (104.8 x 114.3 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63301

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63301

1шт.

10

T57161

END - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 2 x 2-3/8 x 5/16" (50.8 x 60.3 x 7.9 mm)

1шт.

Part of Seal Kit, P/N T63301

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63301

1шт.

14

T57158

ROD - piston

1шт.

15

T57142

CLEVIS

1шт.

16

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

T57162

CLAMP ASSEMBLY - piston rod

1шт.

T63301

KIT - seal, Includes: ref. nos. 2, 7, 8, 9, 11, 12

1шт.
