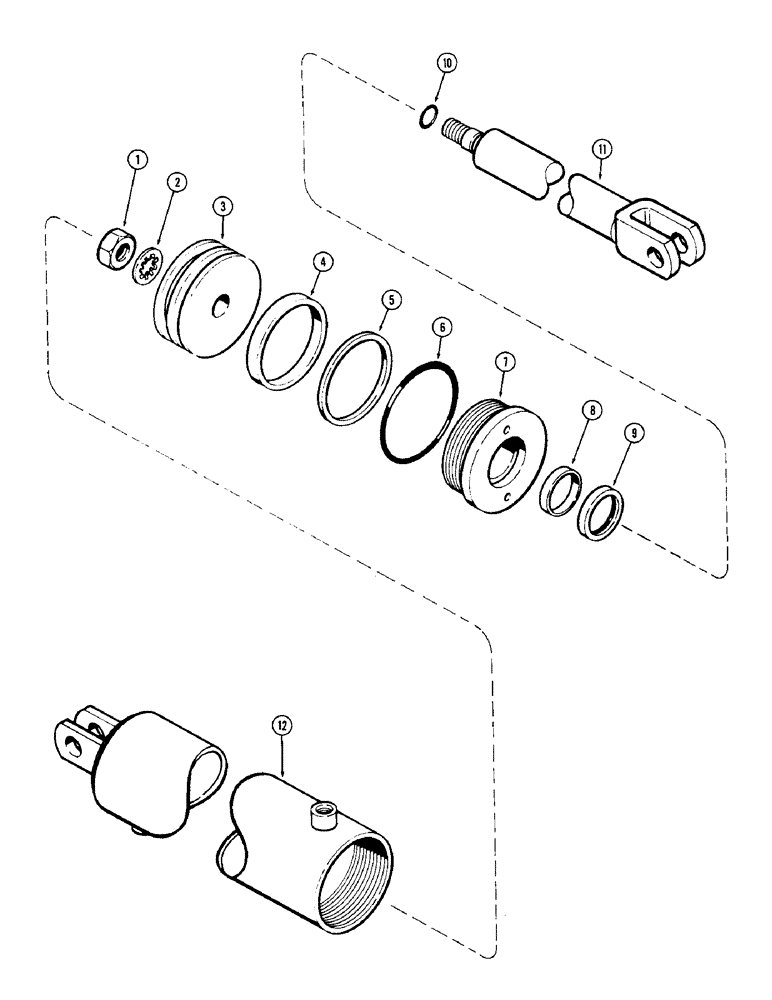

Запчасти Case IH 1900 (28) - CYLINDER C.T.D., 4 X 12 INCH (101.6 X 304.8 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete

1шт.

1

129-130

NUT,1"-14, G5

- piston rod 1"-14

1шт.

2

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - lock 1" internal tooth

1шт.

3

T57210

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

Part of Seal Kit, P/N T63307

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - piston 3-5/8 ID x 4" OD (92.1 x 101.6 mm)

1шт.

Part of Seal Kit, P/N T63307

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 ID x " OD (92.1 x 101.6 mm)

1шт.

Part of Seal Kit, P/N T63307

1шт.

7

T57209

PLATE - head

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod 2 x 2-3/8 x 3/8" (50.8 x 60.3 x 9.5 mm)

1шт.

Part of Seal Kit, P/N T63307

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper 2 x 2-1/2 x 3/8" (50.8 x 63.5 x 9.5 mm)

1шт.

Part of Seal Kit, P/N T63307

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 1" OD (22.2 x 25.4 mm)

1шт.

Part of Seal Kit, P/N T63307

1шт.

11

T57211

ROD - piston

1шт.

12

T57378

TUBE - cylinder

1шт.

T63307

KIT - seal, Includes: ref. nos. 4, 5, 6, 8, 9, 10

1шт.
