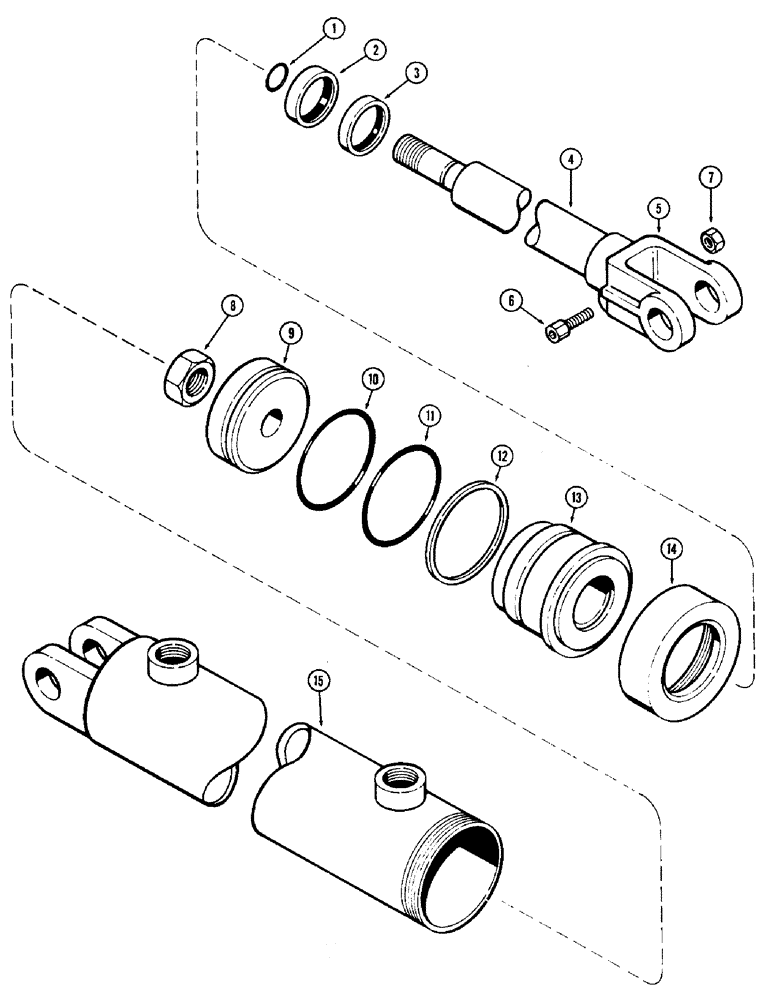

Запчасти Case IH 1900 (26) - T57128 CYLINDER RAM, 4 X 12 INCH (101.6 X 304.8 MM)

T57128

CYLINDER - hydraulic complete

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - piston 3/4 x 7/8 x 1/16" (19.1 x 22.2 x 1.6 mm)

1шт.

Part of Seal Kit, P/N T63299

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Seal Kit, P/N T63299

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63299

1шт.

4

T57155

ROD - piston

1шт.

5

T57142

CLEVIS

1шт.

6

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

131-1173

NUT,7/8"-14, GA

- piston rod 7/8" NF

1шт.

9

T57154

PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 x 4 x 3/16" (92.1 x 101.6 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63299

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - gland 3-5/8 x 4 x 3/16" (92.1 x 101.6 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63299

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63299

1шт.

13

T57156

HEAD - cylinder

1шт.

14

T57148

END - cylinder

1шт.

15

T57153

TUBE - cylinder

1шт.

T63299

KIT - seal, Includes: ref. nos. 1, 2, 3, 10, 11, 12

1шт.
