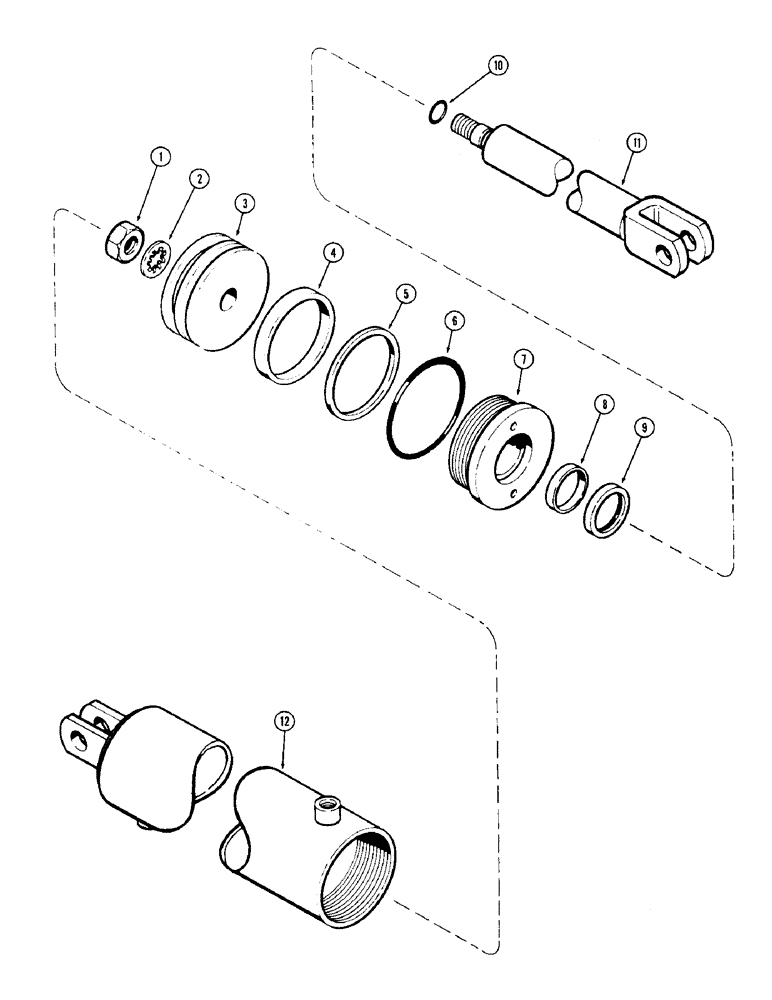

Запчасти Case IH 1900 (24) - CYLINDER C.T.D., 3-1/2 X 12 INCH (88.9 X 304.8 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete

1шт.

1

129-130

NUT,1"-14, G5

- piston rod 1"-14

1шт.

2

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - lock 1" internal tooth

1шт.

3

T57207

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING - wear

1шт.

Part of Seal Kit, P/N T63310

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - piston 3-1/8 ID x 3-1/2" OD (79.4 x 88.9 mm)

1шт.

Part of Seal Kit, P/N T63310

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3-1/2" OD (79.4 x 88.9 mm)

1шт.

Part of Seal Kit, P/N T63310

1шт.

7

T57206

PLATE - head

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod 1-3/4 x 2-1/8 x 3/8" (44.5 x 54.0 x 9.5 mm)

1шт.

Part of Seal Kit, P/N T63310

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper 1-3/4 x 2-1/8 x 9/32" (44.5 x 54.0 x 7.1 mm)

1шт.

Part of Seal Kit, P/N T63310

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 1" OD (22.2 x 25.4 mm)

1шт.

Part of Seal Kit, P/N T63310

1шт.

11

T57208

ROD - piston

1шт.

12

T57377

TUBE - cylinder

1шт.

T63310

KIT

- seal, Includes: ref. nos. 4, 5, 6, 8, 9, 10

1шт.
