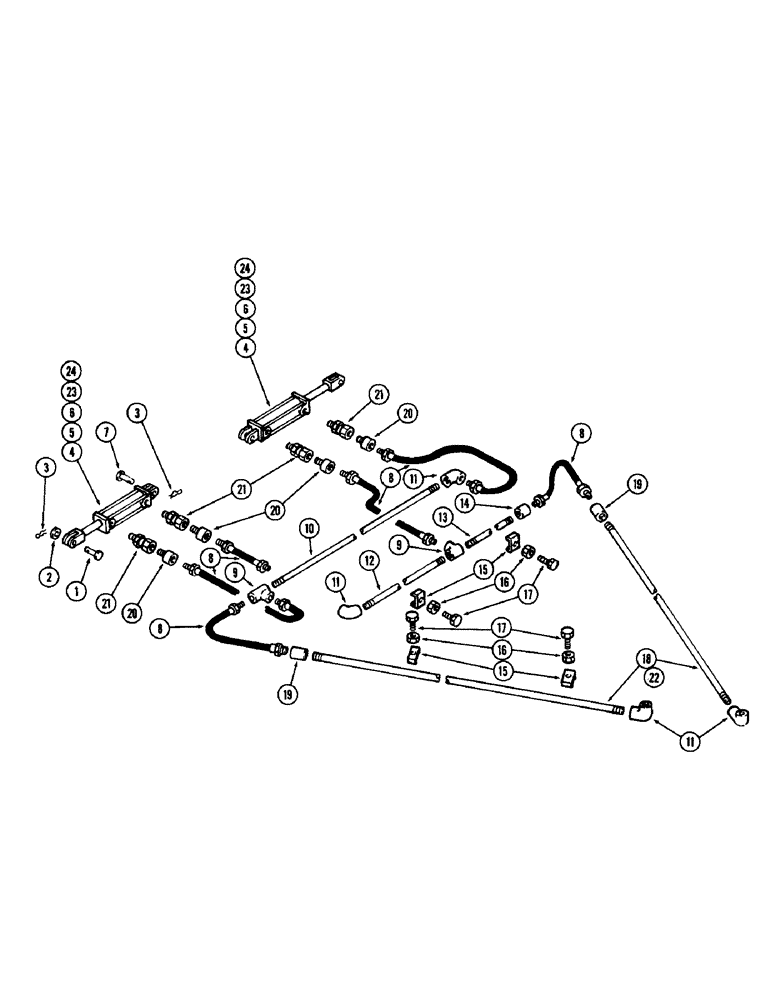

Запчасти Case IH 1900 (18) - WING LIFT

1

T57109

PIN - cylinder rod

2шт.

2

195-554

WASHER - 2-1/4 x 1-1/16" x 8 gauge

2шт.

3

136-165

COTTER

4шт.

4

T57116

CYLINDER - hydraulic RAM 3-1/2 x 20" (88.9 x 508.0 mm) 4' (1.2 m) wings (See page 34)

2шт.

5

T57117

CYLINDER - hydraulic RAM 4 x 20" (101.6 x 508.0 mm) 7' (2.1 m) wings (See page 34)

2шт.

6

T57118

CYLINDER - hydraulic RAM 4-1/2 x 20" (114.3 x 508.0 mm) 10' (3.1 m) wings (See page 36)

2шт.

7

T57119

PIN - cylinder base

2шт.

8

T57124

HOSE - hydraulic 3/8 x 16" (9.5 x 406.4 mm)

6шт.

9

221-1423

TEE,Pipe, 3/8" NPT

FITTING - 3/8"

2шт.

10

T57121

PIPE - 3/8 x 105" (9.5 x 2667.0 mm)

1шт.

11

217-1052

ELBOW,3/8" - 18 NPTF Female

- pipe 3/8" female

4шт.

12

T57122

PIPE - 3/8 x 59" (9.5 x 1498.6 mm)

1шт.

13

T57123

PIPE - 3/8 x 26" (9.5 x 660.4 mm)

1шт.

14

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

COUPLING - pipe 3/8"

1шт.

15

T57125

CLAMP - pipe

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

18

T57120

PIPE - 3/8 x 134" (9.5 x 3403.6 mm) 29 to 39 foot (8.8 to 11.9 m)

2шт.

19

218-917

HYD CONNECTOR,Sw, 3/8" NPT Fem x 3/8" NPSM Fem

ADAPTER - swivel 3/8"

2шт.

20

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - redcucer 1/2 to 3/8"

4шт.

21

218-1417

UNION,3/8" NPTF Male x 3/8" NPSM, Fem Sw

COUPLING - swivel with 1/16" (1.6 mm) diameter restrictor drill to 1/8" (3.2 mm)

4шт.

22

T57383

PIPE - 3/8 x 112" (9.5 x 2844.8 mm) 21 to 27 (6.4 x 8.2 m)

2шт.

23

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic cross 4 x 20" (101.6 x 508.0 mm) 7' (2.1 m) wings (See page 36)

2шт.

24

T57329

CYLINDER - hydraulic RAM 5 x 20" (127.0 x 508.0 mm) 10' (3.1 mm) wings (See page 40)

2шт.
