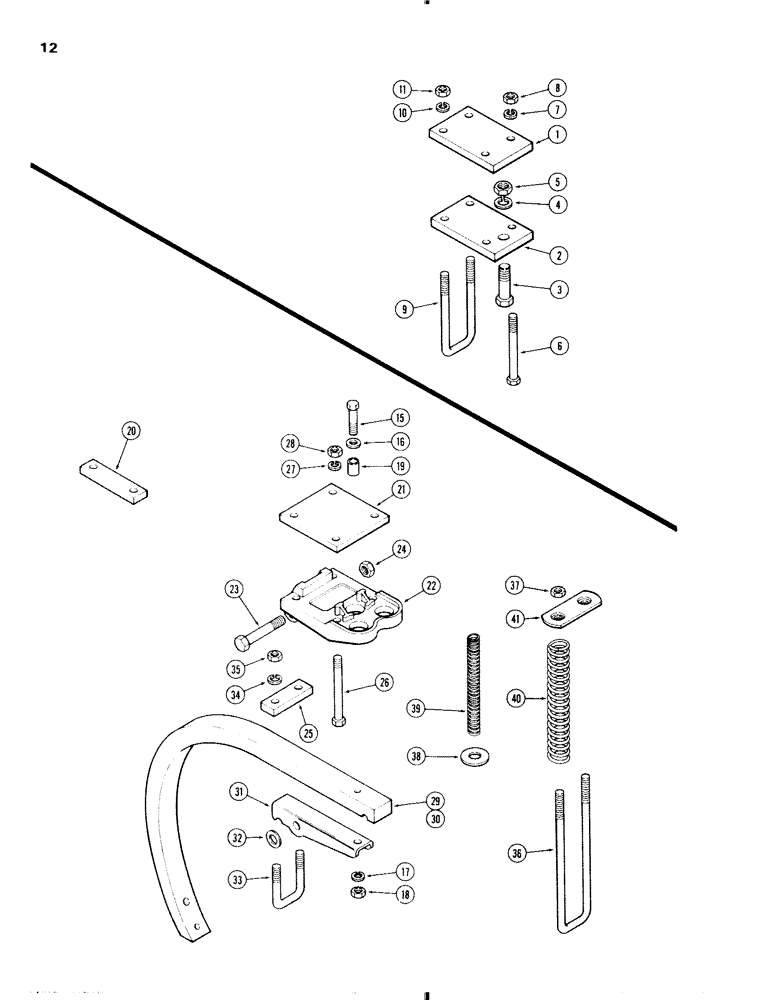

Запчасти Case IH 1800 (12) - RIGID CLAMP

1

T54687

BRACKET

- top

1шт.

2

T54688

BRACKET

- bottom

1шт.

3

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- 7/8 x 3" NC hex (Grade 5)

1шт.

4

192-29

LOCK WASHER,7/8"

7/8"

1шт.

5

129-109

NUT,7/8"-9, G5

1шт.

6

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8 x 6" NC hex (Grade 5)

2шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

129-107

NUT,5/8"-11, G5

2шт.

9

T54689

U-BOLT

1шт.

REF#9 5/8 x 7 3/4.USE T57846 MEASURES 5/8 x 8

1шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

129-107

NUT,5/8"-11, G5

2шт.

15

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Cushion clamp Hex, 5/8"-11 x 2 1/2", G5

1шт.

16

195-2072

WASHER,11/16" x 1 1/8" x 109"

- 1-1/8 x 11/16" x 12 gauge, cushion clamp

1шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

1шт.

18

129-107

NUT,5/8"-11, G5

Cushion clamp 5/8"-11, G5

1шт.

19

T54721

SPACER

BUSHING - shank spacer, cushion clamp

1шт.

20

T52051

STRAP - clamp (Use 1-T54994), cushion

2шт.

21

T54994

PLATE

- clamp, cushion

1шт.

22

T54690

PLATE

- base, cushion clamp

1шт.

23

T57387

BOLT

- pivot 3/4 x 4-1/2" NC, cushion clamp

1шт.

24

131-1112

NUT,Jam, 3/4"-10

NUT - lock 3/4" NC hex, cushion clamp

1шт.

25

T25684

STRAP

- U-bolt, cushion clamp

1шт.

26

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8 x 6" NC hex (Grade 5), cushion clamp

4шт.

27

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

4шт.

28

129-107

NUT,5/8"-11, G5

Cushion clamp 5/8"-11, G5

4шт.

29

T54685

SHANK

- 1-1/4 x 26", cushion clamp

1шт.

30

T54686

SHANK

- 1-1/4 x 32", cushion clamp

1шт.

31

T35365

BRACKET

- hinge, cushion clamp

1шт.

32

195-2085

WASHER

- 1-1/2 x 13/16" x 16 gauge, cushion clamp

1шт.

33

T52093

U-BOLT

- hinge bracket, cushion clamp

1шт.

34

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion clamp 5/8"

2шт.

35

129-107

NUT,5/8"-11, G5

Cushion clamp 5/8"-11, G5

2шт.

36

T54691

U-BOLT

- spring, cushion clamp

1шт.

37

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock 5/8" NC hex, cushion clamp

2шт.

38

T55417

WASHER

- 1-29/32 x 1 x 7/64" (32" shank only), cushion clamp

2шт.

39

T54692

SPRING

- inner (32" shank only), cushion clamp

2шт.

40

T20296

SPRING

- cushion, clamp

2шт.

41

T54438

CAP

- spring, cushion clamp

1шт.
