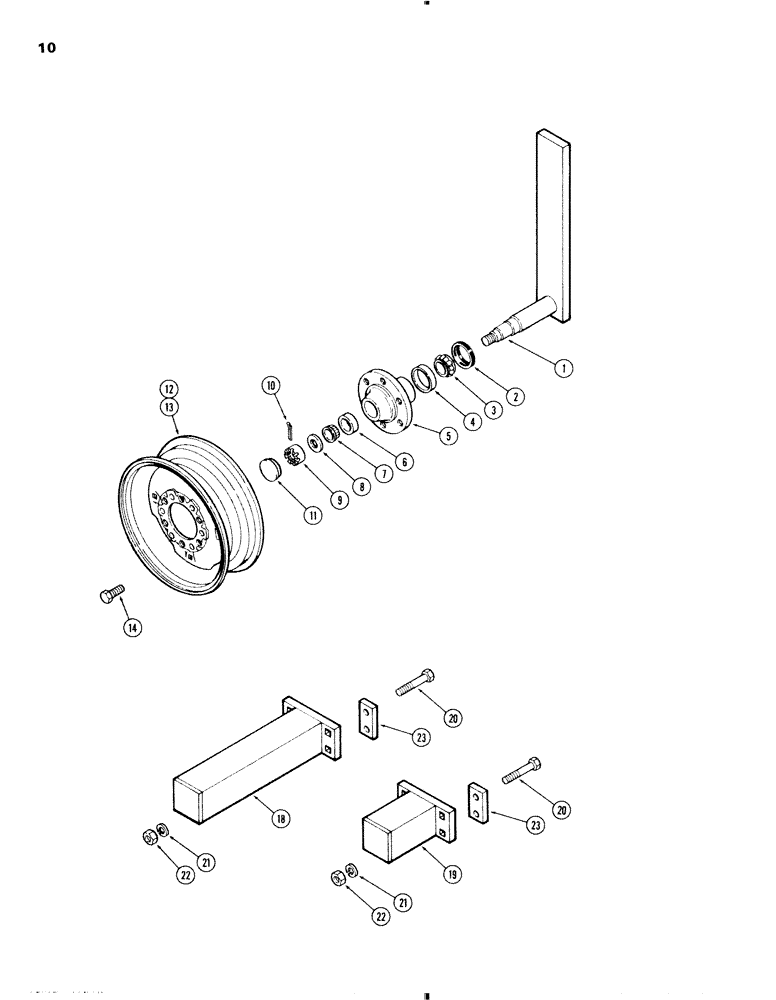

Запчасти Case IH 1800 (10) - SPINDLE AND HUB

1

T54718

SPINDLE

ASSEMBLY

2шт.

2

T52277

SEAL

- grease

2шт.

3

H747758

TAPERED BEARING,38.1 mm ID x 18.034 mm

CONE - bearing inner

2шт.

4

H751370

BEARING CUP

CUP - bearing inner

2шт.

5

T53229

HUB

- wheel

2шт.

6

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer

2шт.

7

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

2шт.

8

195-53

WASHER,1" x 2" x .134"

- 2 x 1-1/16" x 8 gauge

2шт.

9

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

10

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

11

T23707

CAP

- hub

2шт.

12

G57007

WHEEL

- 15 x 6"

2шт.

13

A57879

RIM

WHEEL - 15 x 8"

2шт.

14

A30064

BOLT

- hub

12шт.

18

T54694

EXTENSION - 2 foot

2шт.

19

T54693

EXTENSION - 1 foot

2шт.

20

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5), extensions

16шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Extensions 5/8"

16шт.

22

129-107

NUT,5/8"-11, G5

Extensions 5/8"-11, G5

16шт.

23

T55124

PLATE - extension

8шт.
