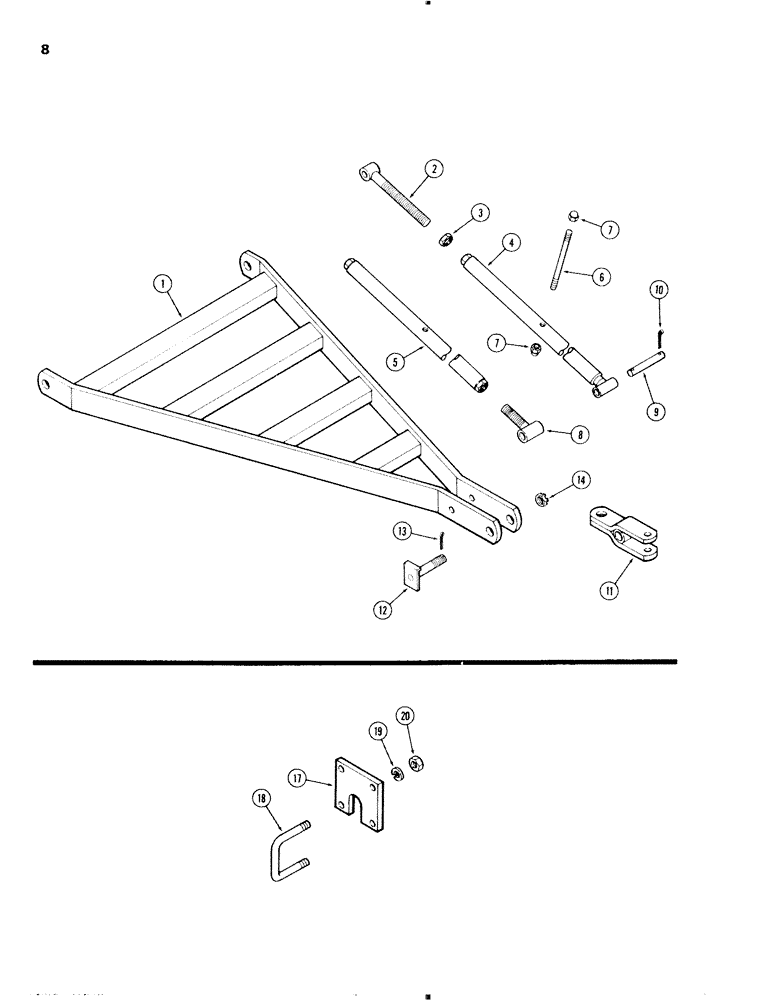

Запчасти Case IH 1800 (08) - HITCH

1

T54703

TRAILER HITCH

HITCH

1шт.

2

T54708

SCREW - radius rod

1шт.

3

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

1шт.

4

T54707

ROD

- radius (Used before Serial No. 1618237)(See Note)

1шт.

5

T56471

ROD

- radius (Used Serial No. 1618237 and after)

1шт.

6

T54709

HANDLE - radius rod

1шт.

7

129-881

NUT,Crown, 5/8"-11

- crown 5/8" NC

2шт.

8

T56132

JACK SCREW

- radius rod left hand

1шт.

9

T54706

PIN - radius rod 1 x 6-1/2"

1шт.

10

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

2шт.

11

T54705

CLEVIS

- reversible

1шт.

12

T55046

PIN - clevis

1шт.

13

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

14

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - 1-1/2" NC hex slotted

1шт.

17

T54719

PLATE - clamp, guage wheel

2шт.

18

T54720

U-BOLT, guage wheel clamp

4шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Gauge wheel clamp 5/8"

8шт.

20

129-107

NUT,5/8"-11, G5

Gauge wheel clamp 5/8"-11, G5

8шт.
