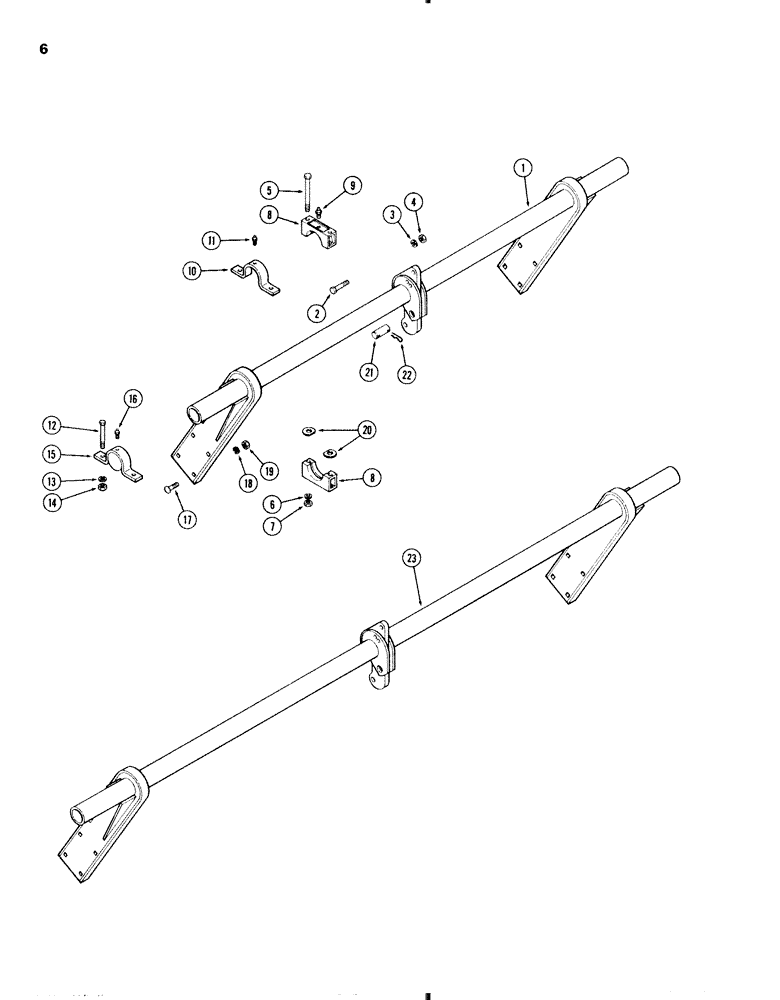

Запчасти Case IH 1800 (06) - ROCKSHAFT

1

T54711

ROCKSHAFT - 10 foot

1шт.

2

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

129-107

NUT,5/8"-11, G5

1шт.

5

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8 x 8" N.C. hex (Grade 5)

4шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

129-107

NUT,5/8"-11, G5

4шт.

8

T54995

CAP

ASSEMBLY - bearing

4шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4" drive

4шт.

10

T54713

BEARING ASSEMBLY - rockshaft

2шт.

11

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4" drive

2шт.

12

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8 x 6" NC hex (Grade 5)

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

129-107

NUT,5/8"-11, G5

8шт.

15

T54714

CAP ASSEMBLY - end

2шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4" drive

2шт.

17

111-619

BOLT

- 5/8 x 2-1/2" NC carriage (Grade 5)

8шт.

18

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

129-107

NUT,5/8"-11, G5

8шт.

20

T54996

SHIM

- bearing

1шт.

21

T54864

PIN - 1-7/16 x 3-1/2"

1шт.

22

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

23

T54712

ROCKSHAFT - 14 foot

1шт.
