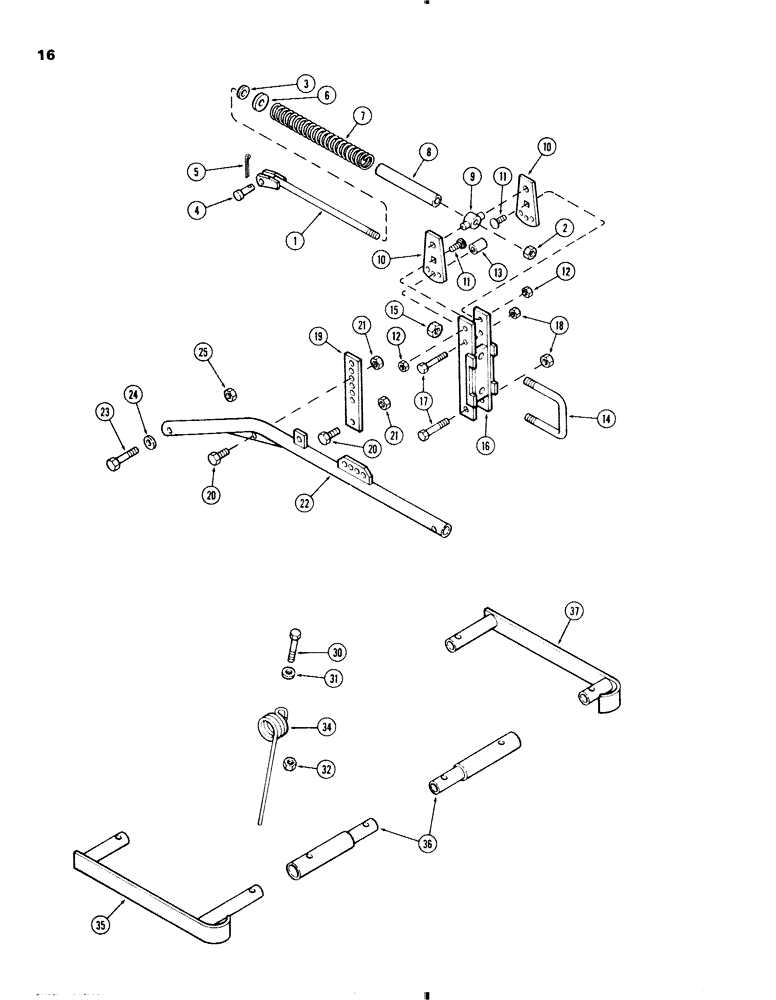

Запчасти Case IH 1800 (16) - CARRIER ARMS

1

T54968

ROD - pressure

2шт.

2

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

2шт.

3

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

4

T28980

CLEVIS PIN

PIN - clevis

2шт.

5

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

T54972

WASHER

2шт.

7

T31803

SPRING

- pressure

2шт.

8

T51884

SLEEVE

2шт.

9

T1937

PIVOT

SWIVEL

2шт.

10

T54970

BRACKET - adjusting

4шт.

11

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock 5/16" NC hex

4шт.

13

T54971

SPACER

2шт.

14

T51881

U-BOLT

(Order T51888)

2шт.

15

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

4шт.

16

T55141

BRACKET - mounting

2шт.

17

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock 5/16" NC hex

2шт.

19

T55142

BRACKET - adjusting

2шт.

20

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

4шт.

22

T56550

ARM - carrier

2шт.

23

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

24

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

25

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

4шт.

30

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Extensions and end brace Hex, 1/2"-13 x 3", G5

3шт.

31

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, extensions and end brace

3шт.

32

131-1182

LOCK NUT,1/2"-13, GA

NUT - lock 1/2" NC hex, extensions and end brace

3шт.

34

T54976

TOOTH

- harrow, extensions and end brace

3шт.

35

T54992

BRACE - end RH, extensions

1шт.

36

T54977

EXTENSION, end brace

3шт.

37

T54993

BRACE - end LH, extensions

1шт.
