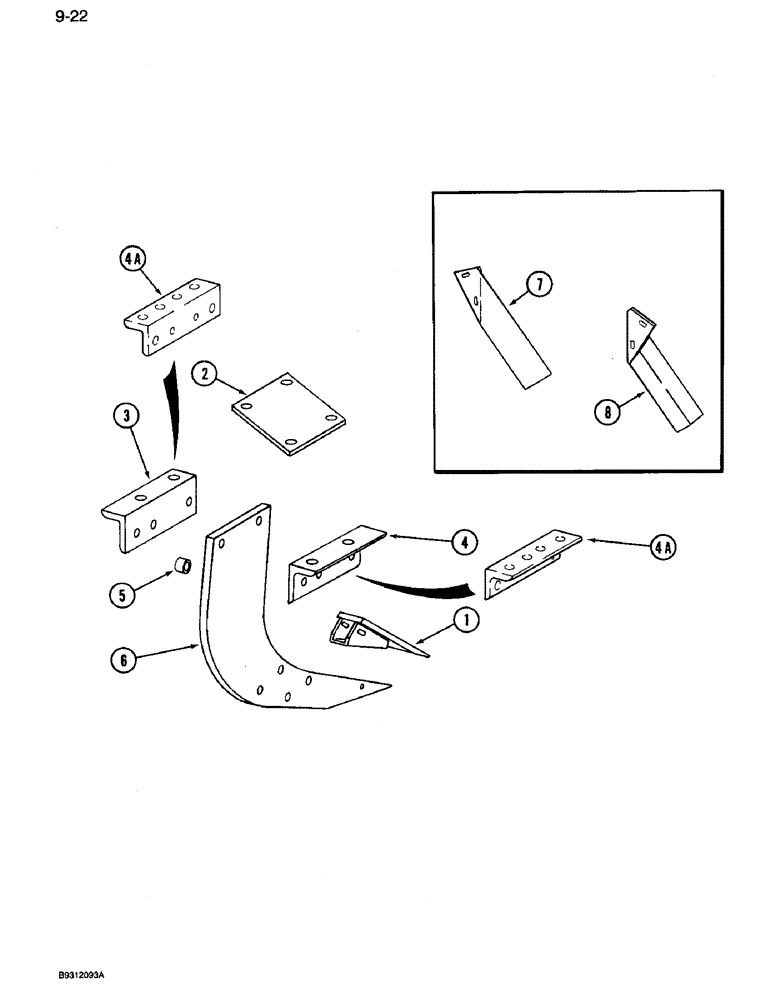

Запчасти Case IH 14 (9-22) - RIGID SHANK UNIT, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

131636C1

TOOTH

POINT - steel, shank

1шт.

438-32828

PIN,11.1mm OD x 44.45mm L

1шт.

1a

1986114C1

TOOTH

POINT - cast, extended wear, shank

1шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

2

101139C1

BAR

PLATE - top

1шт.

413-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

- hex, 7/8 NC x 8 inch

4шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

4шт.

3

131753C1

ANGLE

- shank support, inner, left-hand, no longer available, order item 4A, 1985925C1, angle

1шт.

3

131754C1

ANGLE

- shank support, inner, right-hand, if used

1шт.

4

131751C1

ANGLE

- shank support, outer, left-hand, no longer available, order item 4A, 1985925C1, angle

1шт.

4

131752C1

ANGLE

- shank support, outer, right-hand, if used

1шт.

4a

1985925C1

ANGLE

- shank support, replaces angles shown above, items 3 and 4

4шт.

5

525288R1

SPACER

- shank

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

6

131755C1

SHANK

- rigid

1шт.

112458C1

SHIM

SHIN (Available for service to be welded on front of shanks to increase wear life)

1шт.

7

1284097C1

SUPPORT

WING - shank, left

1шт.

8

1284098C1

SUPPORT

WING - shank, right

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
