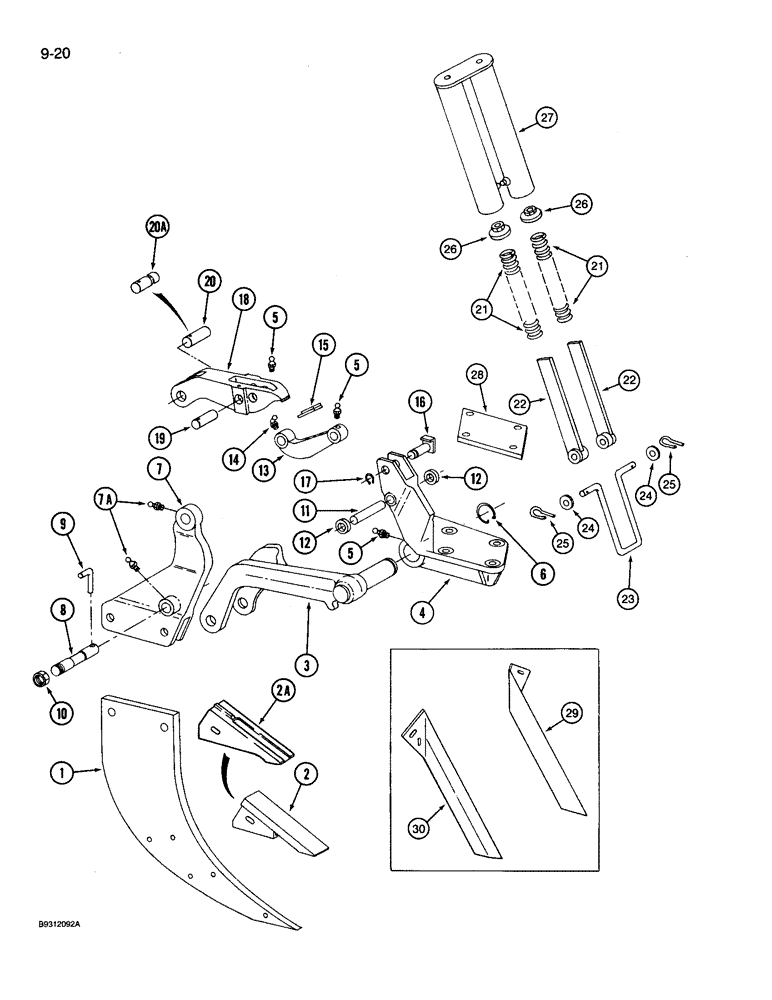

Запчасти Case IH 14 (9-20) - AUTOMATIC TRIP SHANK UNIT, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

20

485524R1

PIN

- plow beam, no longer available, order item 20A, 121225A1 pin

1шт.

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, , replaced by (1) 413-548 bolt and (1) 231-4115 nut 5/16" x 2 1/2", Slotted

1шт.

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, , replaced by (1) 413-548 bolt and (1) 231-4115 nut 3/16" x 2 1/2", Slotted

1шт.

20a

121225A1

PIN,31.75mm OD x 76mm L

- automatic trip pivot

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC

1шт.

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

21

118674A1

SPRING

- extension, replaced 485557R1 spring

2шт.

Quantities shown are for one unit.

1шт.

22

485545R1

BAR

- spring insert

2шт.

Quantities shown are for one unit.

1шт.

23

485544R1

HOLDER

- spring mounting hook

1шт.

24

486365R1

WASHER

- mounting hook

2шт.

25

460309R1

COTTER PIN

PIN - hair

2шт.

26

485548R2

WASHER

ADJUSTER - spring

2шт.

Quantities shown are for one unit.

1шт.

27

485551R3

TUBE

- spring

1шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

- hex, 1/2 NC x 4-1/4 full thread

2шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 7/64 inch

2шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

28

101139C1

BAR

PLATE - top

1шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (9 shank)

2шт.

413-14152

BOLT,Hex, 7/8" - 9 x 9-1/2", Gr 5

- hex, 7/8 NC x 9-1/2 inch (9 shank)

2шт.

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

- hex, 7/8 NC x 6-1/2 inch (5 shank)

2шт.

413-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

- hex, 7/8 NC x 7 inch (5 shank)

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

4шт.

29

1284097C1

SUPPORT

WING - shank, left-hand

1шт.

30

1284098C1

SUPPORT

WING - shank, right-hand

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

133528A1

PACKAGE

KIT - spring, for machines built prior to 1993 production, includes (2) springs assembled (items 21, 22, and 26, shown above), (1) toggle assembled (item 13, 15 and hardware, shown on page 9-19), and instructions

1шт.

Quantities shown are for one unit.

1шт.
