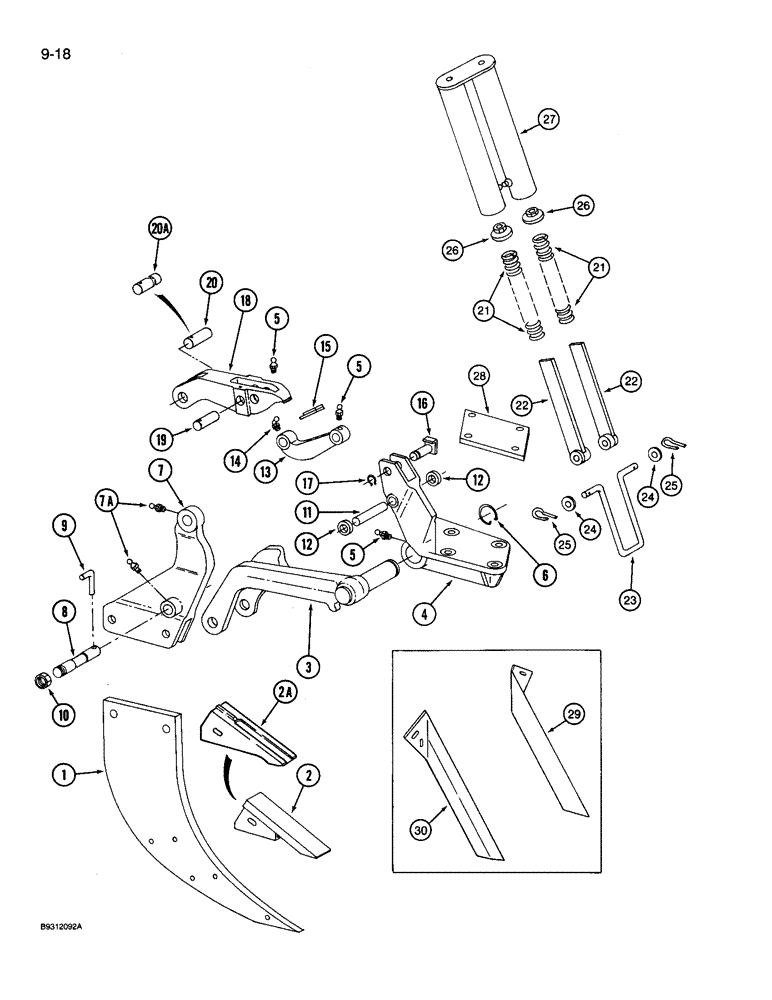

Запчасти Case IH 14 (9-18) - AUTOMATIC TRIP SHANK UNIT, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

131639C1

SHANK

- automatic trip

1шт.

If dealer is looking for a bolt on shin, see P/N 245888A1 which is listedin the moldboard plow bottoms P/B.

1шт.

131641C1

SHIN

(Available for service to be welded on the front of shanks to increase wear life)

1шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

2шт.

2

131636C1

TOOTH

POINT - steel, shank

1шт.

If dealer is using new Kit P/N 191328A1 and needs Roll Pin to match new Shank P/N 188301A1 P.I.N. is 438-32432--- 3/8 x PIN.

1шт.

438-32828

PIN,11.1mm OD x 44.45mm L

1шт.

2a

1986114C1

TOOTH

POINT - cast, extended wear, shank

1шт.

If dealer is using new Kit P/N 191328A1 and needs Roll Pin to match new Shank P/N 188301A1 P.I.N. is 438-32432--- 3/8 x PIN.

1шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

3

55366C3

BEAM

- lower link, left-hand

1шт.

3

131644C2

PLOW BEAM

BEAM - lower link, right-hand

1шт.

4

131628C1

BRACKET

- trip mounting, left-hand

1шт.

4

131629C1

BRACKET

- trip mounting, right-hand

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

3шт.

6

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

7

131630C1

BRACKET

- shank, left-hand

1шт.

There are 2 holes where the shank fits. If you need a bolt which is 3/4" x 3-1/2" long, use P/N 413-1256. In addition you will need a Spacer P/N 525288r1. See 6814 subsoiler for these parts.

1шт.

If used on an older machine when two 7/8 inch holes are needed to mount the shank. The 3/4 inch shank mount hole in the bracket will have to be drilled out to 7/8 inch

1шт.

7

131631C1

BRACKET

- shank, right-hand

1шт.

There are 2 holes where the shank fits. If you need a bolt which is 3/4" x 3-1/2" long, use P/N 413-1256. In addition you will need a Spacer P/N 525288r1. See 6814 subsoiler for these parts.

1шт.

If used on an older machine when two 7/8 inch holes are needed to mount the shank. The 3/4 inch shank mount hole in the bracket will have to be drilled out to 7/8 inch

1шт.

7a

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

2шт.

8

485526R1

SHAFT

- pivot bracket

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

9

471323R1

LINCH PIN

PIN - pivot lock

1шт.

10

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

11

485534R2

PIN,25.4mm OD x 132mm L

- upper mounting roller

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-5/16 x 1-3/4 x 35/64 inch

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

12

61561C1

SPACER

- stop roller

2шт.

13

485537R4

SUPPORT

LINK - upper front

1шт.

Quantities shown are for one unit.

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

15

489152R2

BAND

STRAP - load adjusting

1шт.

Quantities shown are for one unit.

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, Grade 8

1шт.

Quantities shown are for one unit.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Quantities shown are for one unit.

1шт.

16

485539R1

PIN

- upper front link

1шт.

17

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

18

485542R5

LEVER

LINK - upper rear, left-hand

1шт.

18

131633C2

LEVER

LINK - upper rear, right-hand

1шт.

19

485543R1

PIN

- upper link center

1шт.

438-31440

PIN,7/32" x 2 1/2", Coiled

1шт.

133528A1

PACKAGE

KIT - spring, for machines built prior to 1993 production, includes (2) springs assembled (items 21, 22, and 26, shown on page 9-21), (1) toggle assembled (item 13, 15 and hardware, shown above), and instructions

1шт.

Quantities shown are for one unit.

1шт.
