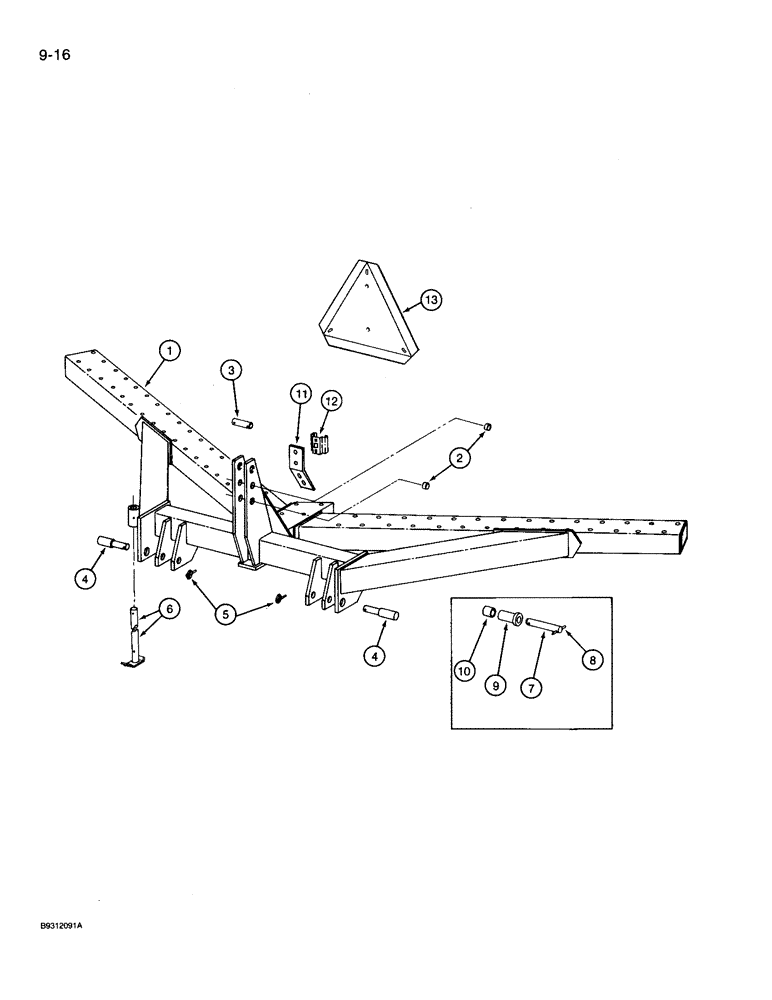

Запчасти Case IH 14 (9-16) - MAIN FRAME AND SMV EMBLEM, 14 SUBSOIL CHISEL, 9 SHANK BASIC (09) - CHASSIS/ATTACHMENTS

1

131773C93

FRAME

ASSEMBLY - main, 9 shank basic

1шт.

2

112718C1

BUSHING

- 1-17/64 x 1-5/8 x 23/32 inch

4шт.

122878C1

DECAL

- Caution, not shown, see page 9-39, item 1

1шт.

3

112680C1

PIN

- 1-1/4 x 5-39/64 inch, upper

1шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , not shown 1/4" x 2"

2шт.

4

101137C1

HITCH PIN,50.8mm OD x 274.32mm L

PIN - hitch

2шт.

5

372907R91

LINCH PIN

PIN - klik

2шт.

6

953958R2

STAND

- support

1шт.

439-1834

HEADED PIN,1/2" x 2 1/8"

PIN - headed, 1/2 x 2-1/8 inch

1шт.

1978738C1

HAIR PIN COTTER

3/8"

1шт.

1a

78046C92

FRAME

ASSEMBLY- main, 5 shank basic, not shown

1шт.

2

541361R1

BUSHING

- 1-1/64 x 1-3/8 x 5/8 inch, 5 shank basic

2шт.

122878C1

DECAL

- Caution, not shown, see page 9-39, item 1, 5 shank basic

1шт.

3

490919R1

PIN

- 1-1/4 x 5-7/64 inch, upper, 5 shank basic

1шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , 5 shank basic 1/4" x 2"

2шт.

5

372907R91

LINCH PIN

PIN - klik, 5 shank basic

2шт.

7

1279504C1

PIN,28.57mm OD x 226mm L

Assy - hitch, 5 shank basic

2шт.

8

438-32440

PIN,3/8" x 2 1/2", Coiled

5 shank basic 3/8" x 2 1/2", Coiled

1шт.

9

542455R1

SPACER

COLLAR - hitch pin, 5 shank basic

2шт.

10

542456R1

SPACER

- 1-9/64 x 1-7/16 x 2-1/4 inch, 5 shank basic

2шт.

11

122557C1

SUPPORT

BRACKET - emblem support, SMV

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, SMV emblem

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , SMV emblem 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, SMV emblem 1/2"-13, G5

2шт.

12

A59457

BRACKET

- SMV emblem

1шт.

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, SMV emblem

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch, SMV emblem

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , SMV emblem 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, SMV emblem

2шт.

13

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.
