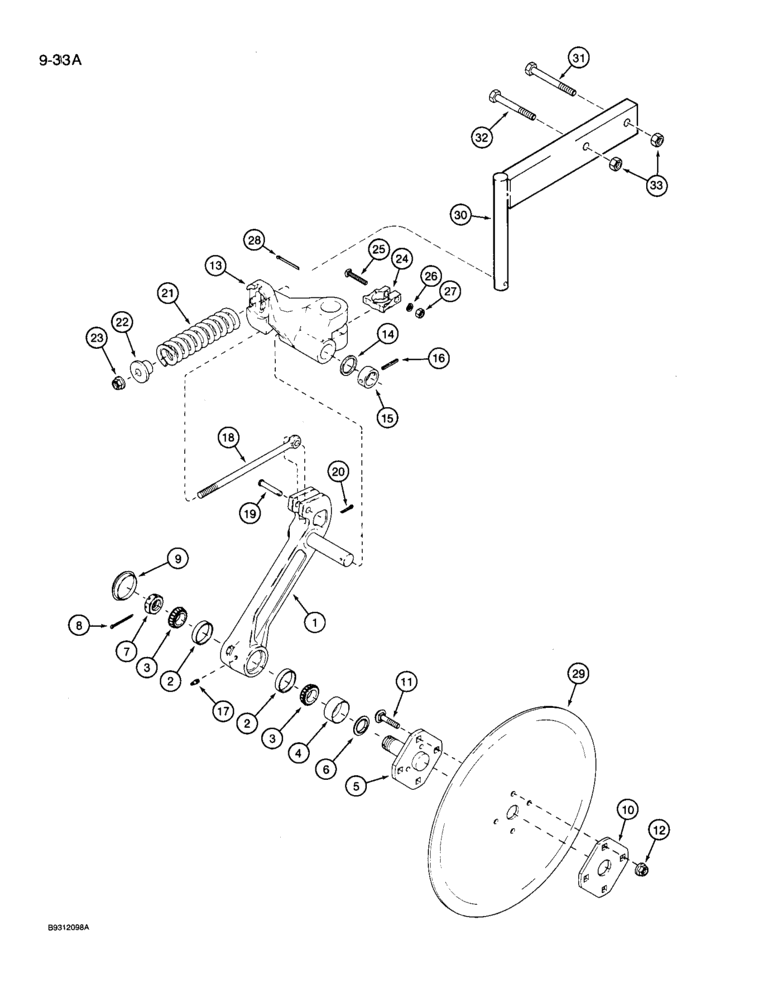

Запчасти Case IH 14 (9-33A) - ROLLING COULTER WITH CAST ARM, CUSHION TYPE, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

224274C1

LEVER

ARM - cast, coulter

1шт.

2

651817R1

BEARING CUP

CUP - bearing

2шт.

2

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller

2шт.

4

472633R1

BUSHING

SLEEVE - wear

1шт.

5

224063C1

HUB

SPINDLE - coulter

1шт.

6

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

7

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

8

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

9

224066C1

HUB CAP

CAP - hub

1шт.

10

224067C1

LARGE PLATE

SUPPORT - blade, outside

1шт.

11

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

4шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, 1/2 inch NC

4шт.

13

224068C1

SUPPORT

- coulter

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

15

61570C1

FERRULE

COLLAR - coulter arm

1шт.

16

438-32032

PIN,5/16" x 2", Coiled

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

18

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT - spring eye

1шт.

19

439-1834

HEADED PIN,1/2" x 2 1/8"

PIN - headed, 1/2 x 2-1/8 inch

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

487698R1

SPRING

- cushion, 13-1/2 coils

1шт.

22

487697R1

CENTERING RING

SPACER - spring plug

1шт.

23

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

24

112844C1

COLLAR CLAMP

CLAMP - stop collar

1шт.

25

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

- square head, 7/16 NC x 2-1/2 inch

1шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

27

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

28

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

29

28341R1

PLOW DISC

DISK - rippled edge, 20 inch

1шт.

29

31399R1

NOTCHED DISK

DISK - rippled edge, 17 inch

1шт.

30

131746C1

BAR

- coulter, with shank

1шт.

31

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8

1шт.

32

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, grade 8

1шт.

33

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.
