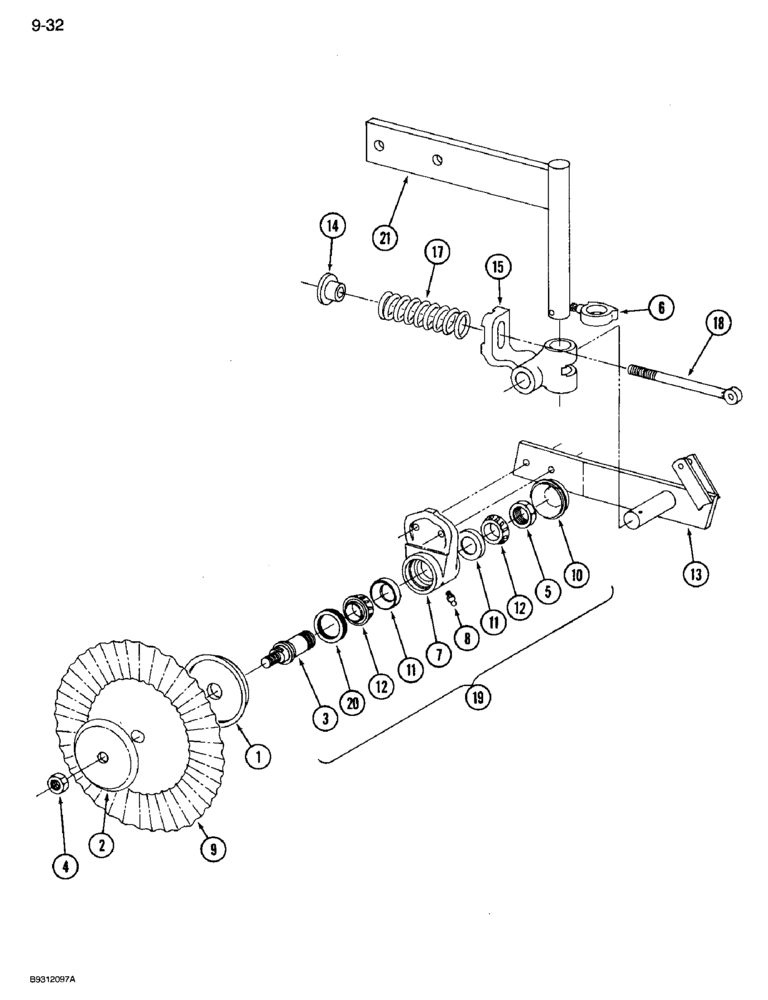

Запчасти Case IH 14 (9-32) - ROLLING COULTER WITH FABRICATED ARM, CUSHION TYPE, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

523020R3

SUPPORT ASSY.

SUPPORT - inside blade

1шт.

2

523021R2

SUPPORT ASSY.

SUPPORT - outside blade

1шт.

3

541480R1

SPINDLE

- coulter

1шт.

Quantities shown are for one unit.

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

4

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

5

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NC

1шт.

Quantities shown are for one unit.

1шт.

6

523345R21

COLLAR CLAMP

COLLAR - stop, includes set screw

1шт.

85-820

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch

1шт.

7

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing

1шт.

Quantities shown are for one unit.

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 65 degree 1/4-28 inch thread

1шт.

Quantities shown are for one unit.

1шт.

9

469191R3

BLADE

DISC - rippled edge, 17 inch

1шт.

10

518842R1

CAP

- hub

1шт.

Quantities shown are for one unit.

1шт.

11

651817R1

BEARING CUP

CUP - bearing, outer

2шт.

11

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

Quantities shown are for one unit.

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, outer

2шт.

Quantities shown are for one unit.

1шт.

13

492812R1

ARM

- fabricated, coulter

1шт.

14

487697R1

CENTERING RING

SPACER - spring plug

1шт.

15

492815R3

BUSHING

- coulter

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

17

487698R1

SPRING

- cushion, 13-1/2 coils

1шт.

18

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT - spring eye

1шт.

439-1834

HEADED PIN,1/2" x 2 1/8"

PIN - headed, 1/2 x 2-1/8 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

132-154

COTTER PIN,1/4" x 2"

PIN - cotter, 1/4 x 1-3/4 inch

1шт.

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/32 inch

1шт.

19

549827R92

HUB CAP

SPINDLE ASSEMBLY - coulter, includes all items on this page shown with an asterisk

1шт.

20

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

Quantities shown are for one unit.

1шт.

472222R1

SLEEVE

- oil seal

1шт.

21

131746C1

BAR

- with shank, coulter

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, Grade 8

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.
