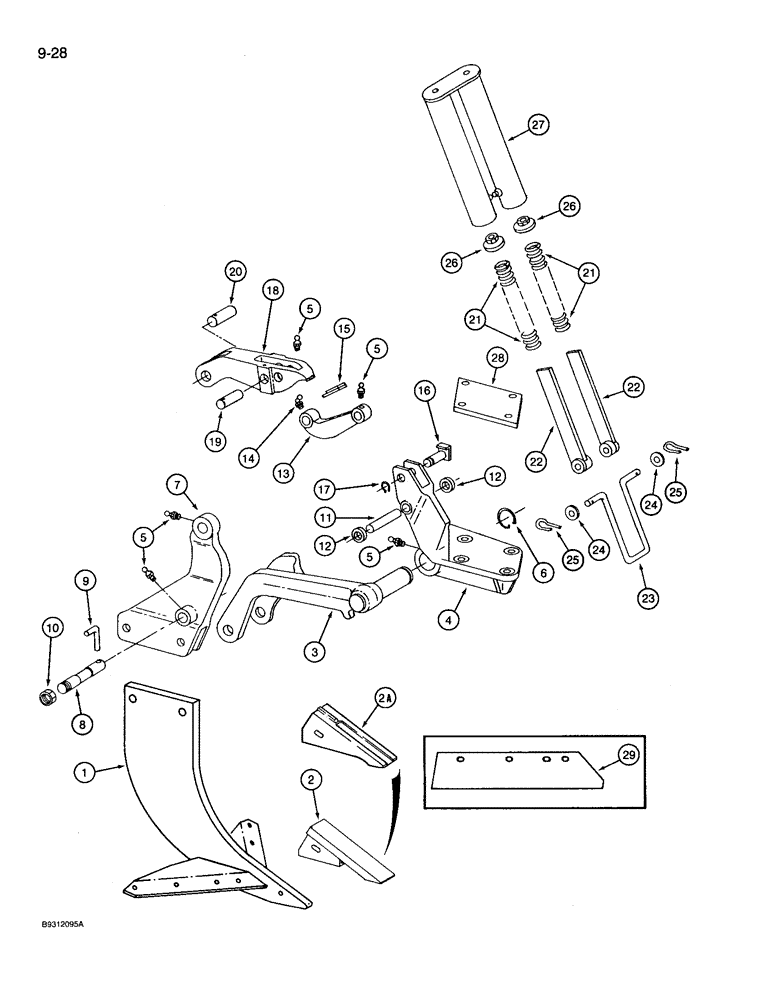

Запчасти Case IH 14 (9-28) - AUTOMATIC SHANK STUBBLE MULCH UNIT, 14 SUBSOIL CHISEL, CONTINUED (09) - CHASSIS/ATTACHMENTS

21

118674A1

SPRING

- extension, replaces 485557R1

2шт.

22

485545R1

BAR

- spring insert

2шт.

23

485544R1

HOLDER

- spring mounting hook

1шт.

24

486365R1

WASHER

- mounting hook

2шт.

25

460309R1

COTTER PIN

PIN - hair

2шт.

26

485548R2

WASHER

ADJUSTER - spring

2шт.

27

485551R3

TUBE

- spring

1шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

- hex, 1/2 NC x 4-1/4 inch full thread

2шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 7/64 inch

2шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

28

101139C1

BAR

PLATE - top

1шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (9 shank)

2шт.

413-14152

BOLT,Hex, 7/8" - 9 x 9-1/2", Gr 5

- hex, 7/8 NC x 9-1/2 inch (9 shank)

2шт.

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

- hex, 7/8 NC x 6-1/2 inch (5 shank)

2шт.

413-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

- hex, 7/8 NC x 7 inch (5 shank)

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

4шт.

29

1980953C1

PLOUGHSHARE

SHARE - flat, 14 inch, right-hand, replaces 463240R2

1шт.

29

464585R2

PLOUGHSHARE

SHARE - flat, 14 inch, left-hand

1шт.

463989R41

BOLT

ASSEMBLY - special, 1/2 NC x 1-17/64 inch, left-hand thread, includes nut

2шт.

470916R1

SPECIAL NUT

- hex, 1/2 inch NC, left-hand thread

2шт.

463988R41

PLOW BOLT

BOLT ASSEMBLY - special, 7/16 NC x 1-17/64 inch, left-hand thread, includes nut

6шт.

22891R1

NUT,7/16"-20, G5, LH

- hex, 7/16 inch NC, left-hand thread

6шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

2шт.
