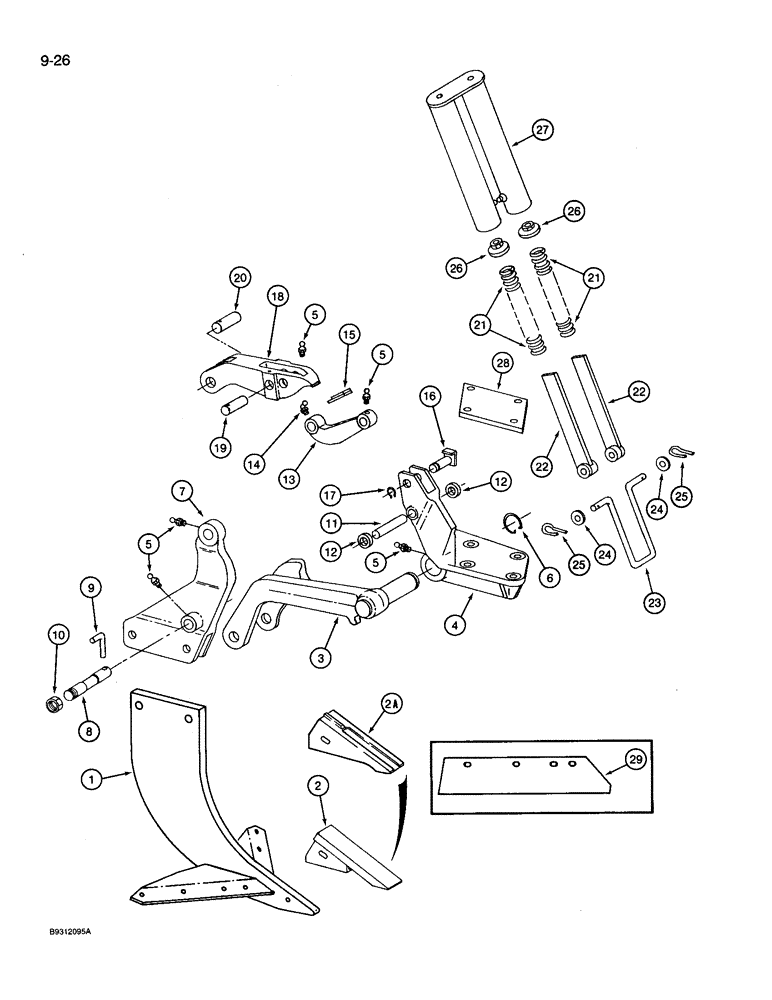

Запчасти Case IH 14 (9-26) - AUTOMATIC SHANK STUBBLE MULCH UNIT, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

131996C1

SHANK

- stubble mulch

1шт.

131641C1

SHIN

- (Available for service to be welded on front of shanks to increase wear life)

1шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

2шт.

2

131636C1

TOOTH

POINT - steel, shank

1шт.

438-32828

PIN,11.1mm OD x 44.45mm L

1шт.

2a

1986114C1

TOOTH

POINT - cast, extended wear, shank

1шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

3

55366C3

BEAM

- lower link, left-hand

1шт.

3

131644C2

PLOW BEAM

BEAM - lower link, right-hand

1шт.

4

131628C1

BRACKET

- trip mounting, left-hand

1шт.

4

131629C1

BRACKET

- trip mounting, right-hand

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

5шт.

6

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

7

131630C1

BRACKET

- shank, left-hand

1шт.

7

131631C1

BRACKET

- shank, right-hand

1шт.

8

485526R1

SHAFT

- pivot bracket

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

9

471323R1

LINCH PIN

PIN - pivot lock

1шт.

10

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

11

485534R2

PIN,25.4mm OD x 132mm L

- upper mounting roller

1шт.

12

61561C1

SPACER

- stop roller

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-5/16 x 1-3/4 x 35/64 inch

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

13

485537R4

SUPPORT

LINK - upper front

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

15

489152R2

BAND

STRAP - load adjusting

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, Grade 8

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

485539R1

PIN

- upper front link

1шт.

17

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

18

485542R5

LEVER

LINK - upper rear, left-hand

1шт.

18

131633C2

LEVER

LINK - upper rear, right-hand

1шт.

19

485543R1

PIN

- upper link center

1шт.

438-31440

PIN,7/32" x 2 1/2", Coiled

1шт.

20

485524R1

PIN

- plow beam

1шт.

438-12040

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.
