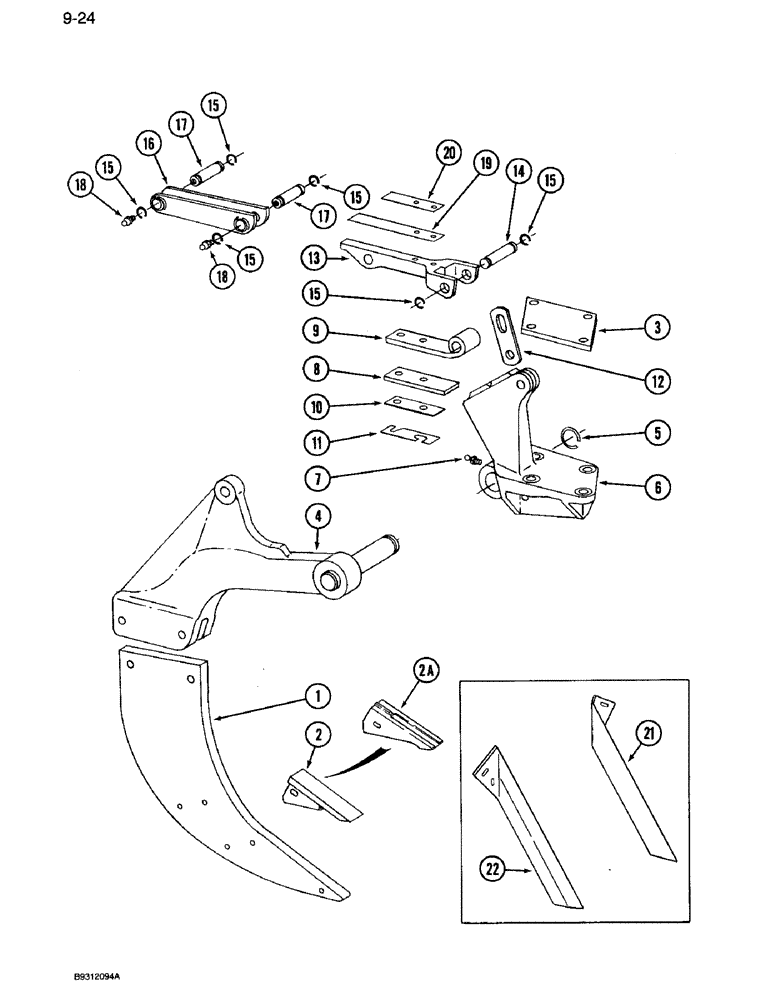

Запчасти Case IH 14 (9-24) - TOGGLE TRIP SHANK UNIT, 14 SUBSOIL CHISEL (09) - CHASSIS/ATTACHMENTS

1

131639C1

SHANK

- toggle trip

1шт.

131641C1

SHIN

- (Available for service to be welded on front of shanks to increase wear life)

1шт.

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

2шт.

2

131636C1

TOOTH

POINT - steel, shank

1шт.

438-32828

PIN,11.1mm OD x 44.45mm L

1шт.

2a

1986114C1

TOOTH

POINT - cast, extended wear, shank

1шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

3

101139C1

BAR

PLATE - top

1шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (9 shank)

2шт.

413-14152

BOLT,Hex, 7/8" - 9 x 9-1/2", Gr 5

- hex, 7/8 NC x 9-1/2 inch (9 shank)

2шт.

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

- hex, 7/8 NC x 6-1/2 inch (5 shank)

2шт.

413-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

- hex, 7/8 NC x 7 inch (5 shank)

2шт.

326968C1

LOCK NUT

- hex lock, special, 7/8 inch NC

4шт.

4

131863C1

BEAM

- shank, right-hand

1шт.

4

131862C1

BEAM

- shank, left-hand

1шт.

5

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

6

131776C1

BRACKET

- mounting, right-hand

1шт.

6

131775C1

BRACKET

- mounting, left-hand

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

8

62431C1

LARGE PLATE

BAR - spring

1шт.

9

62432C1

SPRING

- toggle

1шт.

10

112460C1

SPACER

- shank

1шт.

11

112459C2

SHIM

- .015 inch

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external lock, 3/4 inch

2шт.

12

122999C1

BAR

- restrictor

1шт.

439-51232

HEADED PIN,3/4" x 2"

PIN - headed, 3/4 x 2 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

13

131921C1

LINK

- front toggle

1шт.

14

62430C1

PIN

- front toggle link

1шт.

15

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

6шт.

16

131918C1

LINK

- rear toggle

1шт.

17

131948C1

PIN

- toggle pivot

2шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

19

131919C1

SPRING

- main hold-down

1шт.

20

131920C1

SPRING

- helper hold down

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

21

1284097C1

SUPPORT

WING - shank, left-hand

1шт.

22

1284098C1

SUPPORT

WING - shank, right-hand

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
