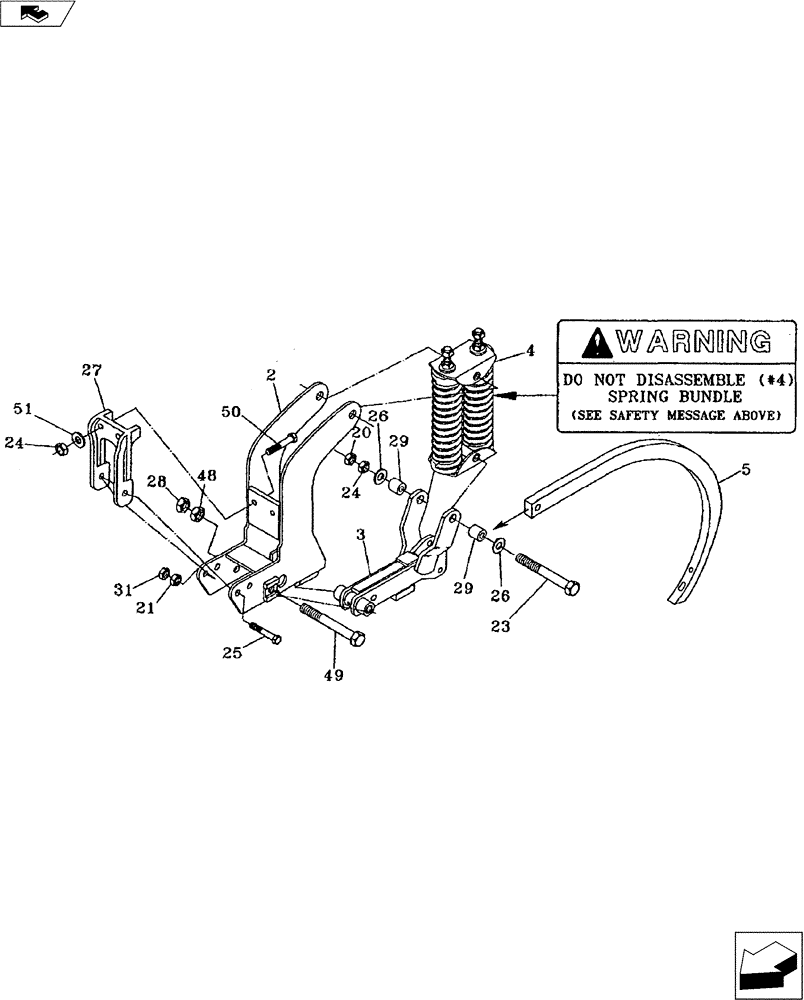

Запчасти Case IH 1300 (75.200.06) - EDGE BENT SHANK (75) - SOIL PREPARATION

2

09651518

MOUNTING PARTS

S/R-12

1шт.

3

09651455

SHANK

S/R-12 Edge Bent Pivot

1шт.

4

09651530

COIL SPRING

S/R-12 Assy.

1шт.

5

33020022

SHANK

1-1/4" x 2" Edge Bent

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

21

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2" NC Gd 5

2шт.

24

495-21069

WASHER,5/8"

NC Hex Nut 5/8"

5шт.

25

16901235

CAPSCREW,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4" x 7-1/2" NC Gd.5

1шт.

26

495-21069

WASHER,5/8"

4шт.

27

09651540

MOUNTING CLIP

Clamp

1шт.

28

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T.

4шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

48

425-1014

NUT,7/8"-9, G5

1шт.

49

16901435

BOLT

7/8" x 7-3/4" NC Hex Gd. 5

1шт.

50

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

51

17411012

WASHER

5/8"

2шт.
