Запчасти Case IH 1300 (39.100.01) - MAIN FRAME(WITH COLTER ATTACHMENT) (39) - FRAMES AND BALLASTING

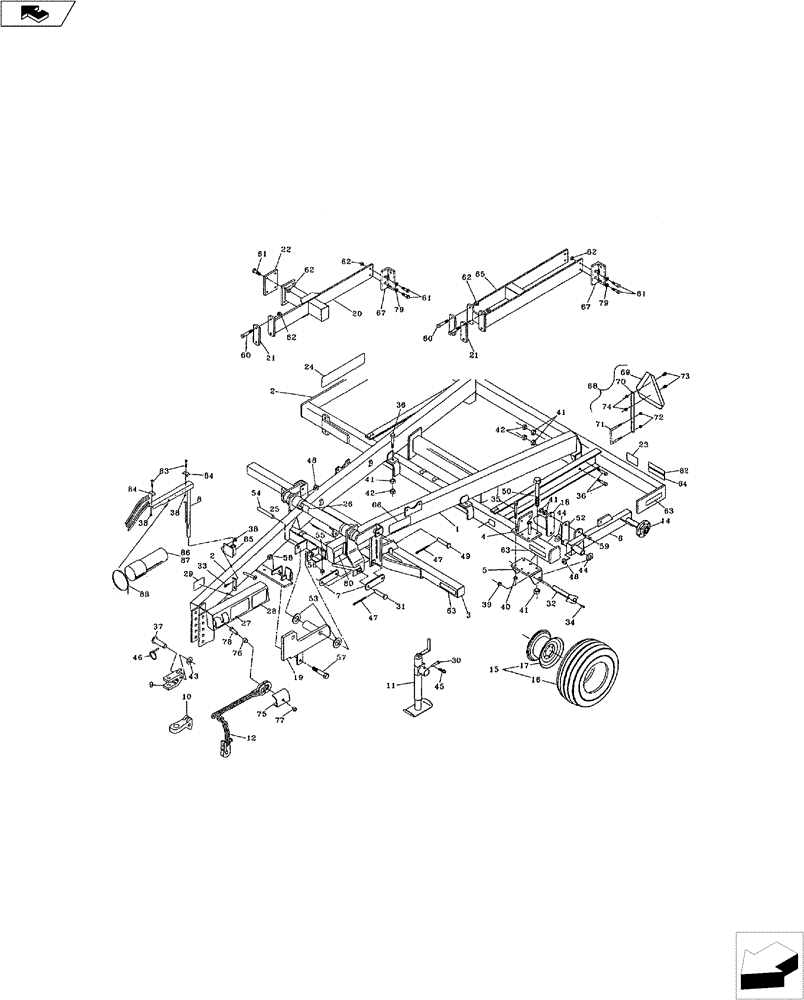

Схема запчастей Case IH 1300 - (39.100.01) - MAIN FRAME(WITH COLTER ATTACHMENT) (39) - FRAMES AND BALLASTING
63
5
33
83
67
39
62
60
12
61
60
20
42
85
41
79
52
56
9
31
29
85
61
66
73
54
30
37
67
75
27
62
61
2
48
50
35
63
46
10
65
24
53
18
40
21
17
41
80
6
86
78
41
15
62
3
11
38
87
88
25
70
23
76
68
14
19
44
43
7
26
49
84
34
16
36
41
77
55
84
47
4
28
45
59
57
63
36
8
64
1
72
69
62
32
2
48
56
38
42
62
79
74
22
21
44
71
47
38

Артикул

Название

Примечание

Количество

1

09576560B

BAR ASSY.

Pull Frame - Blue

1шт.

2

09576200B

BAR ASSY.

Main Frame (7 & 9 Shank) - Blue

1шт.

2

09576250B

BAR ASSY.

Main Frame (11 & 13 Shank) - Blue

1шт.

3

09573100B

SUPPORT

Colter (7 & 9 Shank) - Blue

1шт.

3

09573200B

SUPPORT

Gang Colter (7 & 9 Shank) - Blue

1шт.

3

09573300B

SUPPORT

Colter (11 & 13 Shank) - Blue

1шт.

3

09573400B

SUPPORT

Gang Colter (11 & 13 Shank) - Blue

1шт.

4

09576910

MOUNTING PARTS

Cylinder R.H.

1шт.

4

09576930

MOUNTING PARTS

Cylinder L.H.

1шт.

5

09576175

PIVOT

Wheel

2шт.

6

09650350

AXLE

Spindle Arm R.H. with Hub, 783 Hub

1шт.

6

09650360

AXLE

Spindle Arm L.H. with Hub, 783 Hub

1шт.

7

09964000

LOWER LINK

4шт.

8

05302150

STAND

Swinging Hose

1шт.

9

20092051

CLEVIS

Double

1шт.

10

20092071

ADJUSTABLE CLEVIS

Single

1шт.

11

32230000

JACK

5000 lb

1шт.

12

63506C3

CHAIN (AG)

20,200 Ibf Safety

1шт.

14

28178300

HUB ASSY.

783 6-Bolt

2шт.

15

10010160

WHEEL ASSY.

12.5L x 15 10-Ply Tire, Tubeless - White

2шт.

15

10010164

12.5L x 15 10-Ply (11 & 13 Para. only)

2шт.

15

10010165

12.5L x 15 12-Ply (11 & 13 Para. only)

2шт.

16

NSS

NOT SOLD SEPARAT

12.5L x 15 10-Ply Tire

2шт.

16

NSS

NOT SOLD SEPARAT

12.5Lx 15 12-Ply Tire (11 & 13 Para. only)

2шт.

17

10110154

WHEEL

10 x 15 6-Hole with Guard - White

2шт.

18

09576700

TUBE,79.38" Length

Torque Tube (79-3/8") (7 Shank)

1шт.

18

09576720

TUBE,101.88" Length

Torque Tube (101-7/8") (9 & 13 Shank)

1шт.

18

09576740

TUBE,132.38" Length

Torque Tube (132-3/8") (11 Shank)

1шт.

19

09576760

LINKAGE

Cylinder

1шт.

20

09576880

FRAME, HITCH

Stub Wing (13 Shank only)

2шт.

21

09576610

LINKAGE

Flat

4шт.

22

09100131

WEAR PLATE

2шт.

23

18534261

DECAL

DMI Logo - Blue Units

4шт.

24

18534266

Ecolo-Champ - Blue Units

2шт.

25

18534192

DECAL

Turning

1шт.

26

18534189

DECAL

Depth Indicator

1шт.

27

18534347

WARNING DECAL

Towing Hazard

1шт.

28

18534228

DECAL

Caution Sign

1шт.

29

18534107

DECAL

Patent

1шт.

30

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. x 3-1/8" Clevis

1шт.

31

14816180

HEADED PIN

1 " Dia. x 3" Clevis

4шт.

32

09576180

HITCH PIN

2шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

35

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

6шт.

36

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

8шт.

37

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" Dia. x 5-1/2"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

3/8" NC Hex.

2шт.

39

425-1010

NUT,5/8"-11, G5

NC Hex.

2шт.

40

425-1012

NUT,3/4"-10, G5

NC Hex.

6шт.

41

425-1014

NUT,7/8"-9, G5

NC, Hex.

22шт.

42

425-1414

JAM NUT,Jam, 7/8"-9, G5

NC, Hex.

8шт.

43

17421021

WASHER

1-1/4" Heavy

1шт.

44

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" x 14 Ga. Washer

4шт.

45

14720411

COTTER PIN

PIN, COTTER 1/8" x 2"

1шт.

46

A30338

PIN

1/4" Dia. x 1-3/4" Klik

1шт.

47

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

48

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Straight Zerk

4шт.

49

14816382

SMALL PIN

1" x 3-3/4" Clevis

2шт.

50

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

7/8" x 8-1/2" NC

6шт.

52

09650333

SHIM,.134" Thk

1шт.

53

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machined

1шт.

54

14892066

PIN

1-1/4" x 8-1/2"

1шт.

55

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

NC, Z.P.

1шт.

56

231-4247

LOCK NUT,7/16"-14, GB

NC Hex.

1шт.

57

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

NC, Z.P.

1шт.

58

425-1016

NUT,1"-8, G5

NC, Hex.

1шт.

59

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

NC

4шт.

60

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

NC

24шт.

61

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

NC, Z.P.

20шт.

62

425-1012

NUT,3/4"-10, G5

NC, Hex.

28шт.

63

311864A1

REFLECTOR

Amber Strip

6шт.

64

311863A1

REFLECTOR

Red Strip

1шт.

65

09576890

SHANK

Inner Mount (9, 11 & 13 Shank Only)

2шт.

66

18534333

DANGER DECAL

Pinch

2шт.

67

09576875

ANGLE

6шт.

68

18584000

WARNING SIGN

SMV Kit, Includes Items 69-74

1шт.

69

311860A1

EMBLEM

SMV

1шт.

70

06000099

BRACE

SMV

1шт.

71

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

1шт.

72

231-4246

LOCK NUT,3/8"-16, GB

NC, Hex.

2шт.

73

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

74

86992211

NUT

1/4" Hex.

2шт.

75

04681210

BRACKET

1шт.

76

04681211

BUSHING

Spacer

1шт.

77

86992219

LOCK NUT

1" NC

1шт.

78

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

1шт.

79

17413011

WASHER

3/4" Heavy

12шт.

80

18534277

DECAL

Warning - Spring Compression

1шт.

82

311865A1

REFLECTOR

Fluorescent Strip

2шт.

83

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

NC

1шт.

83

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

NC

1шт.

84

06200125

HOSE CLAMP

2шт.

85

09983458

BAR ASSY.

Hose Boom

1шт.

86

30026030

TUBE

Canister

1шт.

88

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

Выбрано товаров: 96
