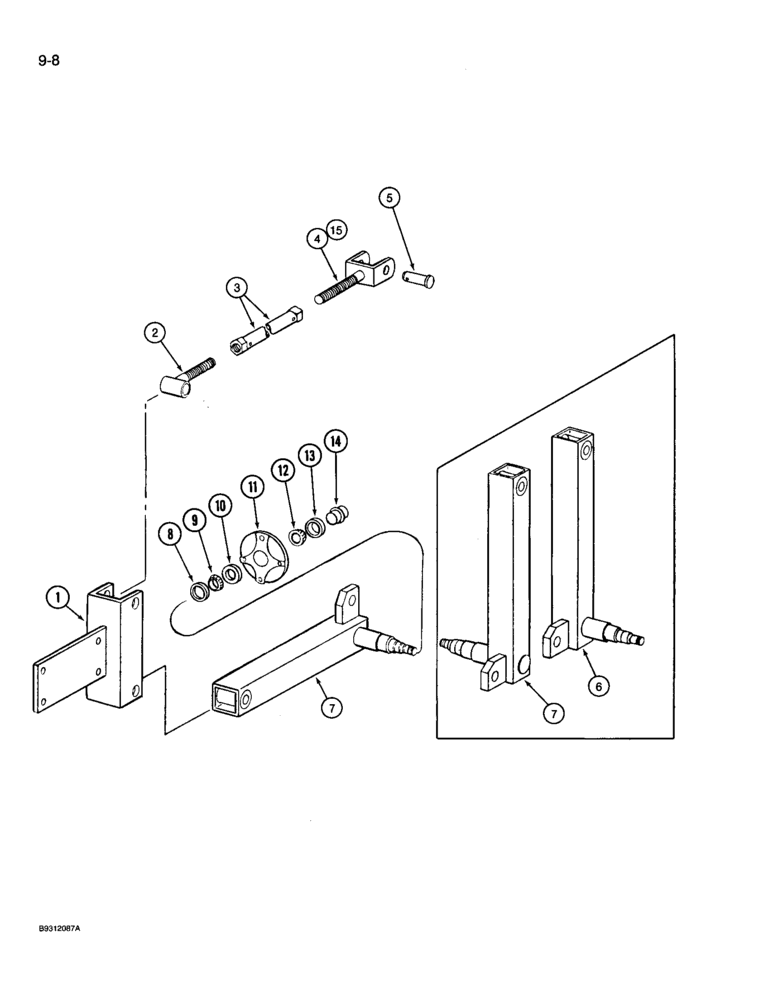

Запчасти Case IH 10 (9-08) - GAUGE WHEEL ATTACHMENT, 10 SUBSOIL CHISEL, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

1

964229R1

SUPPORT

BRACKET - mounting, gauge wheel

2шт.

424-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 2

- hex, 5/8 NC x 2-1/2 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

- hex, 1 NC x 5-1/2 inch

4шт.

23443R1

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1 inch NC

4шт.

2

964266R2

END

CLEVIS - right hand thread

2шт.

3

480249R1

TRUSS ROD

TURNBUCKLE - landing yoke

2шт.

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

425-1416

JAM NUT,Jam, 1"-8, G5

- hex jam, 1 inch

2шт.

4

488287R1

FORK

CLEVIS left-hand thread, no longer available, order: Ref.15, P/N 1344919C1

2шт.

488288R1

FORK

CLEVIS right-hand

1шт.

5

955521R1

PIN

- clevis

2шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (Replaced 20341R1) 1/4" x 2"

2шт.

6

96159C1

STEERING KNUCKLE

ARM - wheel, left-hand

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - slotted hex, 3/4 inch NF

2шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

7

96160C1

STEERING KNUCKLE

ARM - wheel, right-hand

1шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil, wheel hub

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, inner

2шт.

10

651817R1

BEARING CUP

CUP - bearing, inner

2шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

11

810087C2

HUB

- wheel, 6-Bolt

2шт.

11

591535R1

HUB

- wheel, 4-Bolt

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

472222R1

SLEEVE

- oil seal

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING - tapered roller, outer

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651814R1

BEARING CUP

CUP - bearing, outer

2шт.

14

B13280

HUB CAP

CAP - wheel hub

2шт.

T53527

WHEEL

RIM - wheel, 15 x 5 inch

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

425-1010

NUT,5/8"-11, G5

8шт.

15

1344919C1

CLEVIS

- left-hand thread

2шт.
