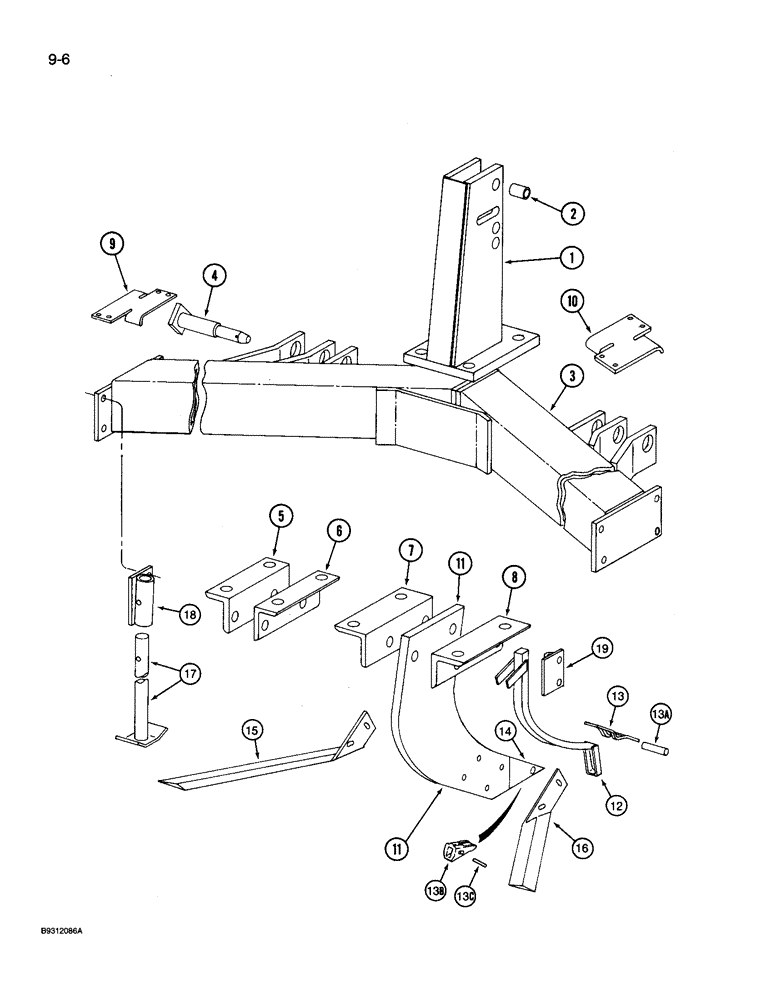

Запчасти Case IH 10 (9-06) - MAST AND FRAME, 10 SUBSOIL CHISEL, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

14

952121R1

POINT

TIP - replacement (to be welded to shank) (5 shank)

5шт.

14

952121R1

POINT

TIP - replacement (to be welded to shank) (7 shank)

7шт.

14

952121R1

POINT

TIP - replacement (to be welded to shank) (9 shank)

9шт.

15

1284097C1

SUPPORT

WING - shank, left-hand (5 shank)

5шт.

15

1284097C1

SUPPORT

WING - shank, left-hand (7 shank)

7шт.

15

1284097C1

SUPPORT

WING - shank, left-hand (9 shank)

9шт.

16

1284098C1

SUPPORT

WING - shank, right-hand (5 shank)

5шт.

16

1284098C1

SUPPORT

WING - shank, right-hand (7 shank)

7шт.

16

1284098C1

SUPPORT

WING - shank, right-hand (9 shank)

9шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, (5 shank)(Replaces 17576R1)

10шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, (7 shank)(Replaces 17576R1)

14шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, (9 shank)(Replaces 17576R1)

18шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (5 shank) 1/2"-13, G5

20шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (7 shank) 1/2"-13, G5

28шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (9 shank) 1/2"-13, G5

36шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (5 shank) 1/2"

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (7 shank) 1/2"

14шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (9 shank) 1/2"

18шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (5 shank) (Replaces 103343) 1/2", SAE

20шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (7 shank) (Replaces 103343) 1/2", SAE

28шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (9 shank) (Replaces 103343) 1/2", SAE

36шт.

17

953958R2

STAND

- support

2шт.

439-1834

HEADED PIN,1/2" x 2 1/8"

PIN - clevis, 1/2 x 2-1/4 inch (Replaces 465867R1)

2шт.

1978738C1

HAIR PIN COTTER

2шт.

18

953955R1

SUPPORT

HOLDER - support stand, left-hand

1шт.

19

953956R1

SUPPORT

HOLDER - support stand, right-hand

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.
