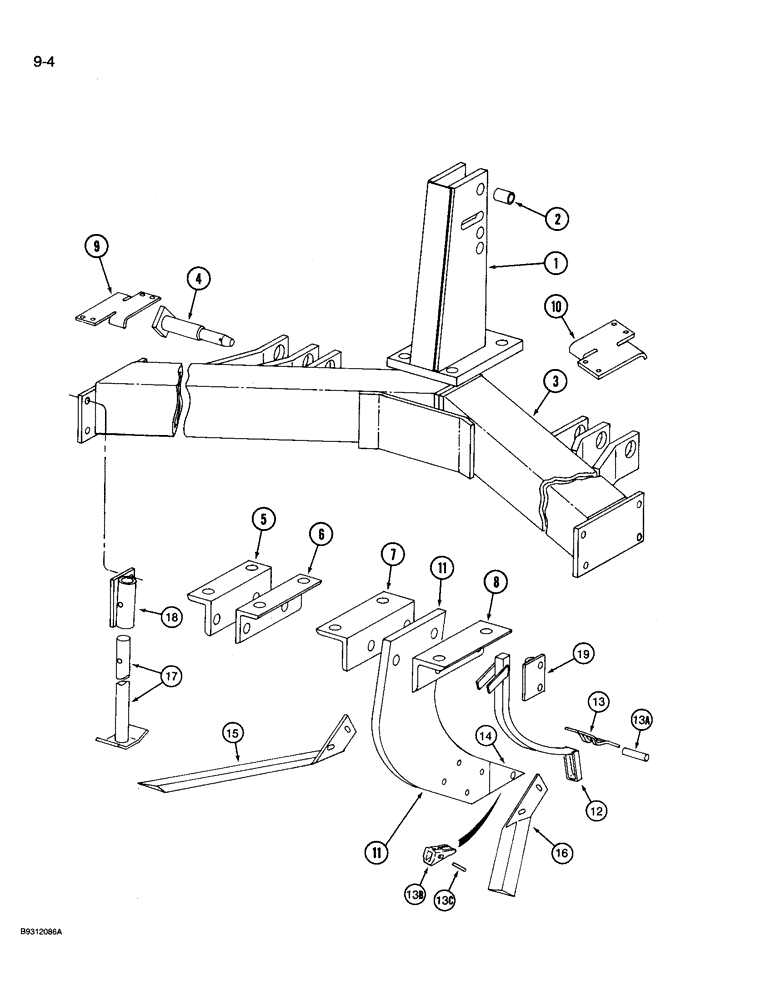

Запчасти Case IH 10 (9-04) - MAST AND FRAME, 10 SUBSOIL CHISEL, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

11

964354R2

TOOTH

SHANK - 33 inch (9 shank)

9шт.

424-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 2

- hex, 7/8 NC x 3-1/2 inch, Grade 1 (5 shank)

10шт.

424-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 2

- hex, 7/8 NC x 3-1/2 inch, Grade 1 (7 shank)

14шт.

424-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 2

- hex, 7/8 NC x 3-1/2 inch, Grade 1 (9 shank)

18шт.

425-1014

NUT,7/8"-9, G5

NUT, (5 shank) 7/8"-9, G5

10шт.

425-1014

NUT,7/8"-9, G5

NUT, (7 shank) 7/8"-9, G5

14шт.

425-1014

NUT,7/8"-9, G5

NUT, (9 shank) 7/8"-9, G5

18шт.

492-11088

LOCK WASHER,7/8"

(5 shank) 7/8"

10шт.

492-11088

LOCK WASHER,7/8"

(7 shank) 7/8"

14шт.

492-11088

LOCK WASHER,7/8"

(9 shank) 7/8"

18шт.

12

964352R1

SHIN

- 27 inch shank (5 shank)

5шт.

12

964352R1

SHIN

- 27 inch shank (7 shank)

7шт.

12

964352R1

SHIN

- 27 inch shank (9 shank)

9шт.

12

1995568C1

SHIN

- 30 inch shank (5 shank)

5шт.

12

1995568C1

SHIN

- 30 inch shank (7 shank)

7шт.

12

1995568C1

SHIN

- 30 inch shank (9 shank)

9шт.

12

964356R1

SHIN

- 33 inch shank (5 shank)

5шт.

12

964356R1

SHIN

- 33 inch shank (7 shank)

7шт.

12

964356R1

SHIN

- 33 inch shank (9 shank)

9шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch (5 shank)

5шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch (7 shank)

7шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch (9 shank)

9шт.

492-11038

LOCK WASHER,3/8"

(5 shank) 3/8"

5шт.

492-11038

LOCK WASHER,3/8"

(7 shank) 3/8"

7шт.

492-11038

LOCK WASHER,3/8"

(9 shank) 3/8"

9шт.

425-106

NUT,3/8"-16, Cl 5

(5 shank) 3/8"-16, G5

5шт.

425-106

NUT,3/8"-16, Cl 5

(7 shank) 3/8"-16, G5

7шт.

425-106

NUT,3/8"-16, Cl 5

(9 shank) 3/8"-16, G5

9шт.

13

954530R2

POINT

- steel, scarifier (5 shank)

5шт.

13

954530R2

POINT

- steel, scarifier (7 shank)

7шт.

13

954530R2

POINT

- steel, scarifier (9 shank)

9шт.

13a

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

(5 shank) (replaces 18552R1) 7/32" x 2", Coiled

5шт.

13a

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

(7 shank) (replaces 18552R1) 7/32" x 2", Coiled

7шт.

13a

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

(9 shank) (replaces 18552R1) 7/32" x 2", Coiled

9шт.

13a

438-32432

PIN,9.53mm OD x 50.8mm L

(5 shank) (replaces 577247R1) 3/8" x 2", Coiled

5шт.

13a

438-32432

PIN,9.53mm OD x 50.8mm L

(7 shank) (replaces 577247R1) 3/8" x 2", Coiled

7шт.

13a

438-32432

PIN,9.53mm OD x 50.8mm L

(9 shank) (replaces 577247R1) 3/8" x 2", Coiled

9шт.

13b

1986110C1

POINT

- cast, extended wear, scarifier (5 shank)

5шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

13b

1986110C1

POINT

- cast, extended wear, scarifier (7 shank)

7шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

13b

1986110C1

POINT

- cast, extended wear, scarifier (9 shank)

9шт.

Refer to Service Bulletin NTE SB 044-96 on chisel and ripper point replacement and wear angle.

1шт.

13c

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, (5 shank) 3/8" x 2 1/2", Slotted

5шт.

13c

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, (7 shank) 3/8" x 2 1/2", Slotted

7шт.

13c

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, (9 shank) 3/8" x 2 1/2", Slotted

9шт.

FOOTNOTE

1шт.

NOTE:REFER TO SERVICE BULLETIN NTE SB 044-96 ON CHISEL AND RIPPER POINT REPLACEMENT & WEAR ANGLE,ITEM#13B.

1шт.
