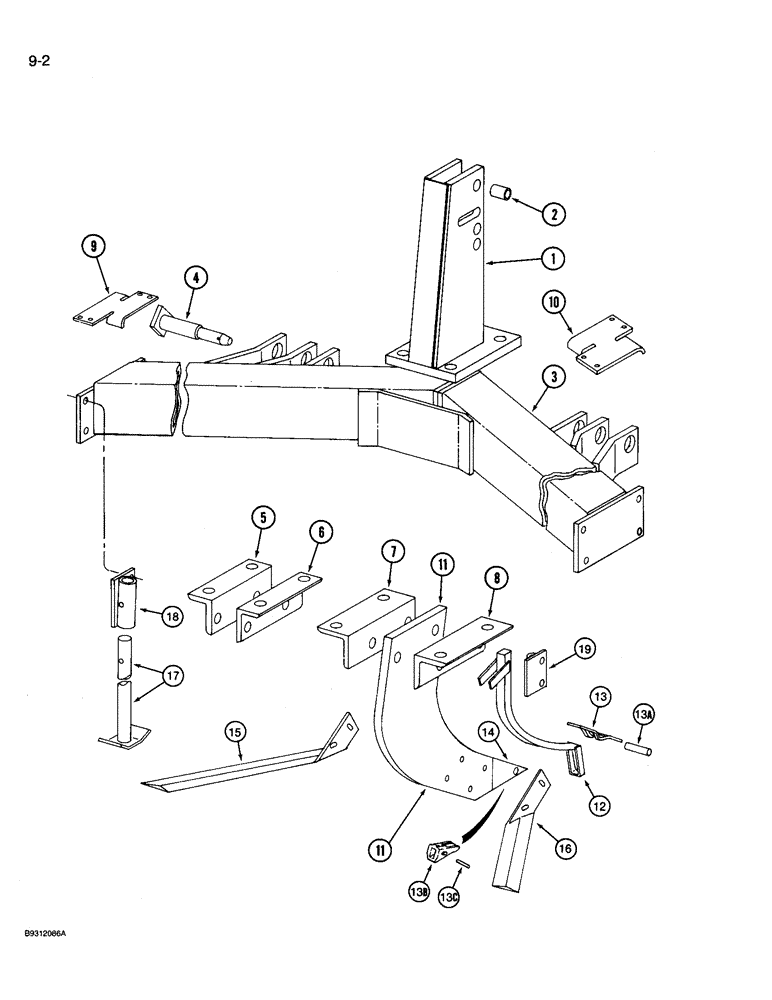

Запчасти Case IH 10 (9-02) - MAST AND FRAME, 10 SUBSOIL CHISEL, 5, 7 AND 9 SHANK (09) - CHASSIS/ATTACHMENTS

1

964142R1

SUPPORT

MAST - hitch

1шт.

413-18152

BOLT,Hex, 1-1/8" - 7 x 9-1/2", Gr 5

- hex, 1-1/8 NC x 9-1/2 inch

4шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

4шт.

492-11112

LOCK WASHER,1 1/8"

1 1/8"

4шт.

2

964348R1

BUSHING

- upper link

1шт.

495-81080

WASHER,1 1/32" x 3" x .240"

- flat, 1-1/64 x 3-17/64 x 3/16 inch, replaced by 495-21106

1шт.

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

1шт.

3

964342R1

FRAME

- vee (5 shank)

1шт.

3

964341R1

CHASSIS

FRAME - vee (7 shank)

1шт.

3

964144R1

FRAME

- vee (9 shank)

1шт.

4

957091R1

PIN

- lower link

2шт.

372907R91

LINCH PIN

PIN - hitch

2шт.

5

964140R1

ANGLE BAR

ANGLE - shank center, left-hand

1шт.

6

964139R1

ANGLE BAR

ANGLE - shank center, right-hand

1шт.

7

964138R1

ANGLE BAR

ANGLE - shank support, inside (5 shank)

4шт.

7

964138R1

ANGLE BAR

ANGLE - shank support, inside (7 shank)

6шт.

7

964138R1

ANGLE BAR

ANGLE - shank support, inside (9 shank)

8шт.

8

964137R1

ANGLE BAR

ANGLE - shank support, outside (5 shank)

4шт.

8

964137R1

ANGLE BAR

ANGLE - shank support, outside (7 shank)

6шт.

8

964137R1

ANGLE BAR

ANGLE - shank support, outside (9 shank)

8шт.

9

964346R1

LARGE PLATE

PLATE - clamping, left-hand (5 shank)

2шт.

9

964346R1

LARGE PLATE

PLATE - clamping, left-hand (7 shank)

3шт.

9

964346R1

LARGE PLATE

PLATE - clamping, left-hand (9 shank)

4шт.

10

964347R1

LARGE PLATE

PLATE - clamping, right-hand (5 shank)

2шт.

10

964347R1

LARGE PLATE

PLATE - clamping, right-hand (7 shank)

3шт.

10

964347R1

LARGE PLATE

PLATE - clamping, right-hand (9 shank)

4шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (5 shank)

16шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (7 shank)

24шт.

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

- hex, 7/8 NC x 8-1/2 inch (9 shank)

32шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

11

964353R2

SHANK

5, 27 inch, stands 24 inches tall

5шт.

11

964353R2

SHANK

7, 27 inch, stands 24 inches tall

7шт.

11

964353R2

SHANK

9, 27 inch, stands 24 inches tall

9шт.

11

1986061C1

TOOTH

5, 30 inch, stands 27.2 inches tall

5шт.

11

1986061C1

TOOTH

7, 30 inch, stands 27.2 inches tall

7шт.

11

1986061C1

TOOTH

9, 30 inch, stands 27.2 inches tall

9шт.

11

964354R2

TOOTH

5, 33 inch, stands 30 inches tall

5шт.

11

964354R2

TOOTH

7, 33 inch, stands 30 inches tall

7шт.

124762A2

SHANK

30 inch, stands 27.95 inches tall

1шт.
