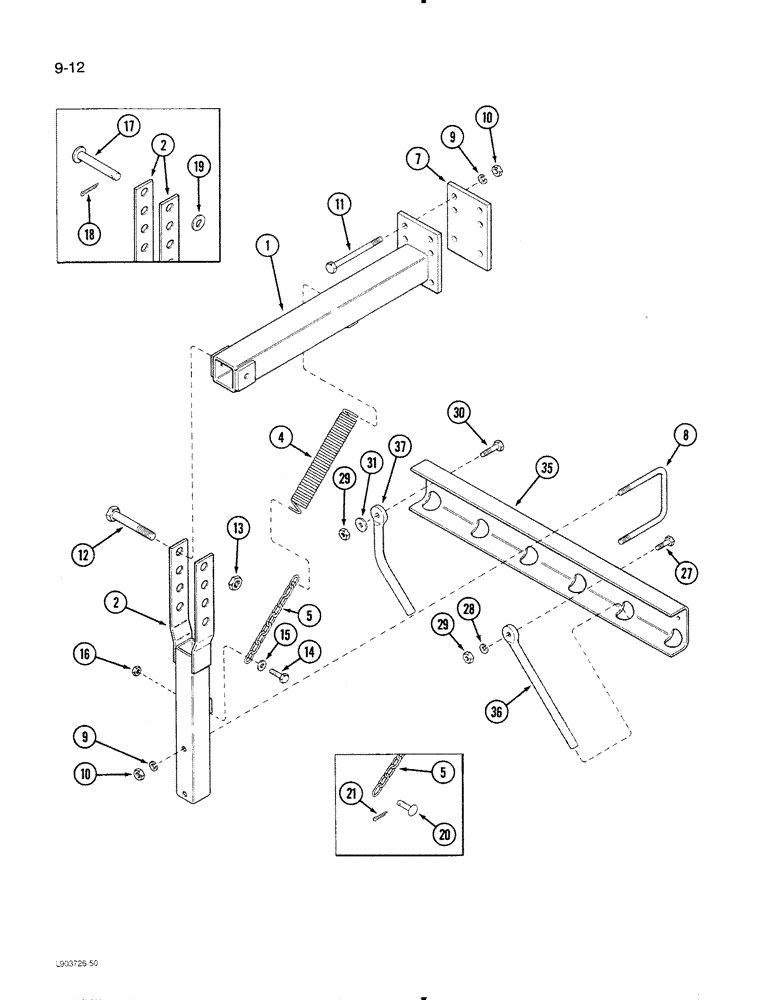

Запчасти Case IH CASE IH (9-12) - PEG TOOTH MULCHER

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

Used on all straight teeth and angle tooth on right mulcher sections.

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

30

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

Used on angle tooth on left mulcher sections only.

1шт.

31

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

Used on angle tooth on left mulcher sections only.

1шт.

35

814950C1

CHANNEL

- 6 tooth 2.94 ft (0.9 m) (Shown)

1шт.

35

811172C1

CHANNEL

- lO tooth, 4.92 ft (1.5 m)

1шт.

35

811173C1

CHANNEL

- 12 tooth 5.91 ft (1.8 m)

1шт.

35

811174C1

CHANNEL

- 14 tooth 6.89 ft (2.1 m)

1шт.

35

811175C1

CHANNEL

- 16 tooth 7.87 ft (2.4 m)

1шт.

35

810696C1

CHANNEL

- 18 tooth, 8.86 ft (2.7 m)

1шт.

36

811171C1

BAR

TOOTH - peg, straight

1шт.

37

810869C2

TOOTH

- peg, angle

1шт.
