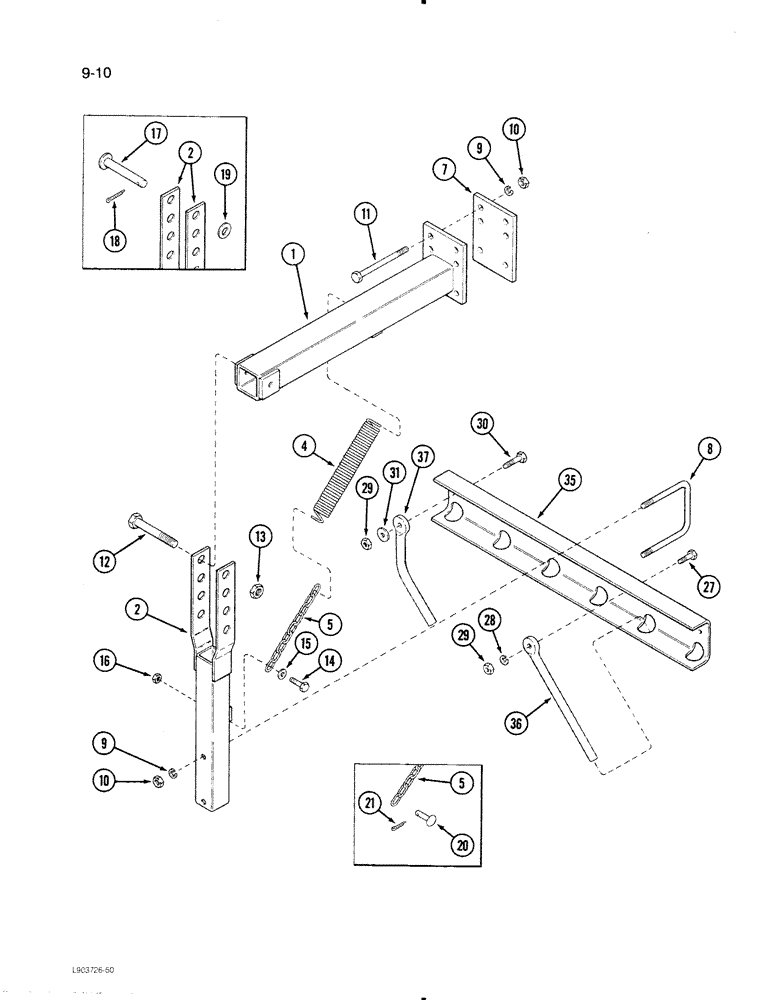

Запчасти Case IH CASE IH (9-10) - PEG TOOTH MULCHER

1

810928C1

SUPPORT ASSY.

TUBE - mulcher support

1шт.

2

810932C3

TUBE

ASSEMBLY - mulcher arm (Shown)

1шт.

Used on 4500, 4600, and 4800 Vibra Shank; 4700 and 4900 Vibra Tiller; 5000 Vibra Chisel; and 5500 RC and 5600 Chisel plows.

1шт.

2

810933C3

TUBE

ASSEMBLY - mulcher arm

1шт.

Used on 5500 HC and 5700 Chisel Plow.

1шт.

4

810905C2

SPRING

- tension

1шт.

5

814994C2

CHAIN (AG)

CHAIN- tension (Shown)

2шт.

Used on 4500, 4600, and 4800 Vibra Shank; 4700 and 4900 Vibra Tiller; 5000 Vibra Chisel; and 5500 RC and 5600 Chisel plows.

1шт.

5

814995C1

CHAIN (AG)

CHAIN - tension

1шт.

Used on 5500 HC and 5700 Chisel Plow.

1шт.

7

811182C1

BAR

- plate, clamping

1шт.

8

811990C2

U-BOLT,5/8" - 11 x 5 1/2"

- mulcher mounting

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

10

425-1010

NUT,5/8"-11, G5

6шт.

11

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 x 6 inch

4шт.

12

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 x 5 inch

1шт.

13

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC, Grade 8

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

15

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

16

231-4116

NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC, Grade 8

1шт.

17

810954C1

PIN

- support tube pivot (if equipped)

1шт.

18

471194R1

AXLE PIN

PIN - cotter (if equipped)

1шт.

19

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch (if equipped)

1шт.

20

379990R1

HEADED PIN

PIN - headed, 3/8 x 2 inch (if equipped)

1шт.

21

432-816

COTTER PIN,1/8" x 1"

if equipped 1/8" x 1"

1шт.
