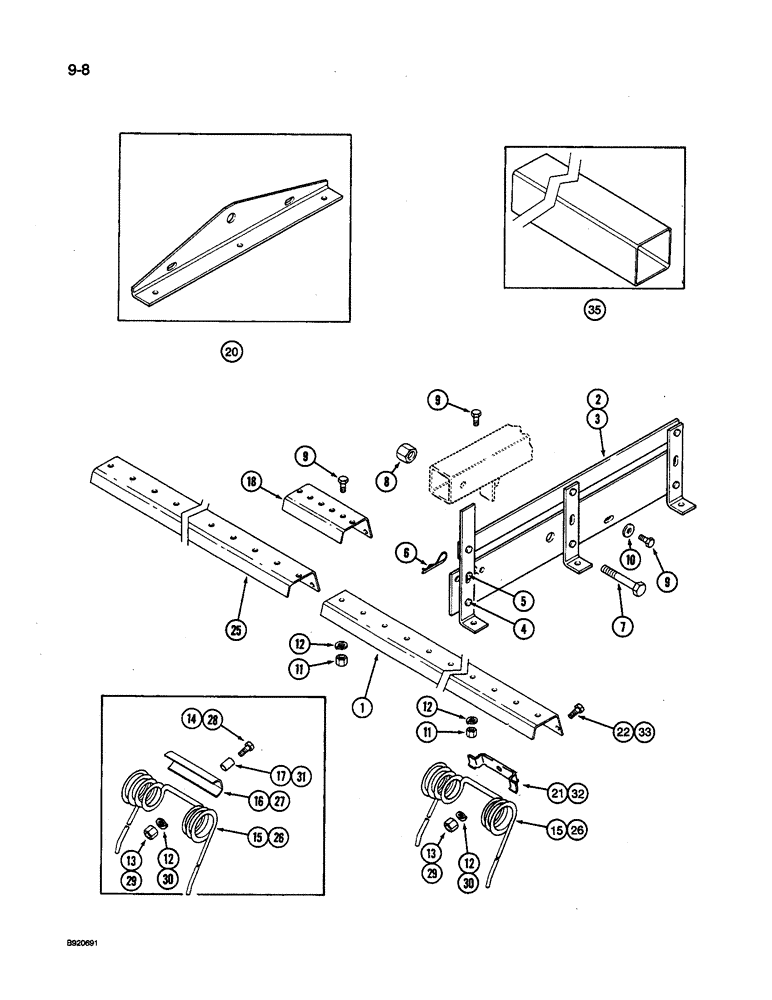

Запчасти Case IH CASE IH (9-08) - ADJUSTABLE COIL TINE MULCHER

25

814029C2

CHANNEL

- mulcher extension

3шт.

26

814800C1

TOOTH

- mulcher, spring

3шт.

27

814811C1

CLAMP

- spring tooth (two bolt configuration)

3шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used with item 27) Hex, 3/8"-16 x 1 3/4", G5

6шт.

29

425-106

NUT,3/8"-16, Cl 5

(Used with item 27) 3/8"-16, G5

6шт.

30

492-11038

LOCK WASHER,3/8"

(used with item 27) 3/8"

6шт.

31

814812C1

SPACER

- spring tooth (used with item 27)

6шт.

32

1995845C1

CLAMP

- spring tooth (single bolt configuration)

3шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Used with item 32)

3шт.

34

231-5146

FLANGE NUT,3/8"-16

Used with item 32 Flg, USR, 3/8"-16

3шт.

35

810409C2

TUBE,155.4 mm Length

- extension, 4 x 4 inch

2шт.
