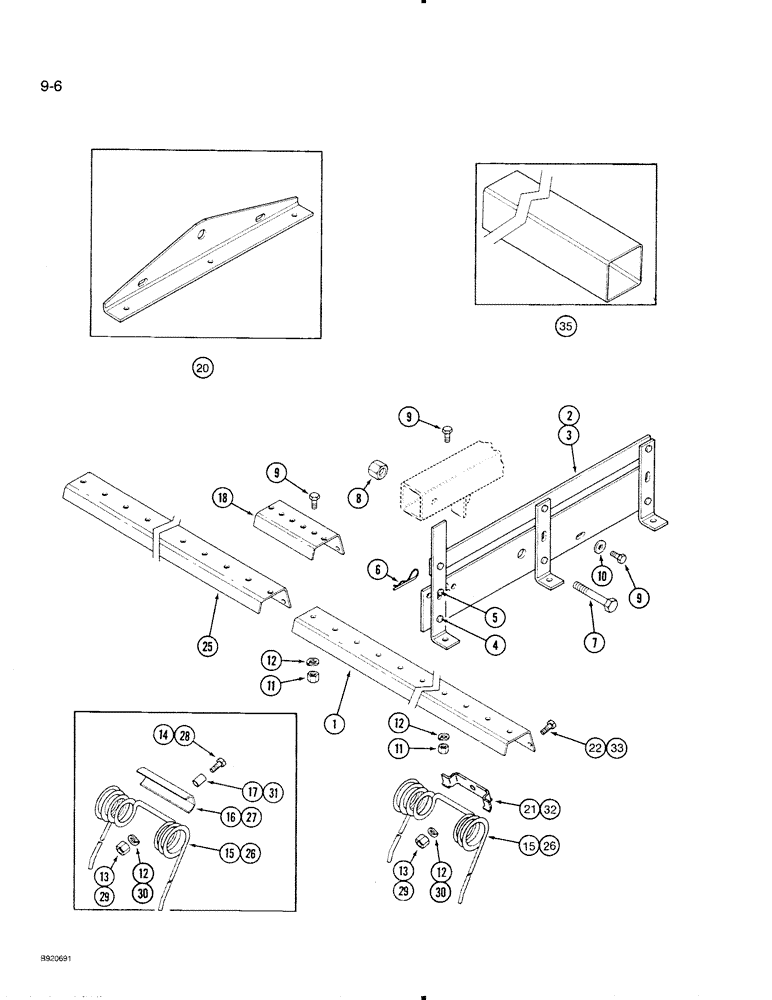

Запчасти Case IH CASE IH (9-06) - ADJUSTABLE COIL TINE MULCHER

1

814813C3

CHANNEL

- 3 tooth, 980mm, 3.2 ft (Shown)

3шт.

1

814814C3

CHANNEL

- 4 tooth, 1360mm, 4.5 ft

3шт.

1

814815C3

CHANNEL

- 5 tooth, 1740mm, 5.7 ft

3шт.

1

814835C3

CHANNEL

- 6 tooth, 2120mm, 6.96 ft

3шт.

2

1333731C1

BAR

ASSEMBLY - adjustable, left (Includes items 4, 5, and 6)

2шт.

3

1333732C1

NUT

BAR ASSEMBLY - adjustable, right

2шт.

4

121233C1

RIVET,20mm OD x 29mm L

RIVET - step

6шт.

5

439-5616

HEADED PIN,3/8" x 1"

PIN - headed, 3/8 x 1 inch

1шт.

6

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - cotter, 1/8 inch

1шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

8

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

10

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC

1шт.

12

492-11038

LOCK WASHER,3/8"

(used with item 16) 3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

(Used with item 16) 3/8"-16, G5

1шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used with item 16) Hex, 3/8"-16 x 1 3/4", G5

1шт.

15

814800C1

TOOTH

- mulcher, spring

1шт.

16

814811C1

CLAMP

- spring tooth, (two bolt configuration)

1шт.

17

814812C1

SPACER

- spring tooth (used with item 16)

1шт.

18

814816C2

CHANNEL

- mulcher connecting

3шт.

20

814806C1

SUPPORT

- channel (If equipped)

2шт.

21

1995845C1

CLAMP

- spring tooth (single bolt configuration)

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (used with item 21)

1шт.

23

231-5146

FLANGE NUT,3/8"-16

Used with item 21 Flg, USR, 3/8"-16

1шт.
