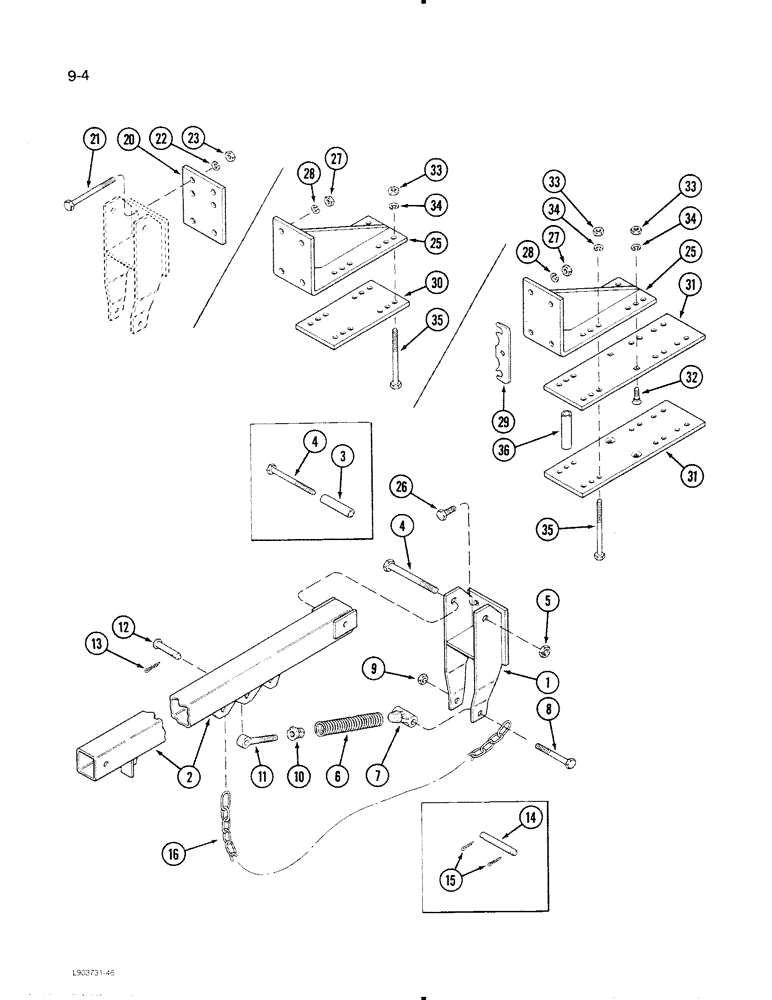

Запчасти Case IH CASE IH (9-04) - ADJUSTABLE COIL TINE MULCHER

20

814808C2

BAR

- bracket mounting

1шт.

21

461723R1

BOLT,5/8" - 11 x 6", Grade 5

- hex, special, 5/8 NC x 6 inch

4шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

25

810915C1

BRACKET

- mounting

1шт.

26

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

27

425-1010

NUT,5/8"-11, G5

4шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

29

810909C1

WEDGE

- alignment

1шт.

30

810914C1

BAR

- mounting

1шт.

Used on 350, 370, 475, 496, 3800, and 3900 Disk Harrows.

1шт.

31

810917C1

BAR

- mounting

2шт.

Used on 480, 485, and 501 Disk Harrows.

1шт.

32

419-31036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - flat head square neck, 5/8 NC x 2-1/4 inch

2шт.

33

425-1010

NUT,5/8"-11, G5

4шт.

34

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

35

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

36

665220R1

SPACER,3/4" X-Strng Pipe x 3 7/8"

- 3/4 X 3-7/8 inch

1шт.
