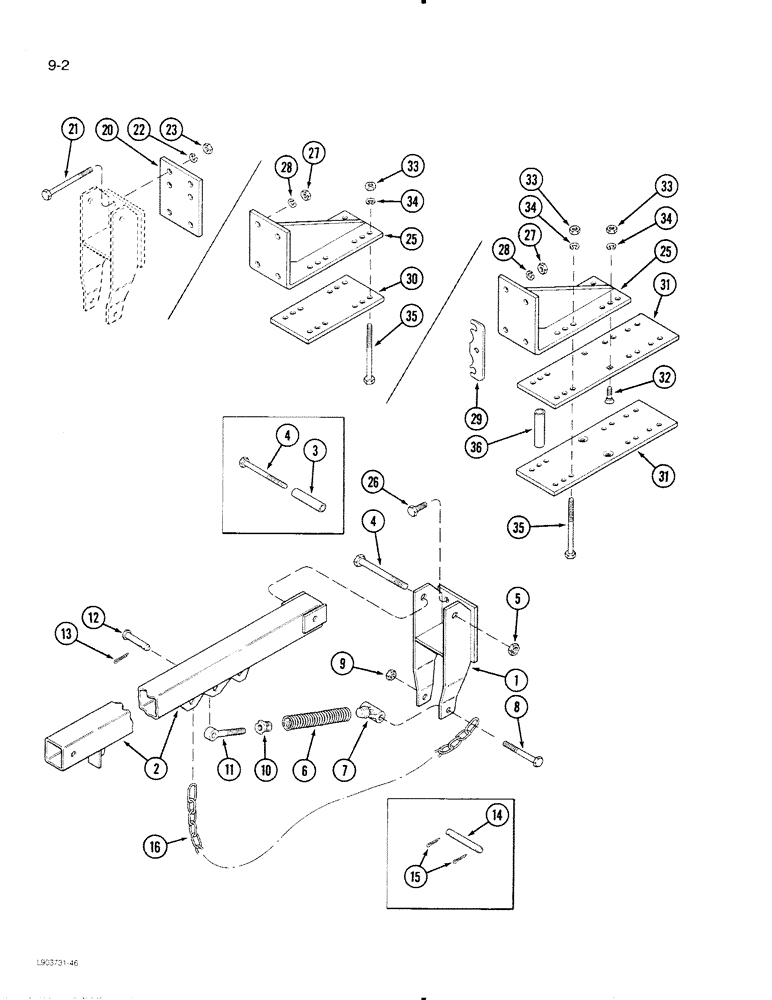

Запчасти Case IH CASE IH (9-02) - ADJUSTABLE COIL TINE MULCHER

1

814810C2

BRACKET

- mulcher attaching

1шт.

2

814802C2

ARM

- carrier

1шт.

3

814832C1

SPACER

- carrier arm pivot (if equipped)

1шт.

4

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

4

814836C1

BOLT

- hex, 3/4 NC x 5-1/2 inch, (if equipped, used with item 3)

1шт.

5

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

6

814840C1

SPRING

- carrier arm

1шт.

7

814801C1

PLUG

- spring, lower

1шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

9

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

10

814837C1

PLUG

- spring, upper

1шт.

11

814839C1

BOLT,3/4" - 10 x 120mm

- eye, spring adjusting

1шт.

12

520277R1

PIN

- pointed head, 5/8 x 2-7/8 inch

1шт.

13

432-1216

COTTER PIN,3/16" x 1"

1шт.

14

814818C1

PIN

- spring pivot (if equipped)

1шт.

15

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch (if equipped)

2шт.

16

813594C1

CHAIN (AG)

CHAIN - support attachment (For use on double fold machines and wings folding over 90 degrees with single arms)

2шт.
