Запчасти Case IH TYLER (08-007) - LIQUID PLUMBING (750 GAL. SPHERICAL TANK) TYLER SPRAYER 90 BOOM WITH DICKEY-JOHN CONTROLLER Liquid Plumbing

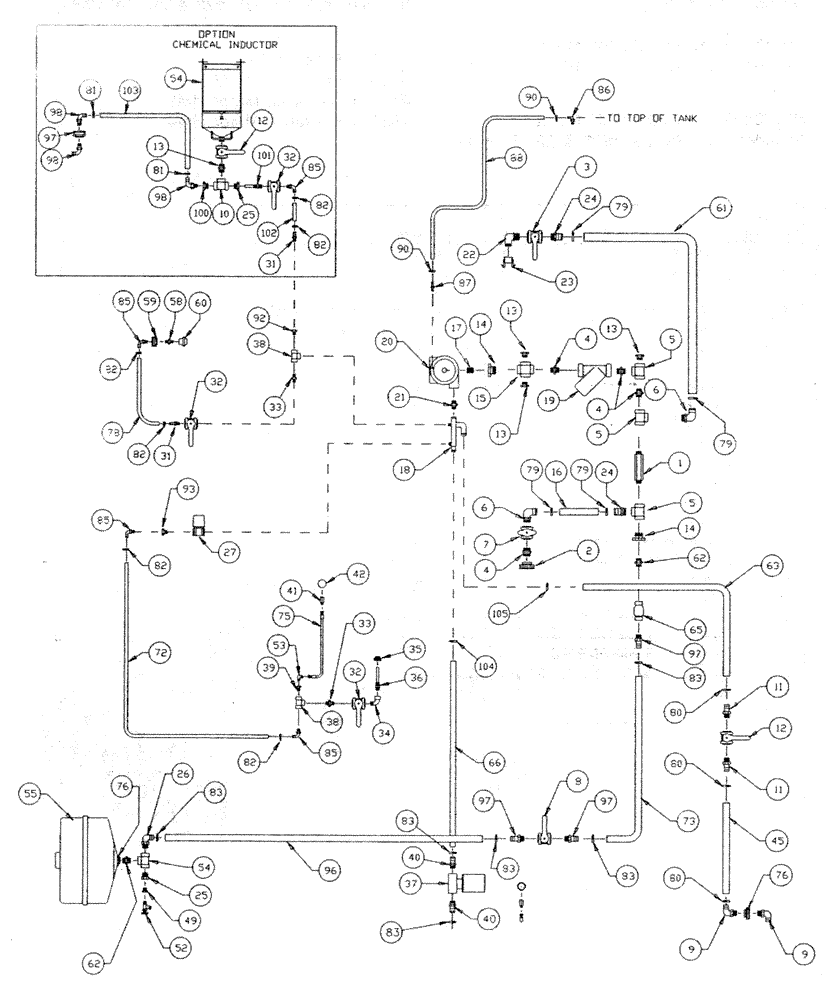

Схема запчастей Case IH TYLER - (08-007) - LIQUID PLUMBING (750 GAL. SPHERICAL TANK) TYLER SPRAYER 90 BOOM WITH DICKEY-JOHN CONTROLLER Liquid Plumbing
24
90
35
97
39
53
10
6
15
54
92
4
6
19
45
73
9
58
32
82
13
85
42
5
12
62
97
97
79
93
41
4
104
82
7
82
79
5
32
23
38
61
75
96
16
18
27
40
54
17
2
13
13
85
59
98
31
79
81
9
72
32
79
80
90
36
80
1
37
20
60
11
85
3
100
21
55
13
12
26
87
31
83
102
93
97
98
25
98
22
5
34
52
11
38
82
14
101
83
86
66
76
83
81
76
62
40
32
33
33
4
105
103
80
88
8
63
78
24
25
93
82
83
49
85
14
65

Артикул

Название

Примечание

Количество

1

BN73786

NIPPLE

2" x 4"

1шт.

2

BN73784

FITTING

Bulkhead - 2"

1шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

4

BN73783

NIPPLE

2"

3шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

7

BN73795

VALVE,Full Port; 2 Inch; T Handle

Ball - 2"

1шт.

8

BN73658

VALVE,1-1/4" Full Port Valve

Ball, 1-1/4", poly

1шт.

9

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

13

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

3шт.

14

BN73787

SLEEVE

Bushing - 2"-1 1/2"

2шт.

15

BN73791

CROSS

2"

1шт.

16

BN65559

HOSE

2" EPDM x 9.00"

1шт.

17

BN73320

NIPPLE

1-1/2" SS

1шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73792

FILTER STRAINER,2" NPT, 30 Mesh

2" NPT - 30 Mesh Poly

1шт.

BN24084

FILTER STRAINER

30 Mesh for BN73718

1шт.

20

NSS

NOT SOLD SEPARAT

Pump

1шт.

See Fig. 08-008 for Seals & Repair Parts

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN25262

ELBOW

90°, 2" NPT

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

25

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1-1/4" x 3/4"

1шт.

26

BN72663

Barb - 90° 1-1/4"

1шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

31

BN73561

FITTING

Barb - 3/4"

1шт.

32

BN73564

VALVE

Ball - 3/4"

2шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

2шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

35

BN73563

BULKHEAD

1шт.

36

BN53671

AGITATOR

1шт.

37

BN98127

HYDRAULIC VALVE

DICKEY-john® Servo

1шт.

38

BN73560

TEE

3/4"

2шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

2шт.

41

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

42

BN98104

ELECTRICAL GAUGE

100 PSI

1шт.

45

BN53887

HOSE,84.00"

1шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

49

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

3/4" x 1/2"

1шт.

52

BN53817

DRAIN VALVE

1/2" Plastic

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

54

BN73662

TEE

1-1/4"

1шт.

55

BN24189

TANK

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

1шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

59

BN73563

BULKHEAD

1шт.

60

29568

NOZZLE

Rinse 360 Degree

1шт.

61

BN53881

2" x 45"

1шт.

62

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

Reducer, 1.25 x 1.5

2шт.

63

BN29851

HOSE

1-1/2" x 31"

1шт.

65

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

66

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

71

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

72

BN53915

HOSE,0.75" ID x 32.00"

1шт.

73

BN53930

HOSE,68.00"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

2шт.

78

BN53931

HOSE,130.00"

1шт.

79

BN76056

HOSE CLAMP

#36

4шт.

80

BN76093

HOSE CLAMP

#28

3шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

4шт.

83

BN76084

HOSE CLAMP

Adj. #24, SS

6шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90°

3шт.

86

BN72039

Barb - 1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53882

HOSE

1/4" x 130"

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

92

BN73553

PLUG

3/4" NPT, Poly

1шт.

93

BN53665

BUSHING

1" x .75 Poly

1шт.

94

BN73681

FILTER STRAINER

Line

3шт.

94a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

94b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

96

BN53929

HOSE,7.00"

1шт.

97

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

3шт.

104

BN53810

HOSE CLAMP

T-Bolt - 13/4"

1шт.

105

BN53811

CLAMP

2" ID, T-bolt

1шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Discharge

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

BN25393

BASKET ASSY

750 Gallon Spherical

1шт.

BN69135

TANK

750 Spherical

1шт.

BN68865

FITTING

2" bulkhead

1шт.

BN98288

COVER

Man-hole (500-750 Gal. Tank)

1шт.

BN25394

PLATFORM

Deck 14GA., HRS, 11.5 x 44.0

1шт.

Not Shown

1шт.

BN25395

LOAD DECK

12 ga. HRS 10.63" x 32"

4шт.

Not Shown

1шт.

BN25396

STEP

12 ga. HRS 15-1/2" x 18"

1шт.

Not Shown

1шт.

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

2шт.

Not Shown

1шт.

BN65109

SIDE RAIL

End L.H.

1шт.

Not Shown

1шт.

BN65110

Side L.H.

1шт.

Not Shown

1шт.

BN65171

SIDE RAIL

End R.H.

1шт.

Not Shown

1шт.

BN65172

SIDE RAIL

Side R.H.

1шт.

Not Shown

1шт.

BN65202

MOUNTING PLATE

Tank R.H.

1шт.

Not Shown

1шт.

BN65203

MOUNTING PLATE

Tank L.H.

1шт.

Not Shown

1шт.

BN25398

MOUNTING PLATE

Dual Tanks

1шт.

Not Shown

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Chemical Inductor - Optional

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

Chemical Inductor - Optional

1шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

Chemical Inductor - Optional

1шт.

25

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

Chemical Inductor - Optional

1шт.

31

BN73561

FITTING

Barb - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

32

BN73564

VALVE

Ball - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

54

BN65145

FUNNEL

Chemical

1шт.

Chemical Inductor - Optional

1шт.

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Chemical Inductor - Optional

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

Chemical Inductor - Optional

1шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

2шт.

Chemical Inductor - Optional

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x W

1шт.

Chemical Inductor - Optional

1шт.

97

BN73680

FITTING

bulkhead 1" poly

1шт.

Chemical Inductor - Optional

1шт.

98

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Barb - 1", 90°

3шт.

Chemical Inductor - Optional

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

Chemical Inductor - Optional

1шт.

101

BN23475

VENTURI

1шт.

Chemical Inductor - Optional

1шт.

102

BN53765

HOSE,85.00"

1шт.

Chemical Inductor - Optional

1шт.

103

BN53910

1" x 168"

1шт.

Chemical Inductor - Optional

1шт.

Выбрано товаров: 147
