Запчасти Case IH TYLER (08-003) - LIQUID PLUMBING TYLER SPRAYER (90) BOOM Liquid Plumbing

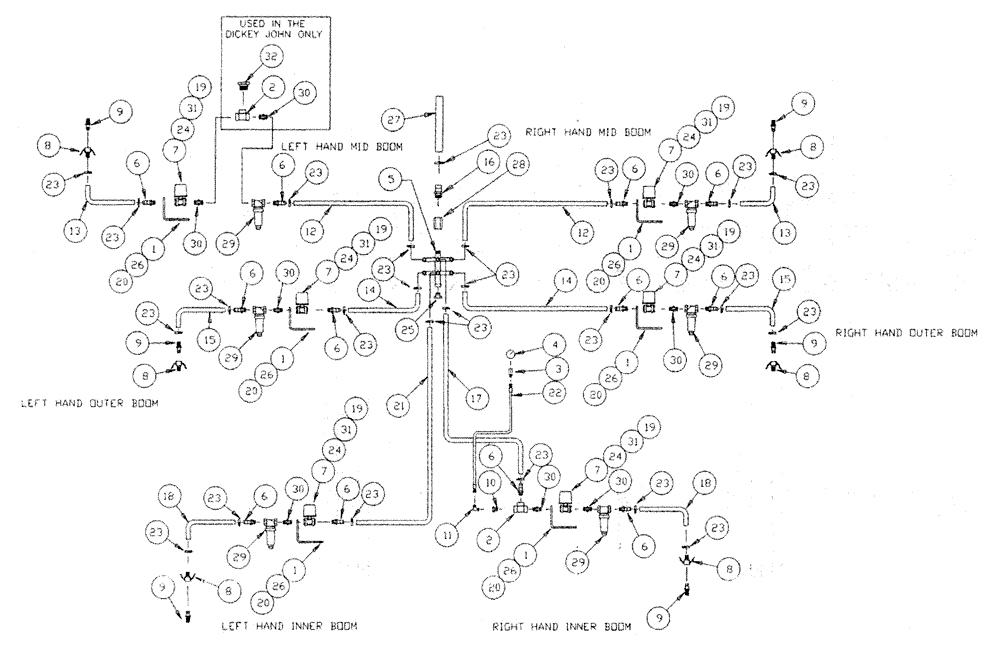

Схема запчастей Case IH TYLER - (08-003) - LIQUID PLUMBING TYLER SPRAYER (90) BOOM Liquid Plumbing
1
23
29
32
1
6
30
14
9
20
30
13
16
23
29
20
2
30
6
24
30
20
23
30
8
2
6
26
1
31
28
1
4
23
18
2
8
27
31
24
19
6
29
9
24
9
6
19
7
22
7
14
30
29
18
23
25
6
17
26
6
12
11
15
23
3
8
7
20
15
23
19
23
7
23
26
13
8
9
20
29
6
1
7
6
6
26
29
5
9
26
31
31
23
19
26
23
23
9
23
24
9
31
21
19
23
7
23
24
20
30
23
23
23
30
23
23
19
1
23
31
10
6
6
8
12

Артикул

Название

Примечание

Количество

1

BN50051

NUT,1/4"-20, USR

12шт.

2

BN73629

TEE

1" Poly Pipe

2шт.

3

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

4

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

5

BN66643

MANIFOLD

6 Port

1шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

12шт.

7

BN16055

CONNECTOR, ELEC

CONNECTOR 3 Way Shroud Packard

6шт.

8

BN53668

COUPLING

1" Female, HS SHK

6шт.

9

BN53867

CMLCK-ML(Thd)TO ML

6шт.

10

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

11

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

12

BN53746

HOSE,1.00" ID x 250.00"

EPDM

2шт.

13

BN66853

1" EPDM x 333.00"

2шт.

14

BN66854

HOSE

1" EPDM x 135.00"

2шт.

15

BN66855

HOSE

1" EPDM x 26.00"

2шт.

16

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

1-1/2 NPT x 1-1/4 HB

1шт.

17

BN66857

HOSE

1" EPDM x 15.00"

1шт.

18

BN68858

1" EPDM x 31.00"

2шт.

19

BN16057

ELEC. TERMINAL PIN,8 mm

Male Packard

18шт.

20

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

6шт.

21

BN66859

HOSE

1" EPDM x 23.00"

1шт.

22

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

23

BN75990

HOSE CLAMP

#16, Stainless Steel

25шт.

24

BN18056

Plug

18шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

26

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

12шт.

27

BN67135

HOSE

1.25 EPDM x 90.00"

1шт.

28

BN73738

COUPLING

1-1/2" Poly Pipe

1шт.

29

BN73681

FILTER STRAINER

Assy 1"-50 Mesh

6шт.

29a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

29b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

30

BN73648

NIPPLE

1" Short Poly Pipe

8шт.

31

BN53495

VALVE

PP-Ball (2-Way) ELE

6шт.

32

BN53665

BUSHING

1" x .75 Poly

1шт.

BN24224

HARNESS

Center Boom

1шт.

Not Shown

1шт.

BN53872

SEALING STRIP

#48-THD Seal 5 x 520"

1шт.

Not Shown

1шт.

BN67136

WIRE HARNESS

Booms 420"

2шт.

Not Shown

1шт.

BN67243

DECAL

Strainer Pressure (Not shown)

1шт.

Not Shown

1шт.

Выбрано товаров: 42
