Запчасти Case IH TYLER (08-002) - LIQUID PLUMBING BOOMS (75) - TYLER SPRAYER DICKEY-JOHN Liquid Plumbing

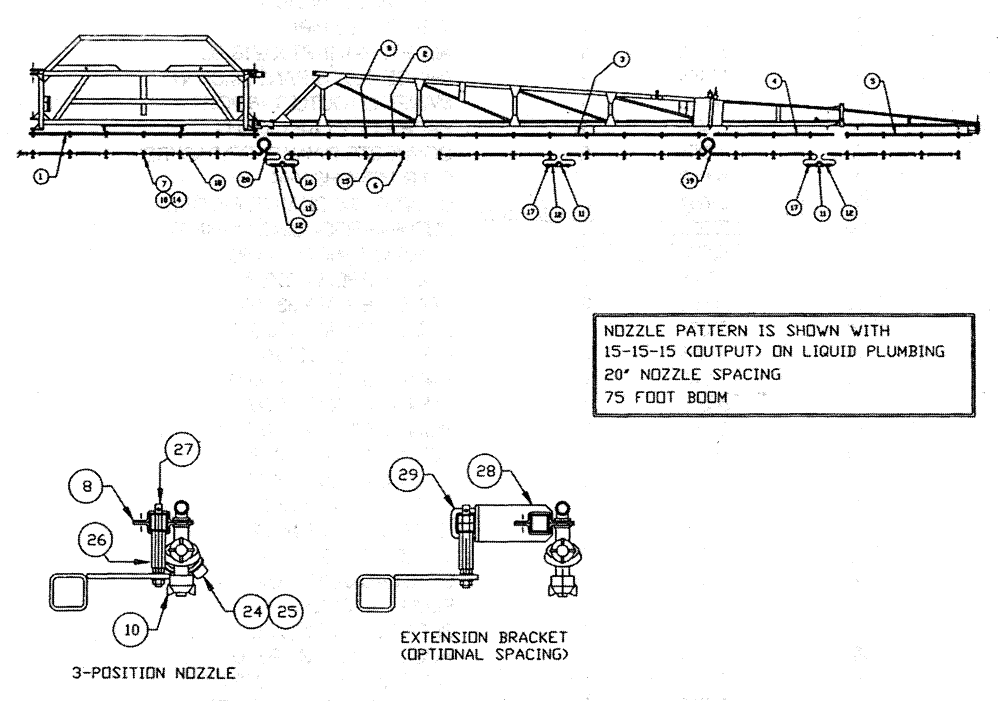

Схема запчастей Case IH TYLER - (08-002) - LIQUID PLUMBING BOOMS (75) - TYLER SPRAYER DICKEY-JOHN Liquid Plumbing
3
4
17
28
10
18
10
16
17
14
10
15
19
26
5
20
12
6
24
8
27
15
3
1
2
7
12
11
25
29
12

Артикул

Название

Примечание

Количество

1

BN24486

TUBE

1" Sq x 124"

1шт.

2

BN24477

TUBE

1" Sq x 81.5"

2шт.

3

BN24478

TUBE

1" Sq x 155"

2шт.

4

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

2шт.

5

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

2шт.

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

22шт.

BN71006

COTTER PIN

1/8", #11

22шт.

6

BN74618

Shank - Single 3/4"

6шт.

7

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

39шт.

8

BN74448

CLAMP

1" square tubing

45шт.

10

BN74619

CAP

with gasket tee jet black

45шт.

11

BN73629

TEE

1" Poly Pipe

6шт.

12

BN53666

FITTING

Barb -1" x 3/4"

12шт.

14

BN74472

GASKET

Nozzle

45шт.

15

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

96шт.

16

BN53843

HOSE,0.75" ID x 12.50"

2шт.

17

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

8шт.

18

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

34шт.

19

BN53819

HOSE

EPDM, 3/4" ID x 66"

2шт.

20

BN53749

HOSE,0.75" ID x 36.00"

2шт.

28

BN25929

MOUNTING PLATE

Extension

2шт.

Optional Spacing

1шт.

29

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

2шт.

Optional Spacing

1шт.

24

BN74621

NOZZLE

3-Way Double 3/4" SHA

39шт.

25

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

6шт.

26

BN25939

SPACER

2" (3-Position Nozzles)

22шт.

27

BN25938

PIN

3/8" x 4.5", 3-Position Nozzles

22шт.

BN24059

Bracket - Guide

1шт.

Not Shown

1шт.

Выбрано товаров: 30
