Запчасти Case IH TYLER (05-011) - HYDROSTATIC PUMP - FILTER ASSEMBLY, 7-BANK VALVE Hydraulic Plumbing

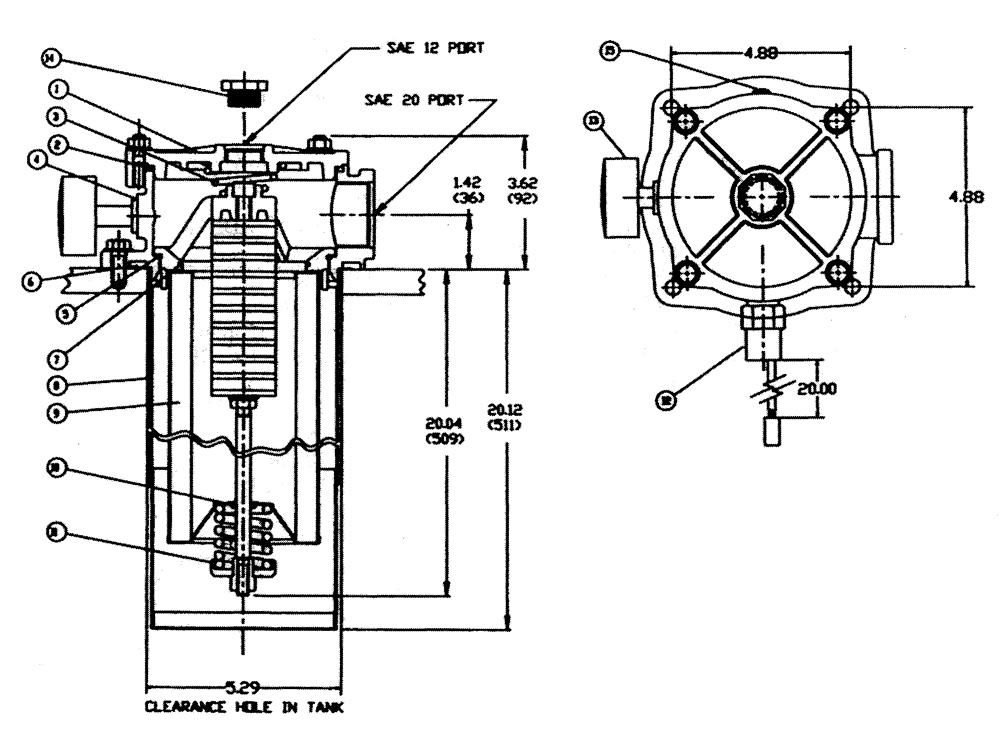

Схема запчастей Case IH TYLER - (05-011) - HYDROSTATIC PUMP - FILTER ASSEMBLY, 7-BANK VALVE Hydraulic Plumbing
9
1
4
14
2
11
12
10
7
6
3
8
13
15
5

Артикул

Название

Примечание

Количество

1

BN54259

COVER

Filter Assembly

1шт.

2

BN54260

O-RING

Buna

1шт.

3

BN54261

COIL SPRING

conical

1шт.

4

BN54262

HEAD

1шт.

5

BN54263

O-RING

insert, Buna

1шт.

6

BN54264

GASKET

Tank, Buna

1шт.

7

BN54265

SEAL

By-Pass, Buna

1шт.

8

BN54266

FILTER

1шт.

9

BN53953

FILTER

Element

1шт.

10

BN54267

O-RING

element

1шт.

11

BN54268

By-Pass

1шт.

12

BN53955

PRESSURE SWITCH

Electrical

1шт.

13

BN53954

GAUGE

Pressure

1шт.

14

BN54270

PLUG

External, W/O-Ring #12

1шт.

15

BN54271

PLUG

Internal Hex 1/4 NPT

1шт.

BN54269

SEAL KIT

1шт.

Выбрано товаров: 16
