Запчасти Case IH TYLER (05-008) - HYDRAULIC PLUMBING - WHEEL MOTORS TYLER SPRAYER Hydraulic Plumbing

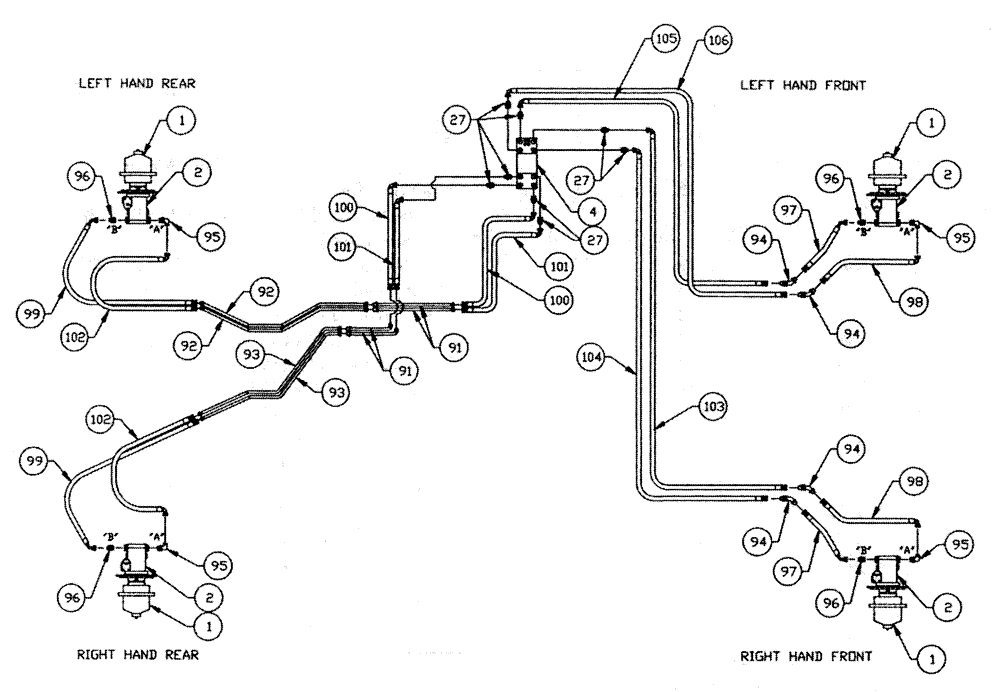

Схема запчастей Case IH TYLER - (05-008) - HYDRAULIC PLUMBING - WHEEL MOTORS TYLER SPRAYER Hydraulic Plumbing
1
94
97
101
2
91
92
102
4
1
105
96
27
1
93
96
27
100
1
104
95
106
99
98
96
94
94
96
93
27
97
94
95
2
95
98
102
92
100
99
103
2
91
2
95
101

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Planetary-Front Model #7

2шт.

See Fig. 04-003 for Seals Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Planetary-Rear w/Brake Model #7

2шт.

See Fig. 04-003 for Seals Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

"A" Port is Front, "B" Port is Rear

1шт.

Use Texaco #1912 Grease on Splines of Wheel Motor

1шт.

BN54215R

REMAN-HYD MOTOR

TYLER - SPRAYER (1991-1992) - 1/91-2/92

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Between Hub & Wheel Motor

4шт.

BN98186

SEAL

lip, shaft

4шт.

87268405

SNAP RING

4шт.

4

NSS

NOT SOLD SEPARAT

Manifold

1шт.

Top view solenoids down and left. Refer to print #29892 for port letter stamping on manifold

1шт.

See Fig. 02-005 For Seal & Repair Parts

1шт.

27,

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

BN98016

O-RING

SAE-16 Buna N

8шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94..

BN53959

ELBOW

45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

97

BN55229

HOSE

3/4" x 19" (High Pressure)

2шт.

98

BN55230

HOSE

3/4" x 25" (High Pressure)

2шт.

99

BN55231

HOSE,0.75" ID x 85.25"

(High Pressure)

2шт.

100

BN53891

CYLINDER

3/4" x 22" (High Pressure)

2шт.

101

BN53694

HOSE

3/4" x 27", high pressure

2шт.

102

BN55232

HOSE

3/4" x 89-1/4"" (High Pressure)

2шт.

103

BN53695

HYDRAULIC HOSE,19.05mm ID x 2997.2mm L

(High Pressure)

1шт.

104

BN53696

HYDRAULIC HOSE,19.05mm ID x 3098.8mm L

(High Pressure)

1шт.

BN24219

High Pressure Hose

2шт.

BN50940

U-BOLT

(Hose Clamp)

4шт.

105

BN55233

HYDRAULIC HOSE,0.75" ID x 124.00"

(High Pressure)

1шт.

106

BN55234

HYDRAULIC HOSE,19.05mm ID x 3251.2mm L

(High Pressure)

1шт.

Выбрано товаров: 37
