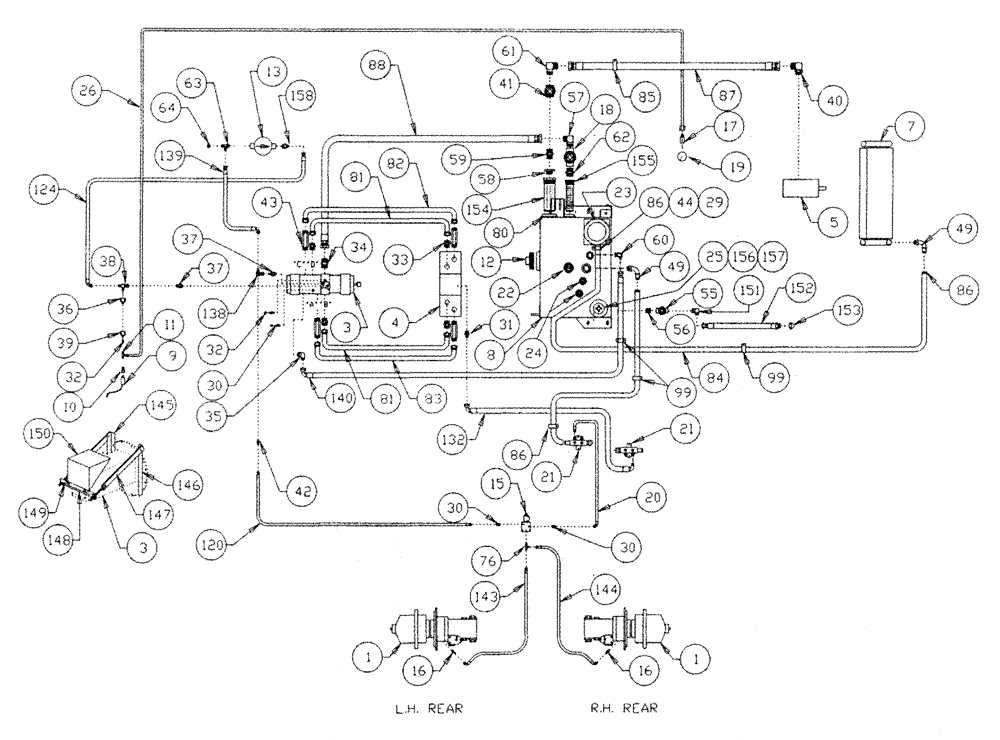

Запчасти Case IH TYLER (05-004) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP TYLER SPRAYER, 7-BANK VALVE Hydraulic Plumbing

1

BN25236

w/Integral Brake Model #8

2шт.

BN66384

w/lntegral Brake Model #7

2шт.

BN27372

CAP

hub cover

2шт.

3

BN29007

Tandem Hydrostatic

1шт.

BN98230

SEAL KIT

Seal

1шт.

BN98358

O-RING

(Auxiliary Pump Pad)

1шт.

BN98605

COVER

Servo (Front)

2шт.

BN98606

COVER

Servo, w/Port (Rear)

2шт.

BN52039

Servo Cover

20шт.

BN98514

GASKET

Servo Cover

4шт.

BN98596

O-RING KIT

O-Ring - (Shifter Control & Spool AssV)

1шт.

BN65528

REPAIR KIT

Main Relief

4шт.

BN65530

O-RING

Main Relief

4шт.

BN65532

REPAIR KIT

Charge Relief

1шт.

BN65534

O-RING

Charge Relief

1шт.

BN65537

REPAIR KIT

Shim - Charge Relief

1шт.

4

NSS

NOT SOLD SEPARAT

Manifold

1шт.

See Fig. 02-005 for Seal & Repair Parts

1шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

w/Wear Plates and seals

1шт.

7

BN24984

OIL COOLER

Hydraulic

1шт.

8

BN63771

TANK

Hyd. Oil

1шт.

BN52319

PLUG

Magnetic 1/2" NPT

1шт.

9

BN53950

SENSOR

Pressure, N.O.200 PSI

1шт.

10

BN53961

ADAPTER

Int. Pipe-37 Flare

1шт.

11

BN53960

TEE

JIC 1/4"-20 Male-Female

1шт.

12

BN72541

4" Steel

1шт.

13

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

N14232

FILTER

Element, Spin On

1шт.

BN98526

Gauge, w/Hardware

1шт.

BN54258

SENDER UNIT

1шт.

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

BN98420

SEAL KIT

Seal, for BN29955

1шт.

BN98421

CARTRIDGE

for BN29955

1шт.

BN98422

COIL

solenoid valve

1шт.

BN96423

for BN29955

1шт.

16

BN444005

FITTING

STR -7/16-20 O-Ring x7/1&20 JIC

2шт.

BN98094

O-RING

#4

2шт.

17

BN53962

FITTING

Bulkhead 1/4" NPT x 3/8"

1шт.

18

BN2006

Gate, 1-1/4 NPT

1шт.

19

BN13821

GAUGE

pressure 0-600 psi

1шт.

20

BN54236

HOSE,0.25" ID x 91.00", SAE 100R1

1шт.

21

BN63937

MANIFOLD

2шт.

22

BN65198

SWITCH

Level Assembly

1шт.

23

BN53952

FILTER

In/Tank Complete

1шт.

See Drwg. 53952-Filter Ass'y for parts

1шт.

24

BN72220

PLUG

3/4" NPT Drain

2шт.

25

BN53958

BREATHER

Spin On, Breather

1шт.

26

BN53969

HOSE

Hyd.-1/4" 100R1

1шт.

27

BN53951

THERMOSTATIC SWITCH

NC 180 Deg

1шт.

Not Shown

1шт.

28

BN21508

Suction 1" x 96"

1шт.

29

BN51970

ADAPTER

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

2шт.

BN98019

O-RING

#6

2шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

32

BN21531

NUT,7/16"-20, 37 Degree

2шт.

33

BN57223

FITTING

STR 1-5/16 12 O-Ring x 1-7/16 12 Male Flat Face

4шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

34

BN52040

ADAPTER

Fitting, OR x JIC 1-5/8-12

1шт.

BN98063

O-RING

#20

1шт.

35

BN445001

FITTING

Adapter, 90°1 1/16-12 O Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

36

BN53715

REDUCER

1-1/16"-12 JIC F x 3/4-16 JIC M

1шт.

37

BN444007

O-RING

37 Flare 12-10

2шт.

BN98062

O-RING

#10

2шт.

38

BN53573

TEE

1-1/16"-12 JIC

1шт.

39

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

2шт.

40

BN53037

90° 1-5/8-12 O-Ring x 1-7/8-12 JIC

1шт.

BN96016

#16

1шт.

41

BN51497

HYDRAULIC VALVE

Gate, 1-1/2 NPT

1шт.

42

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

1шт.

43

BN59918

STR - 1-5/16-12 O-Ring x 1-7/16-12 x 4.1 Male Flat Face

4шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

44

BN22432

FITTING

Barb Str 1" NPT x 1" Hose

1шт.

49

BN21386

FITTING

90° 1" NPT x 1" Hose

2шт.

55

BN21372

VALVE

Gate, 1" NPT

1шт.

56

BN51656

ADAPTER

1" NPT (Close)

1шт.

57

BN52318

ADAPTER

90° 1 1/4" NPT X 1 5/8" - 12 JIC

1шт.

58

BN72471

BUSHING

2" x 1 1/2"

1шт.

59

BN52034

1-1/2" NPT

1шт.

60

BN442004

FITTING

90° 3/4" NPT x 3/4-16 JIC

1шт.

61

BN52036

FITTING

Adapter, 1 1/2" NPT X 1 7/8"-12 JIC

1шт.

62

BN51952

COUPLING

male, 1-1/4"

1шт.

63

BN51536

PIPE FITTING

1-1/16"-12 O-Ring x1-1/16"-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

64

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

76

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

1шт.

BN98019

O-RING

#6

1шт.

80

BN53957

GAUGE

Sight w/Temp

1шт.

81

BN53919

HOSE

1" Hyd

2шт.

82

BN53920

HOSE

1" Hyd

1шт.

83

BN53921

HOSE

1" Hyd

1шт.

84

BN53533

Suction-1" ID x 80"

1шт.

85

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

87

BN52038

HOSE

Suction -1-1/2 x 58"

1шт.

88

BN52041

HOSE

1 1/4" X 35"

1шт.

99

BN570018

CLAMP

vinyl coated 1-7/16

3шт.

120

BN54184

HOSE

1/4" x 124"

1шт.

124

BN53579

3/4" x 36"

1шт.

132

BN53967

HOSE ASSY.

1/2" x 60"

1шт.

138

BN63548

ELBOW

90° 1-1/16-12 JIC

1шт.

139

BN53726

HOSE

3/4" x 26"

1шт.

140

BN53966

HOSE

3/4" x 80"

1шт.

143

BN54151

1/4" x 82"

1шт.

144

BN54176

HOSE

1/4" x 125"

1шт.

145

BN24180

L.H.

1шт.

146

BN24181

R.H.

1шт.

147

BN25717

SUPPORT

Brace

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

148

BN25725

ANGLE

3/16 1.5 x 1.5 x 13

1шт.

149

BN53802

WASHER

Beveled, 1/2"

4шт.

BN50072

NUT

Hex, 1/2"-13, G5, Std

2шт.

86992215

LOCK NUT,1/2"-13, GC

2шт.

150

BN24295

SHIELD

1шт.

151

BN53809

ELBOW

90° 1" NPT x 1-1/16-12 JIC

1шт.

152

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

Assembly

1шт.

153

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

154

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.

155

BN24148

FILTER STRAINER

25 gpm, 100 Mesh

1шт.

156

BN54257

Hose-(Bottom of Tank) 1" x 30"

1шт.

157

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

155

BN444001

FITTING

1-1/16-12 x1-1/16-12 JIC

1шт.

159

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

BN98019

O-RING

#6

2шт.
