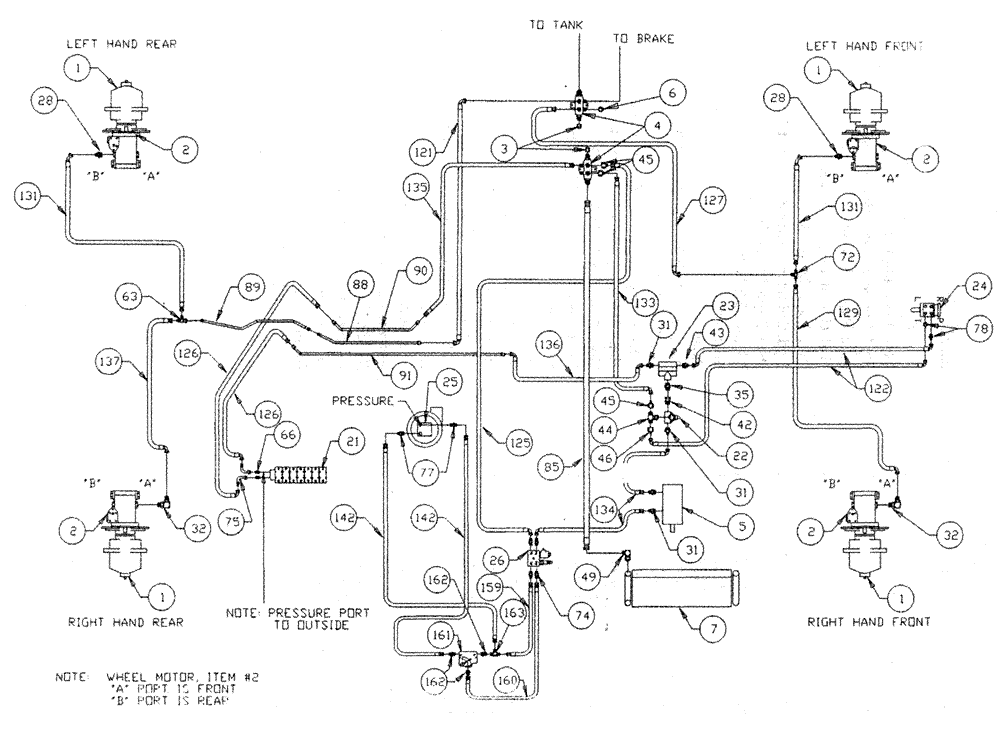

Запчасти Case IH TYLER (05-001) - HYDRAULIC PLUMBING - BASIC UNIT TYLER SPRAYER Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Planetary - Front Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Planetary - Rear w/Integral Brake Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

TYLER - SPRAYER (1991-1992) - 1/91-2/92

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Between Hub & Wheel Motor

1шт.

BN96186

Shaft, for 54215

4шт.

3

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

2шт.

4

BN63937

MANIFOLD

2шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

Repair, w/Wear Plates & Seals (90' Boom)

1шт.

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

Repair- 90'

1шт.

6

BN22431

CROWN NUT,3/4"-16, 37 Degree

1шт.

7

NSS

NOT SOLD SEPARAT

Hyd Oil

1шт.

See Fig. 05-004

1шт.

21

NSS

NOT SOLD SEPARAT

7 Bank

1шт.

See Fig. 06-022 for Seals & Repair Parts

1шт.

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

22

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

O-Ring Port

1шт.

23

BN29237

VALVE, PRESSURE RELI

EF Priority, 4.5 Gallons @ 150

1шт.

24

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

BN98233

SEAL KIT

Seal, for 29233

1шт.

25

NSS

NOT SOLD SEPARAT

Sprayer

1шт.

See Fig. 08-008 for Seals & Repair Parts

1шт.

26

BN29970

MANIFOLD

Solenoid & Relief Valve

1шт.

BN95962

KIT seal

1шт.

BN95744

CARTRIDGE

For 29970

1шт.

BN95745

COIL

solenoid valve

1шт.

BN98607

VALVE PRESSURE RELIE

For 22970 (2000 psi)

1шт.

28

BN51489

FITTING

STR - 1-1/16-12 O-Ring x 3/4 NPT

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

29

BN51518

FITTING

STR - 3/4 NPT x 3/4-16 JIC

1шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

5шт.

BN98017

O-RING

SAE-12 Buna N

5шт.

32

BN445006

FITTING

90 Deg O-Ring

2шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

35

BN444001

FITTING

STR- 1-1/16-12 O-Ring x 1-1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

42

BN57224

FITTING

STR - 1-1/16-12 O-Ring x 1-1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

43

BN57225

FITTING

STR. - 1-1/16-12 O-Ring x 9/16-18 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

44

BN446032

TEE

1-1/16-12 O-Ring x 1-1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

45

BN53715

REDUCER

1-1/16"-12 Female JIC x 3/4-16 Male JIC

1шт.

46

BN53716

FITTING

1-1/16-12 Female JIC x 9/16-18 Male JIC

1шт.

49

BN21386

FITTING

90° 1" NPT x 1" Hose

1шт.

63

BN53452

TEE

3/4"-16 JIC

1шт.

66

BN60440

ADAPTER

STR- 9/16-18 O-Ring x 3/4-16 JIC

2шт.

BN98019

O-RING

#6

2шт.

72

BN22159

TEE

3/4-16 37°

1шт.

74

BN444004

FITTING

3/4-16 O-Ring x 3/4-16 JIC

4шт.

BN98018

O-RING

#8

4шт.

75

BN53707

FITTING

90° 3/4-16 JIC

2шт.

77

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

78

BN57226

ADAPTER

3/4-16 O-Ring x 9/16-18 JIC

2шт.

BN98018

O-RING

#8

2шт.

85

BN21532

HOSE,1.00" ID x 54.00", SAE 100R3

Suction

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

89

BN65102

TUBE

steel, 1/2"

1шт.

90

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

91

BN65101

TUBE

steel, 1/2"

1шт.

122

BN54173

HOSE

- 3/8" x 80"

2шт.

125

BN53968

HOSE

1/2" x 20"

1шт.

126

BN53818

HOSE

1/2" ID x 66" 100R2

2шт.

127

BN54162

1/2" x 64"

1шт.

128

BN54163

HOSE,0.50" ID x 28.00", SAE 100R2

2шт.

129

BN67439

HOSE

1/2"x 116"

1шт.

130

BN54235

HOSE,12.7mm ID x 2819.4mm L

1/2" x 111"

1шт.

133

BN54170

HOSE

1/2" x 74"

1шт.

134

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

135

BN53970

1/2" x12"

1шт.

136

BN54186

HOSE

1/2" x 30"

1шт.

137

BN55185

HOSE

1/2" x 77"

2шт.

142

BN54238

HOSE

1/2" x 42", 100R2

2шт.

159

BN53501

HOSE,0.50" ID x 30.00", SAE 100R2

(500 Gal. Tank)

1шт.

BN53728

HOSE

1/2" x 56" (700 S.S. & 750 Ellip)

1шт.

BN55327

HOSE

1/2" x 26" (750 Sph.)

1шт.

160

BN55327

HOSE

1/2" x 26" (500 Gal. Tank)

1шт.

BN55328

1/2" x 39" (700 S.S.)

1шт.

BN55326

HOSE

1/2" x 16" (750 Sph.)

1шт.

BN55331

HOSE

1/2" x 50" (750 Ellip)

1шт.

161

BN65468

REGULATOR

Flow

1шт.

162

BN444008

FITTING

37° Flare 10

3шт.

163

BN55452

JIC 3/4 - 16 Male - Female

1шт.
