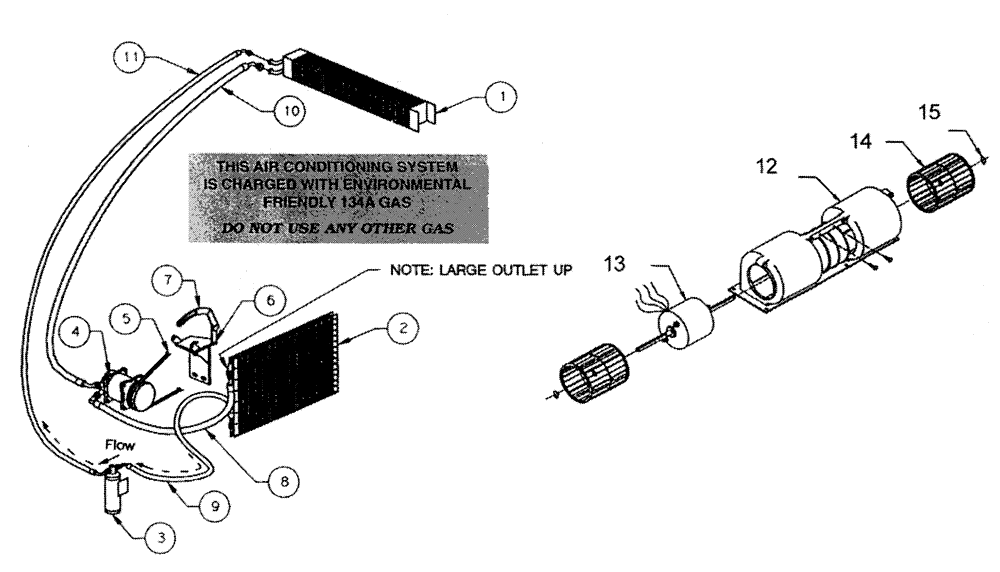

Запчасти Case IH TYLER (01-005) - AIR CONDITIONER Cab Interior

1

BN98106

EVAPORATOR

1шт.

2

BN98191

COIL

Condenser

1шт.

3

BN98192

RECEIVER-DRYER

1шт.

4

BN98636

COMPRESSOR

1шт.

5

BN98634

BELT

1шт.

6

BN98193

MOUNTING PLATE

Bracket

1шт.

7

BN98194

BRACKET

1шт.

8

BN98637

HOSE

13/32" X 31.5" (High Pressure)

1шт.

9

BN98639

HOSE

5/16" X 28" (High Pressure)

1шт.

10

BN98641

HOSE

1/2" X 196.25" (Low Pressure)

1шт.

11

BN98642

HOSE

5/16" X 194.25" (High Pressure)

1шт.

12

BN67044

HOUSING

Blower

1шт.

13

BN98564

MOTOR

12V 5/16 Dbl. Shaft

1шт.

14

BN98722

FAN

2шт.

15

BN98565

RETAINER

2шт.

BN67045

BLOWER

1шт.

BN25982

AC Pulley

1шт.

Not Shown

1шт.
