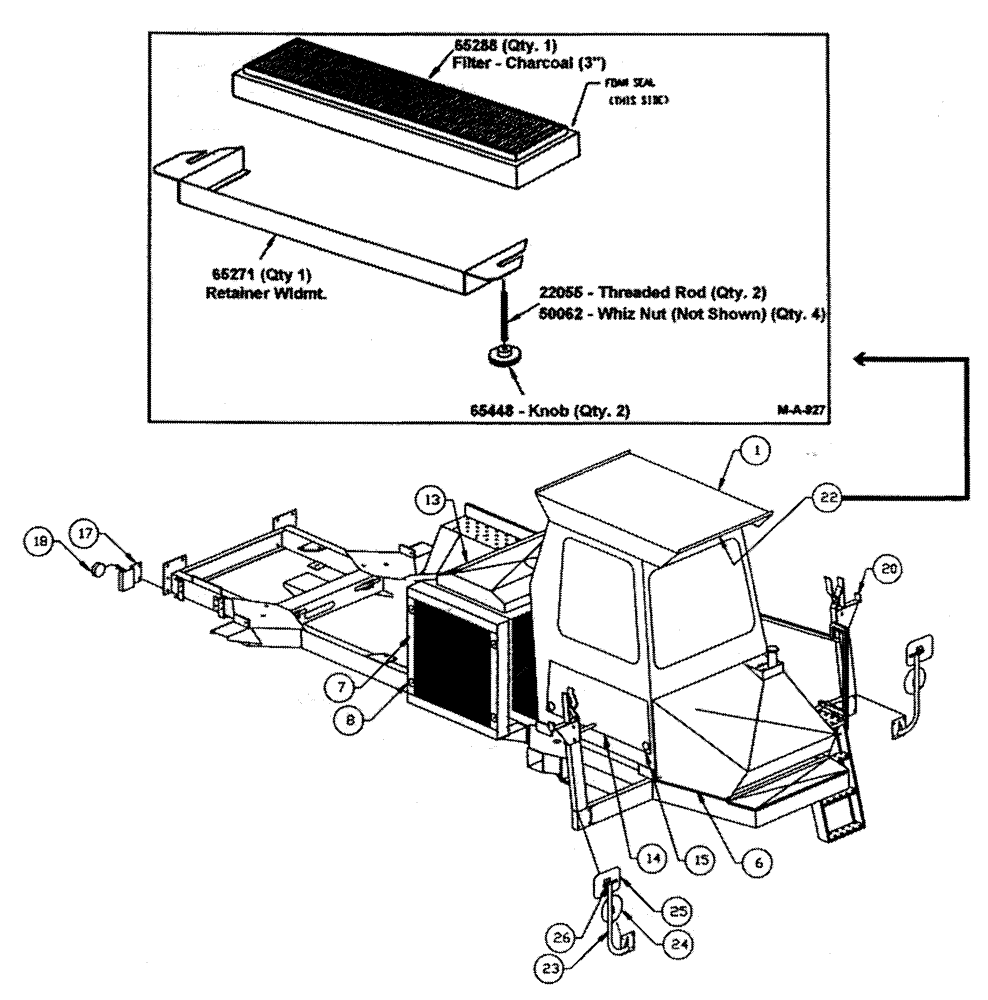

Запчасти Case IH TYLER (01-001) - CAB Cab Interior

1

BN29102

Complete

1шт.

6

BN29300

FUEL TANK

1шт.

BN27530

CAP

Gas, Vented

1шт.

BN29308

SENDER UNIT

Fuel Tank

1шт.

BN29631

Fuel, 3/8"ID x 108"

1шт.

BN29632

Return Fuel, 1/4" IDx 120"

1шт.

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

BN52303

FITTING

3/8" NPT x 1/4" 90°

1шт.

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

BN76094

HOSE CLAMP

SS #M4

4шт.

BN94071

VALVE

Ball, 1/4" NPT Bronze

1шт.

7

BN25989

SCREEN

Screen

1шт.

BN63643

1шт.

Not Shown

1шт.

BN25827

Screen - R.H.

1шт.

BN25828

MOUNTING PLATE

Screen - L.H.

1шт.

BN65195

Foam

1шт.

Not Shown

1шт.

8

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

13

BN25297

ENGINE HOOD

1шт.

BN29552

RUBBER MOUNTING

W/.25-20 studs

2шт.

14

BN29111

PANEL

1шт.

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

BN29963

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 39"

1шт.

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

1шт.

BN29497

Fuse Holder

1шт.

BN29907

Edge Guard (Hole in Floor)

1шт.

15

BN29392

KNOB

3" With 3/8"-16 Female Thread

2шт.

17

BN29639

BRACKET, SUPPORTING

10 ga HRS 6" x 12"

2шт.

18

BN325828

TAIL LAMP

Red

2шт.

BN29972

LENS

Red

2шт.

20

BN24464

CRADLE

LH

1шт.

BN24465

CRADLE

RH

1шт.

21

BN98105

W/R.H. Filter Cap

1шт.

Not Shown

1шт.

BN98232

CAP

Radiator

1шт.

Not Shown

1шт.

22

NSS

NOT SOLD SEPARAT

W/Retainer

1шт.

BN65271

RETAINER

Filter

1шт.

BN65448

KNOB

3/8"-16 (F)

1шт.

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

1шт.

BN65288

FILTER

Air (Charcoal)

1шт.

23

BN63857

ARM

Mirror

2шт.

24

BN63850

MIRROR

Convex

2шт.

25

BN63851

MIRROR

7-1/2 X 10-1/2

2шт.

25

BN306477

CLAMP

Assembly, Mirror

2шт.
